SLPP0230
Log-Periodic Antenna
Introducing the SLPP-0230, a stacked Log Periodic Dipole Antenna specifically designed for EMC measurements, operating from 200 MHz up to 3 GHz. Integrating two conventional LPDA structures, this model retains a flat gain and low SWR, with a crucial gain improvement of 2.5 dB, vital for immunity testing where maximum field strength and uniform field distribution are essential. The SLPP-0230 ensures an optimized E-plane and H-plane beamwidth, providing uniform illumination of the Equipment under Test (EuT) while minimizing ground reflection influences. Its robust design comfortably handles high power applications and is easily dismantled for compact storage. Ideal for rigorous EMC testing environments, the SLPP-0230 enhances performance where it counts.
Availability: Most products are on stock. Please contact us for more information or large quantity orders.
Features and Specifications
Technical Performance
- High gain
- Wide bandwidth
- Low return loss
- Individual calibration
- Suitable for EMC/EMI applications
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- High quality 7/16 coaxial connector
Product Packaging Includes
- Linear polarized log-periodic antenna for receiving and transmitting applications
Product Parameters
Product identification
- Product Name SLPP0230
- Product Category Log-Periodic Antenna
Electrical specifications
- Frequency Range 200 MHz – 3 GHz
- VSWR (max.) 1.8
- VSWR (avg.) 1.3
- Impedance 50 Ohm
- Connector 7/16 (female)
- Power (CW / Peak) 1000 W / 2000 W
- Antenna Factor 10 – 30 dB/m
- Polarization Linear
Physical specifications
- Width 1012 mm (39.843 in)
- Height 876 mm (34.488 in)
- Depth 1052 mm (41.417 in)
- Weight 5.2 kg (11.464 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings
Antenna
Parameters and Performance

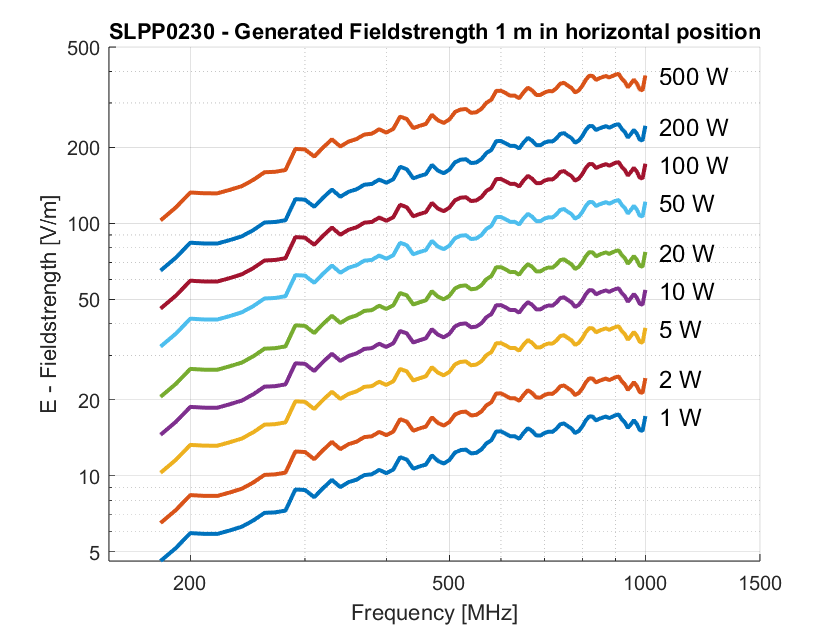

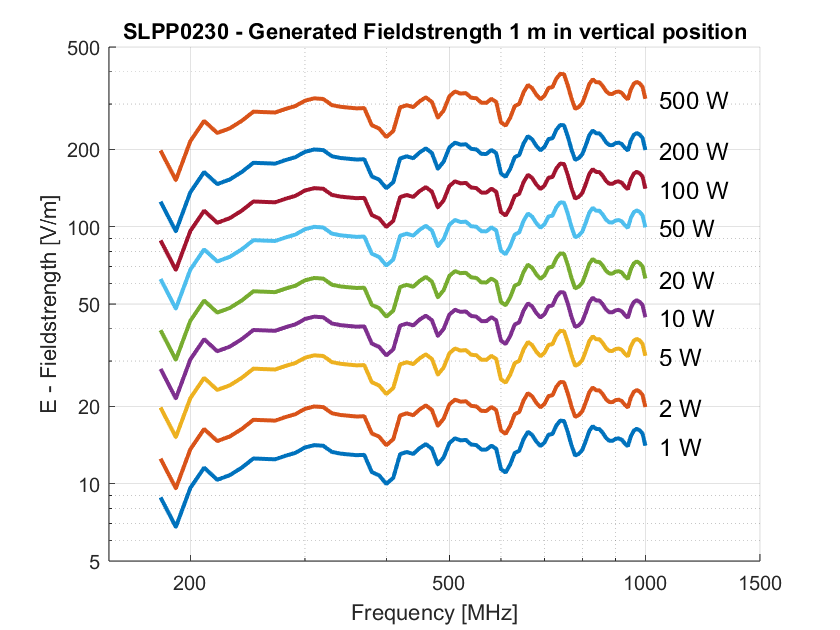

Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Radiation Patterns
0.2 GHz
0.4 GHz
0.6 GHz
0.8 GHz
1 GHz
1.2 GHz
1.5 GHz
1.8 GHz
2.1 GHz
2.4 GHz
2.7 GHz
3 GHz
Packaging and Accessories
What's in a box
- SLPP0230 Antenna
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
- Custom calibration data
