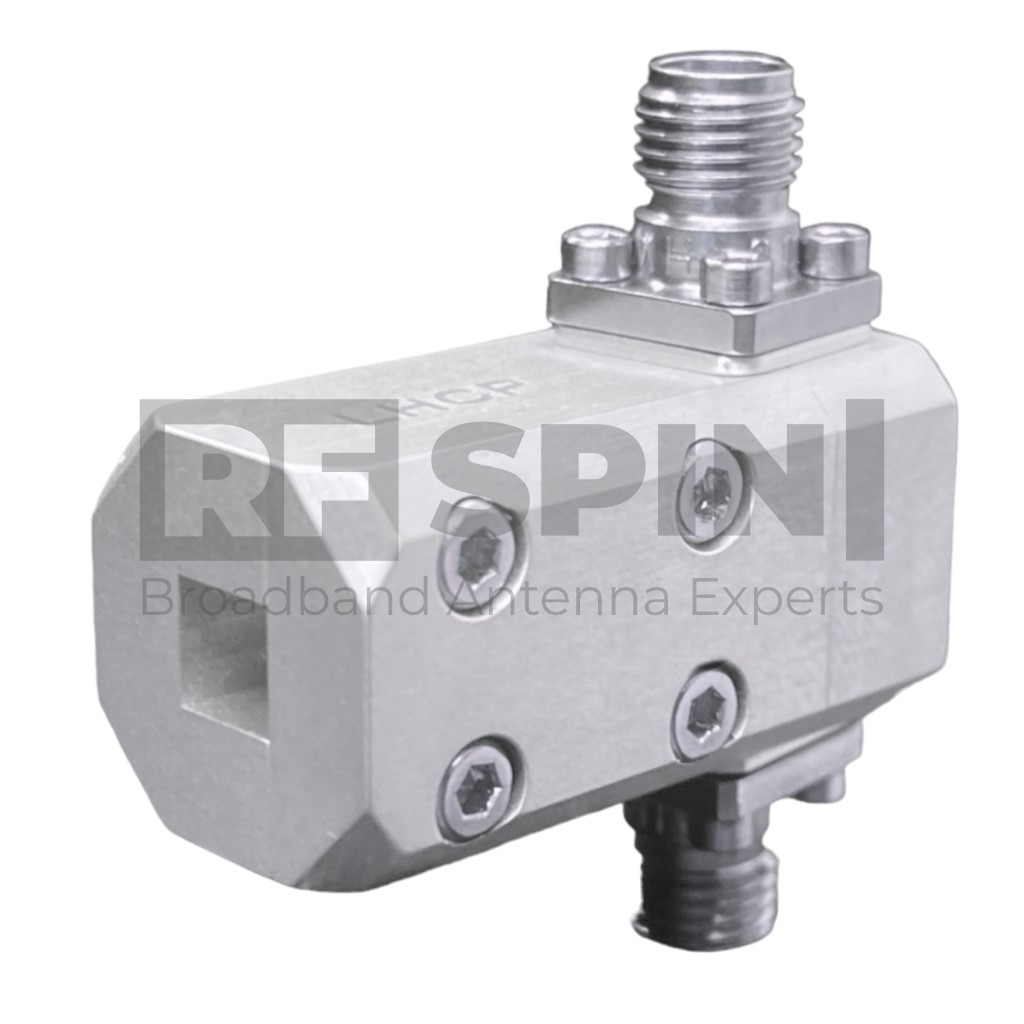

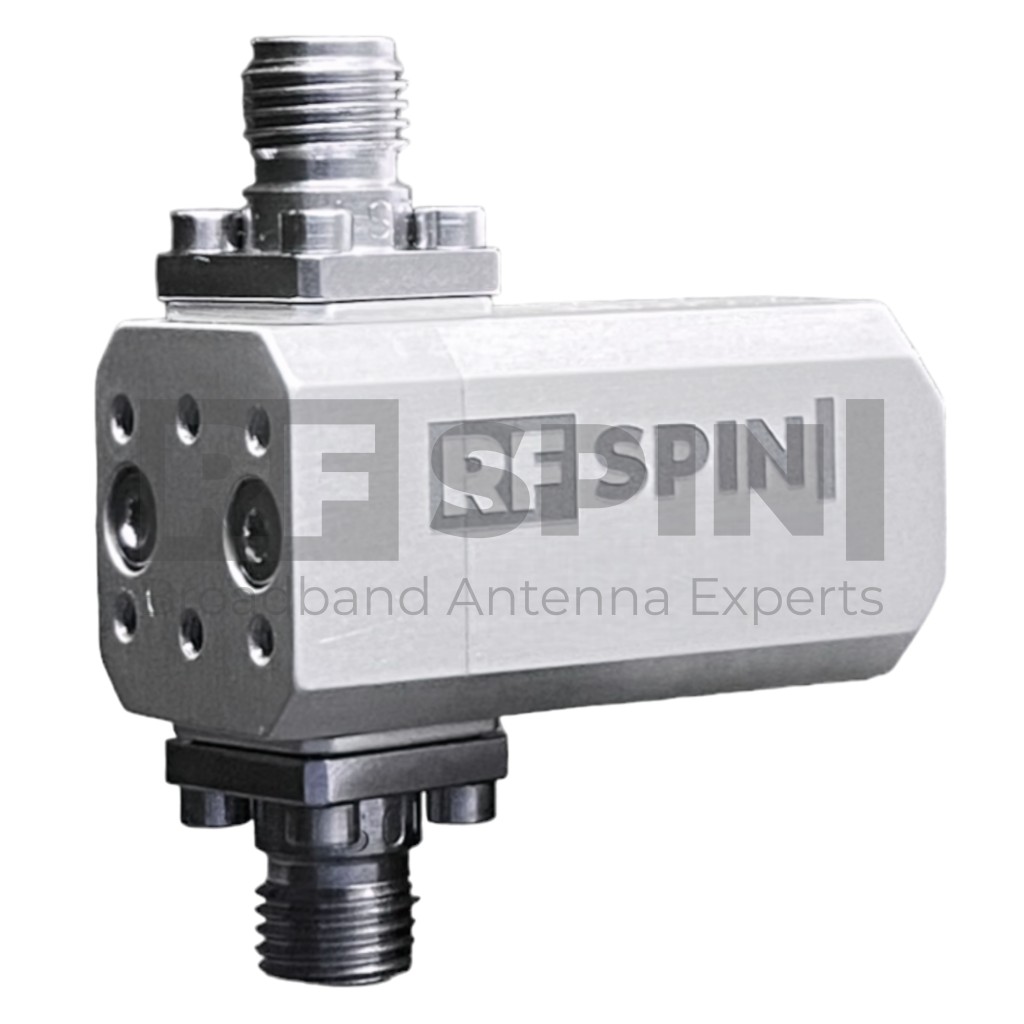

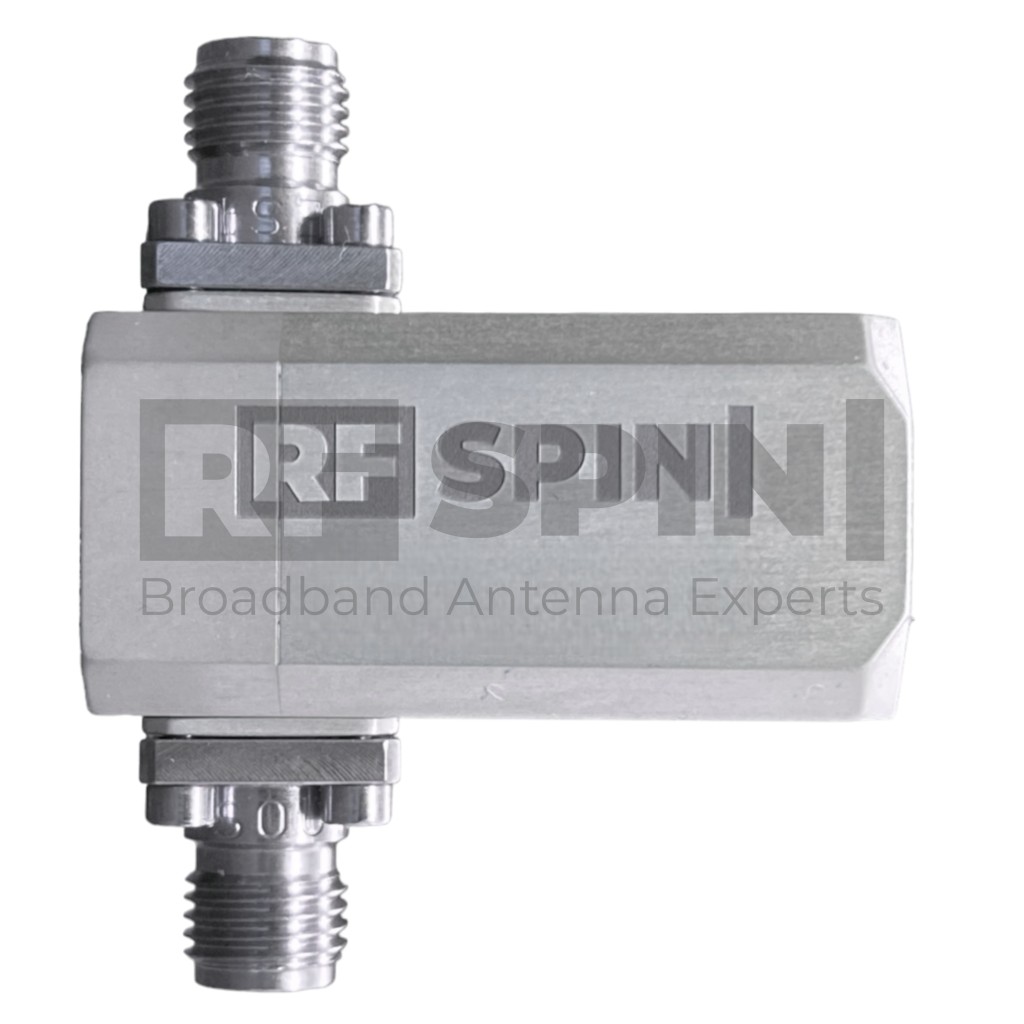

SH3743-07
Circularly Polarized Dual Port Antenna
online calibration protocol & dataset available
Maximize your flexibility with this advanced dual-polarized circular feed antenna. This antenna feed offers the ability to generate both left and right circular polarization, providing ultimate control over your radiated signal, making it ideal as a parabolic feed or for integration with drone systems.
Features and Specifications
Technical Performance
- Low return loss
- Individual calibration
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- High quality 2.92mm type coaxial connector
- Manufactured using a high grade aluminum alloy
- Extremely durable
Product Packaging Includes
- Circular polarized feed
Product Parameters
Product identification
- Product Name SH3743-07
- Product Category Circularly Polarized Dual Port Antenna
Electrical specifications
- Frequency Range 37 GHz – 43 GHz
- VSWR (max.) 1.4
- VSWR (avg.) 1.2
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 15 W / 25 W
- Antenna Factor 55 – 56 dB/m
- Port Isolation -15 dB
- Polarization Circular
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Parameters and Performance
Typical parameters

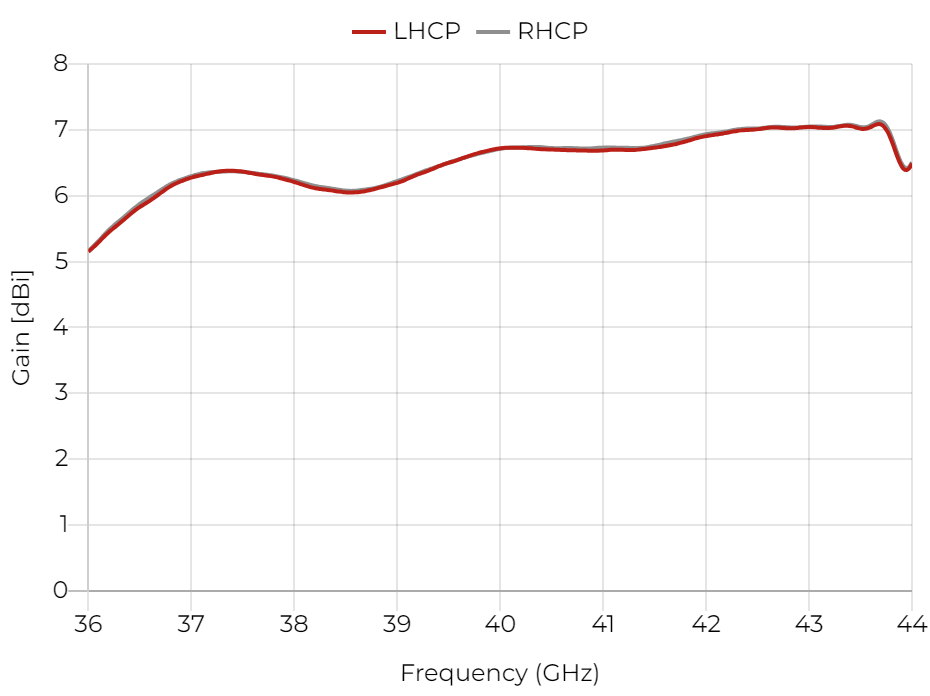

VSWR
Gain
Antenna Factor

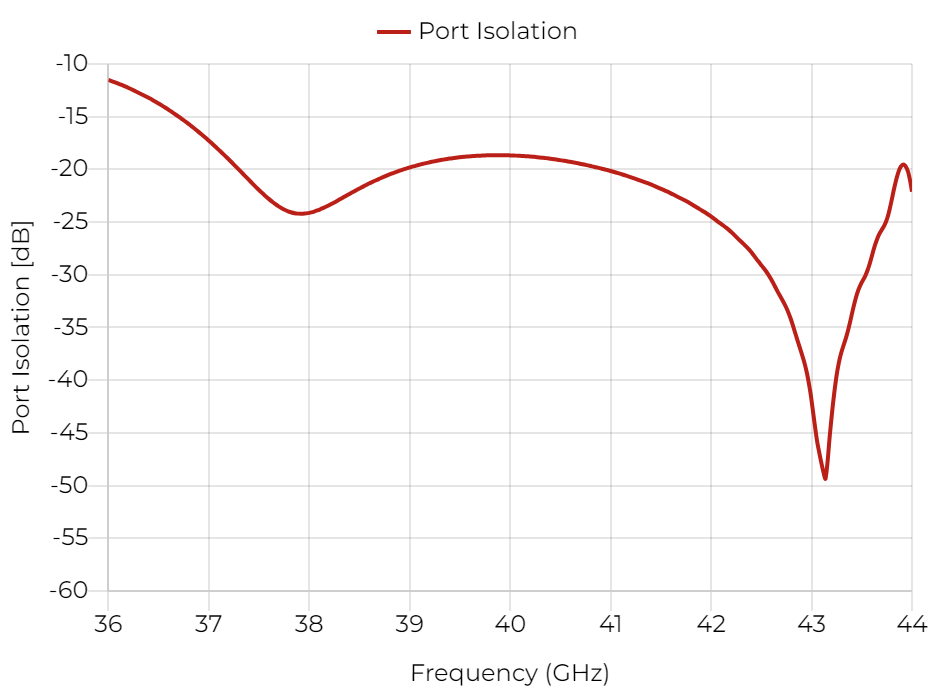

Port Isolation

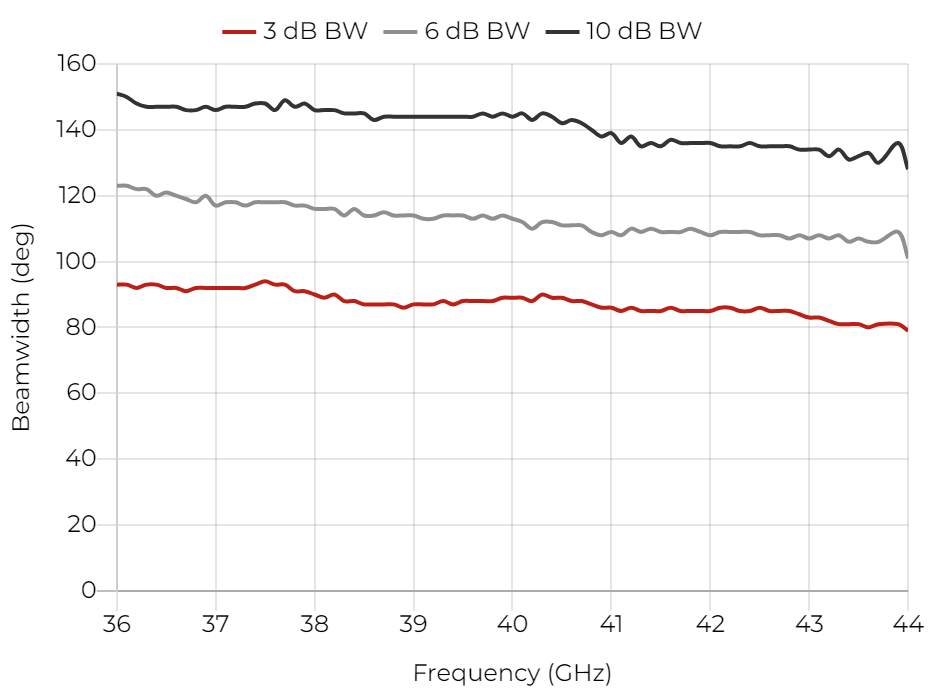

Beamwidth

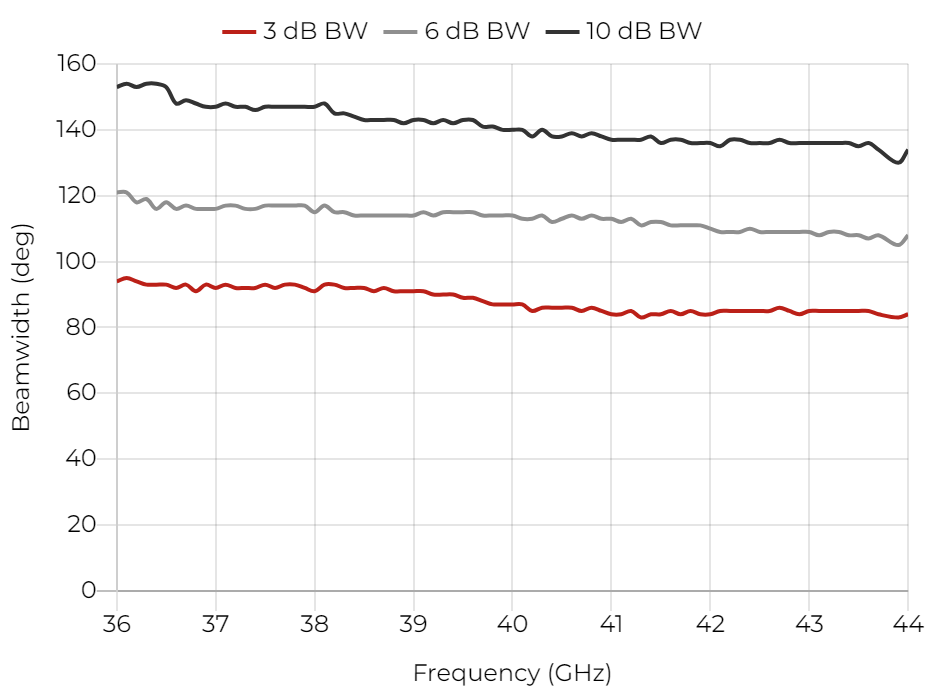

Port A, E plane

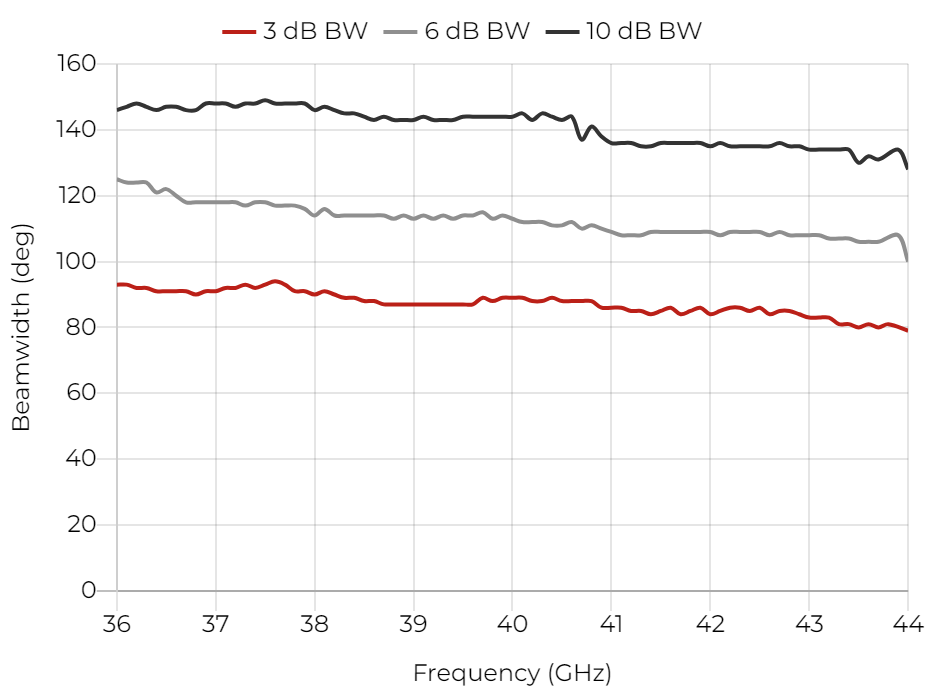

Port A, H plane

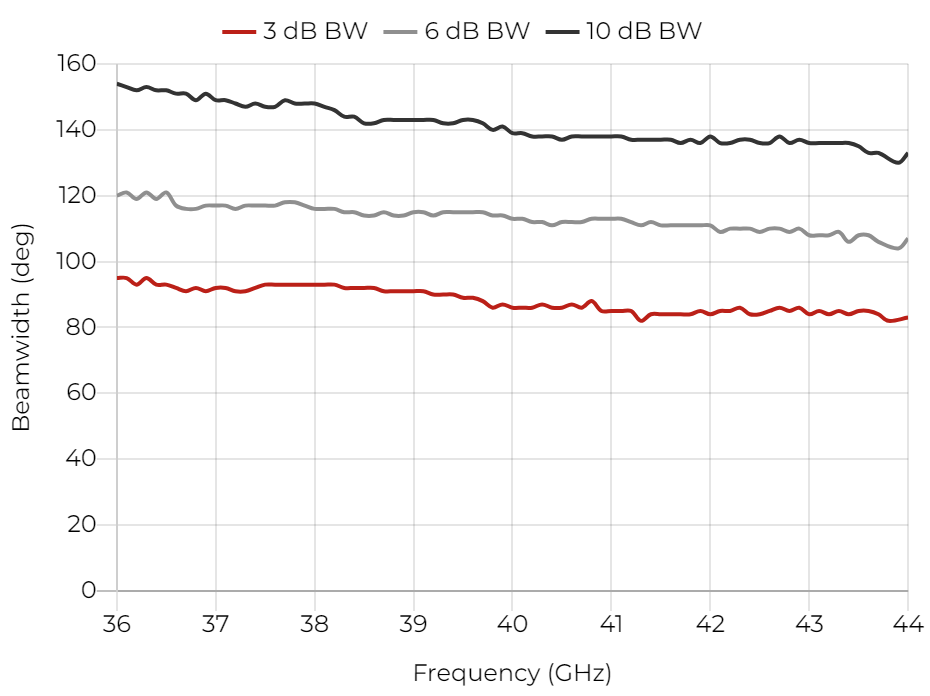

Port B, E plane
Port B, H plane
Packaging and Accessories
What's in a box
- SH3743-07 Antenna
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
- Custom calibration data
- Radome waterproof enclosure
