        Broadband Antenna Solutions

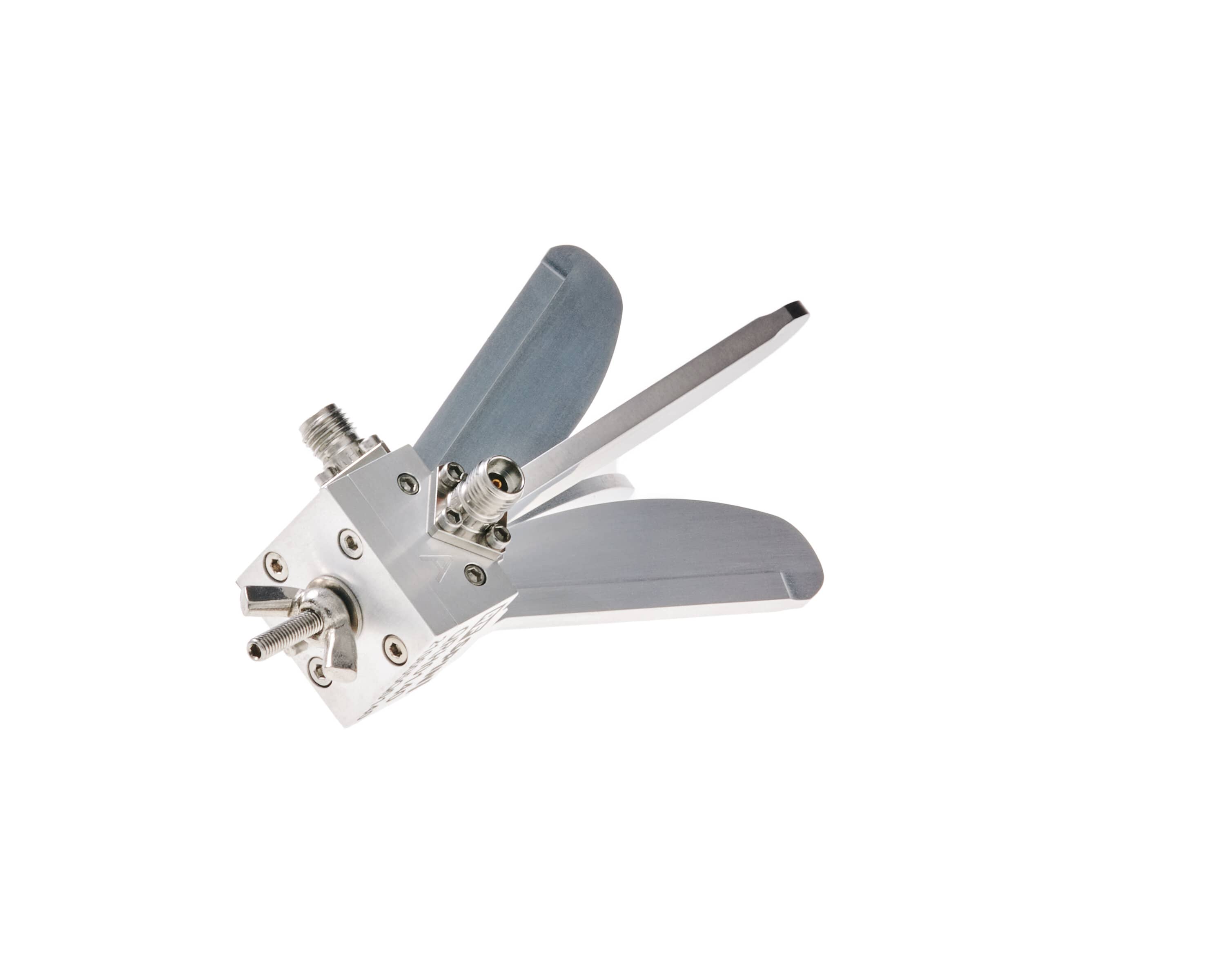

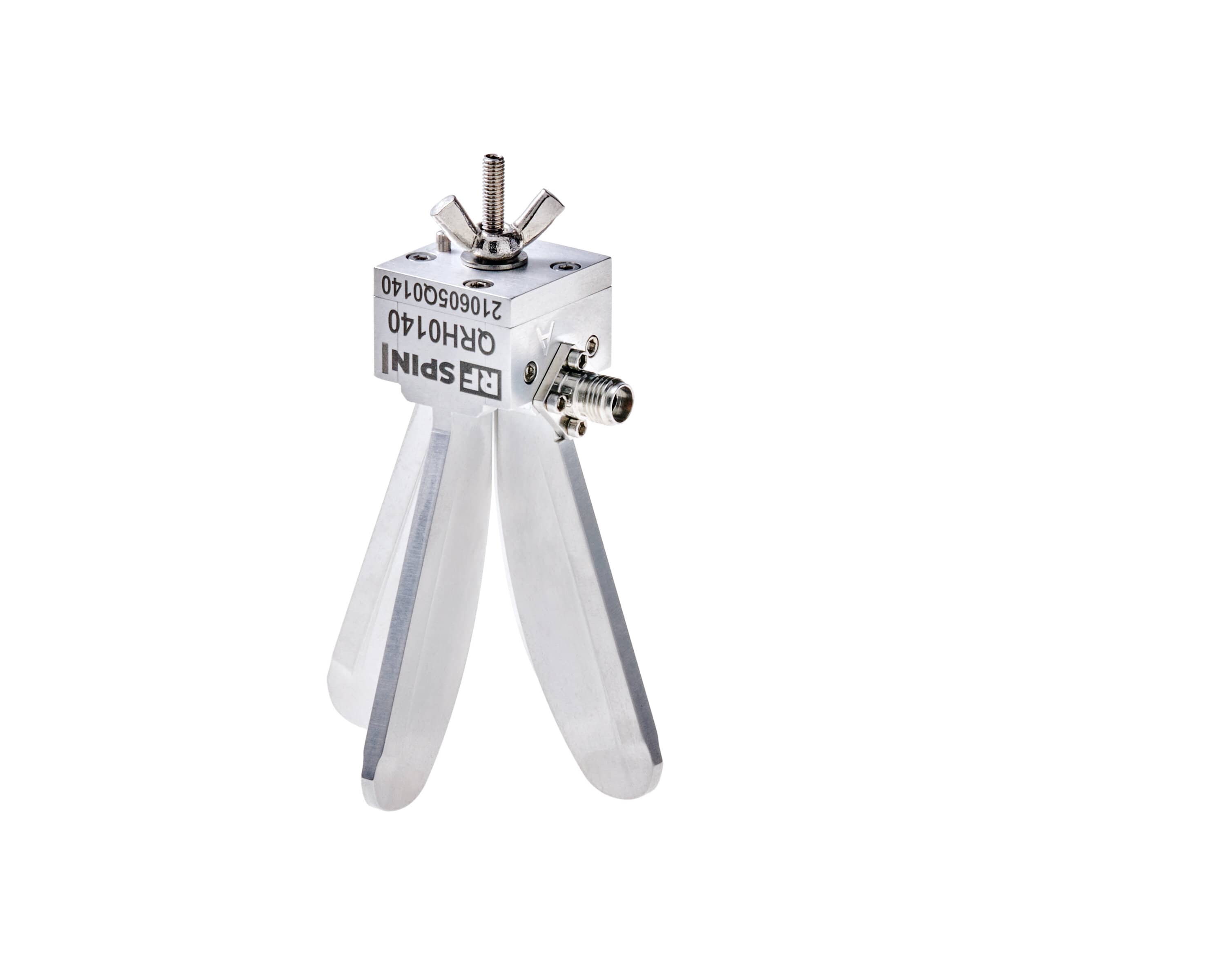

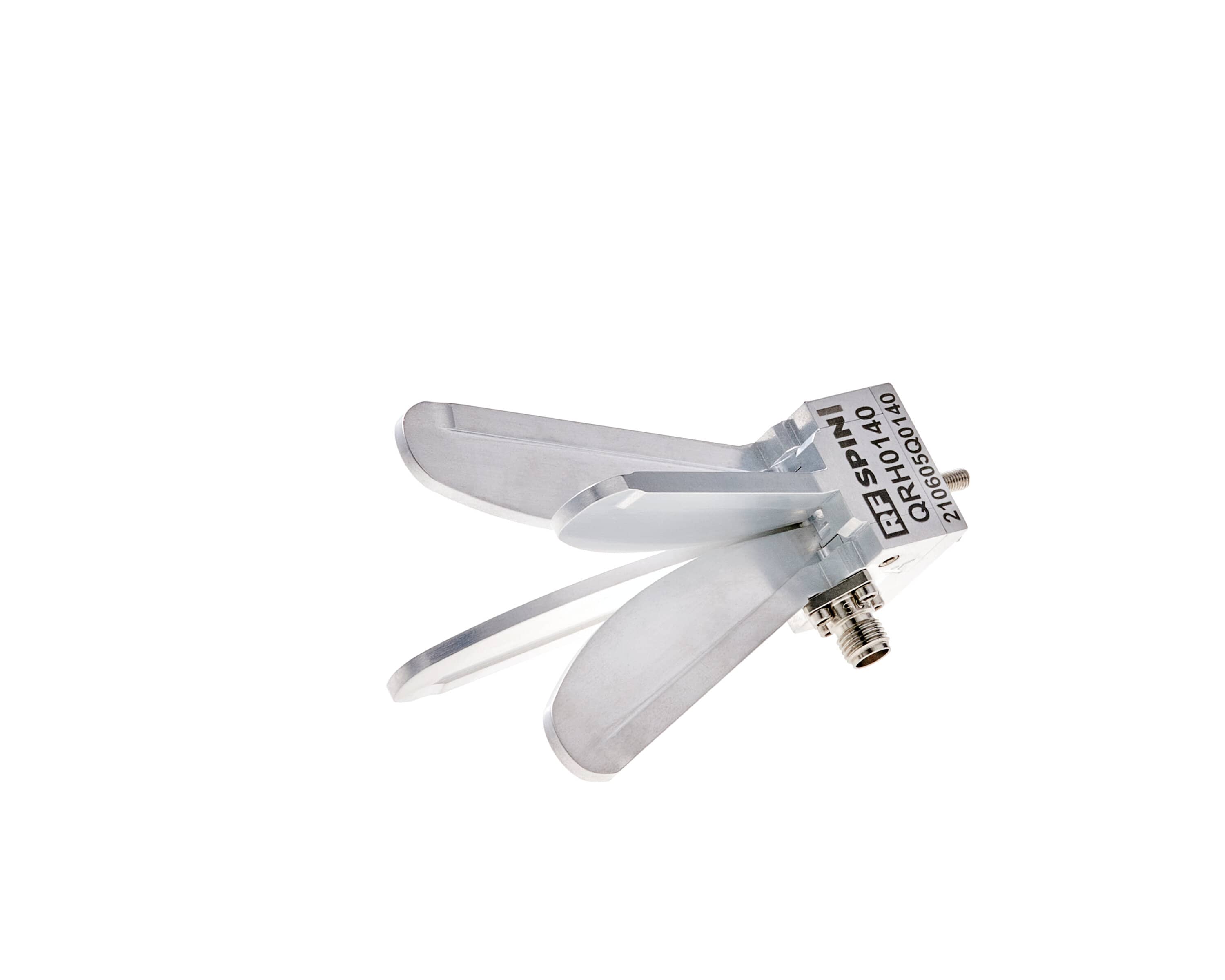

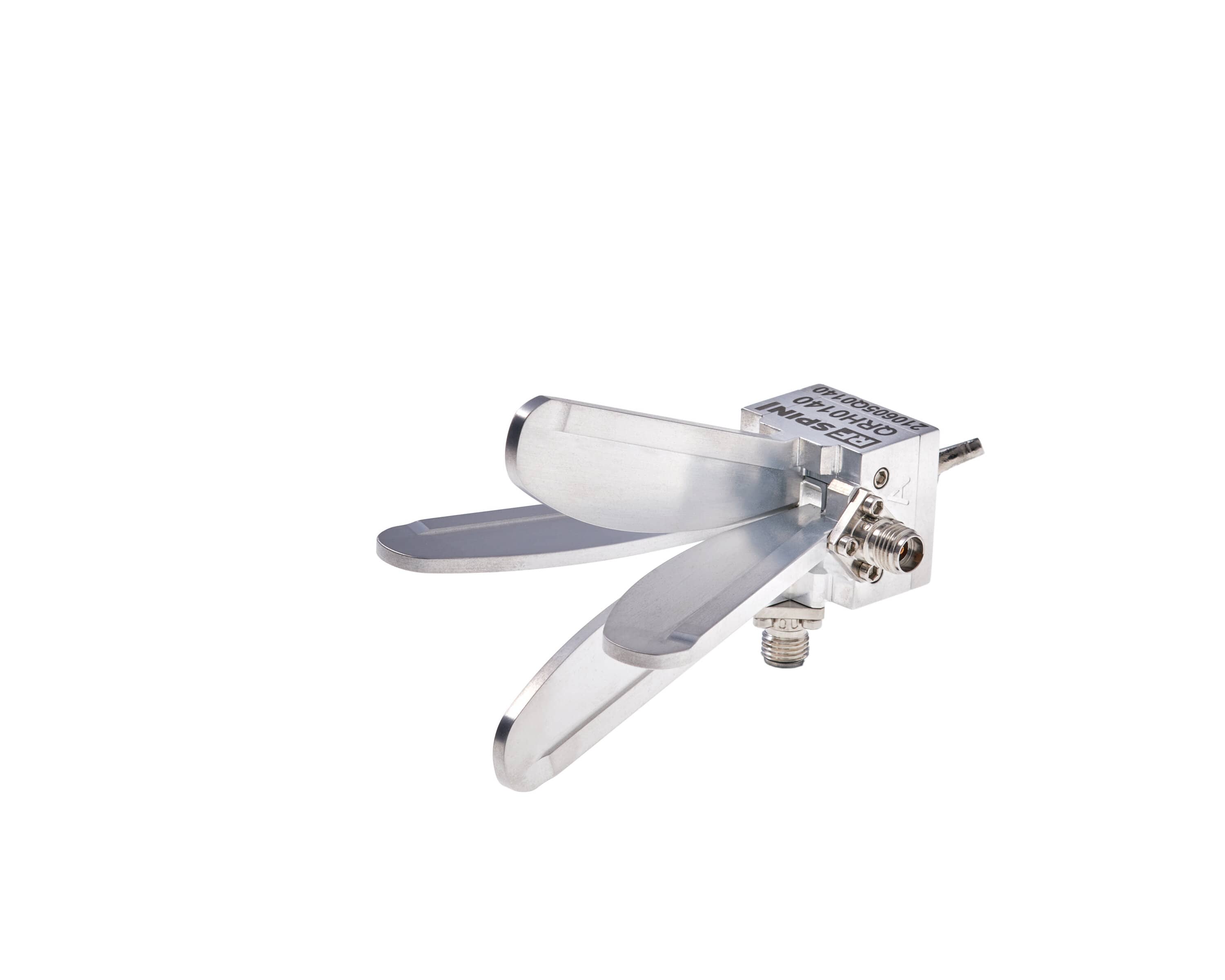

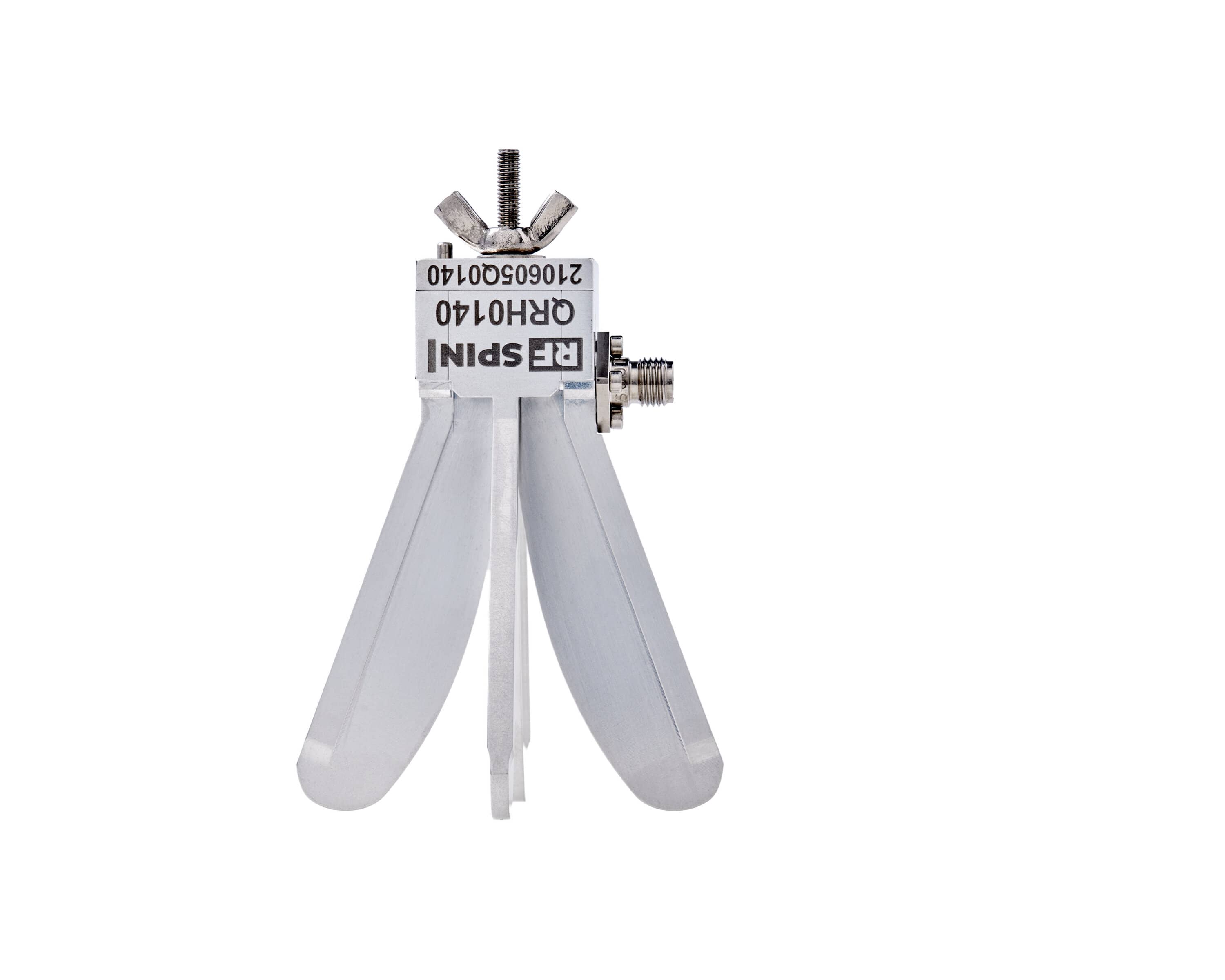

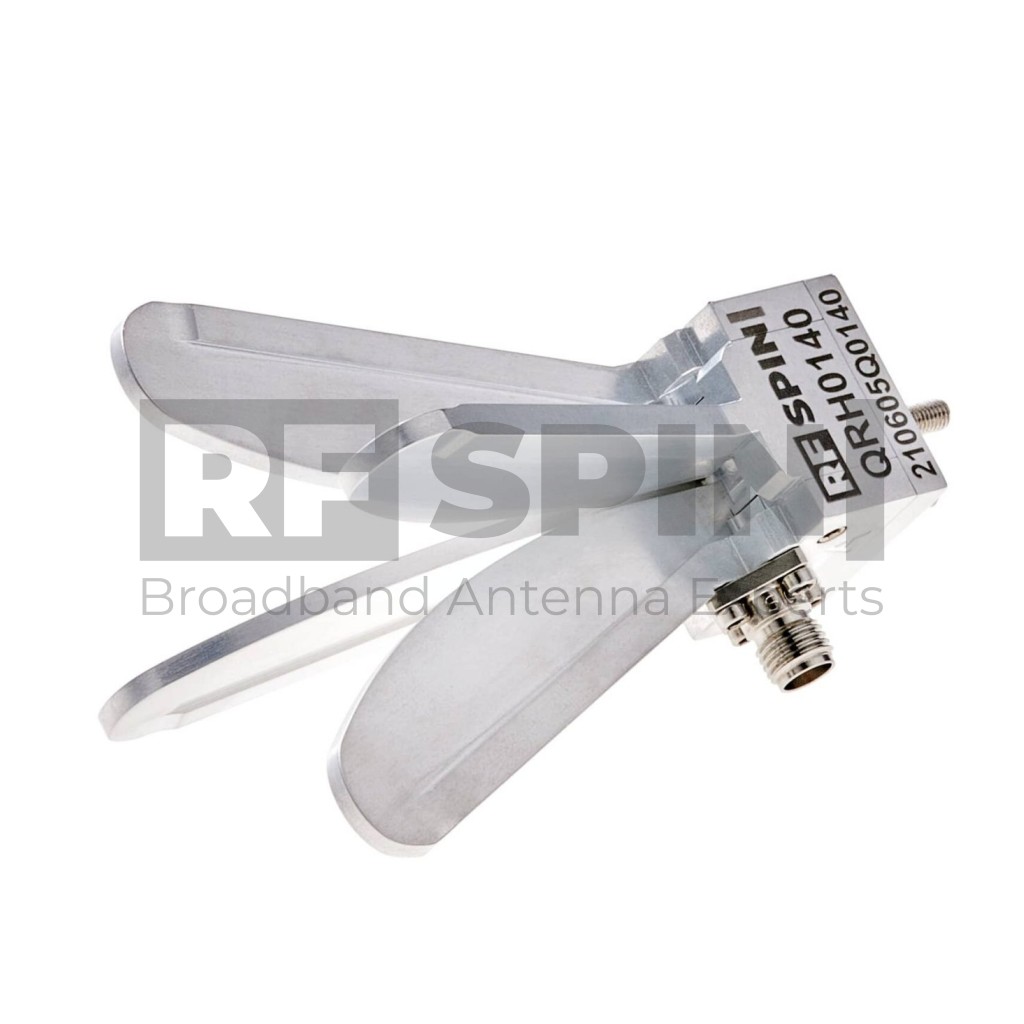

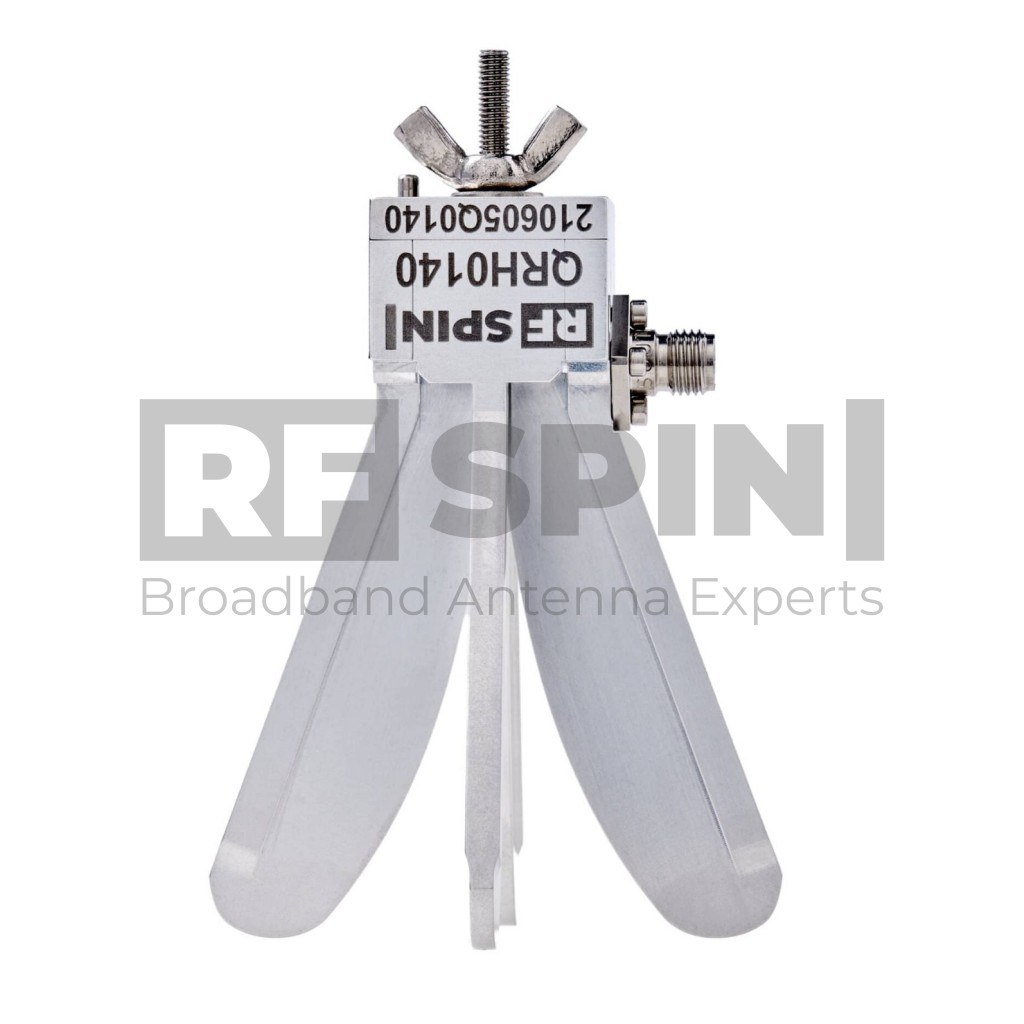

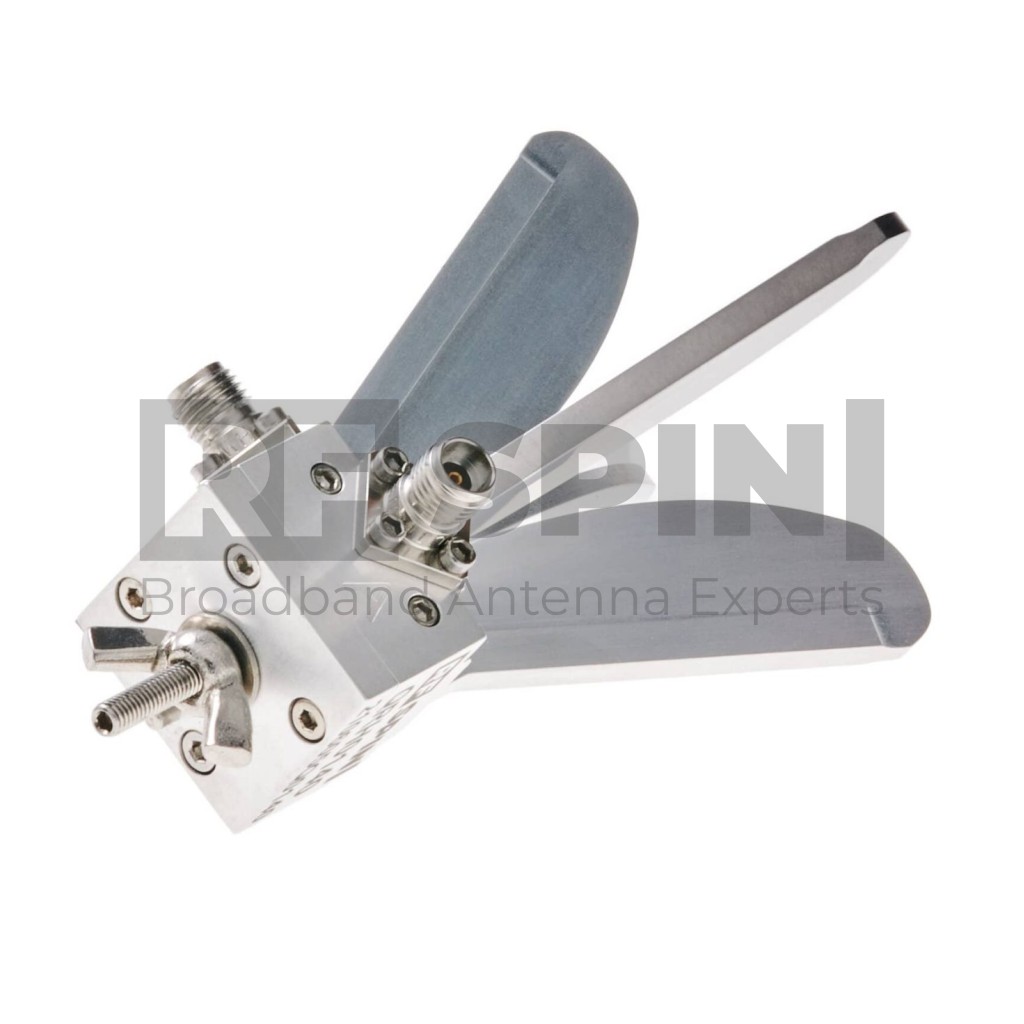

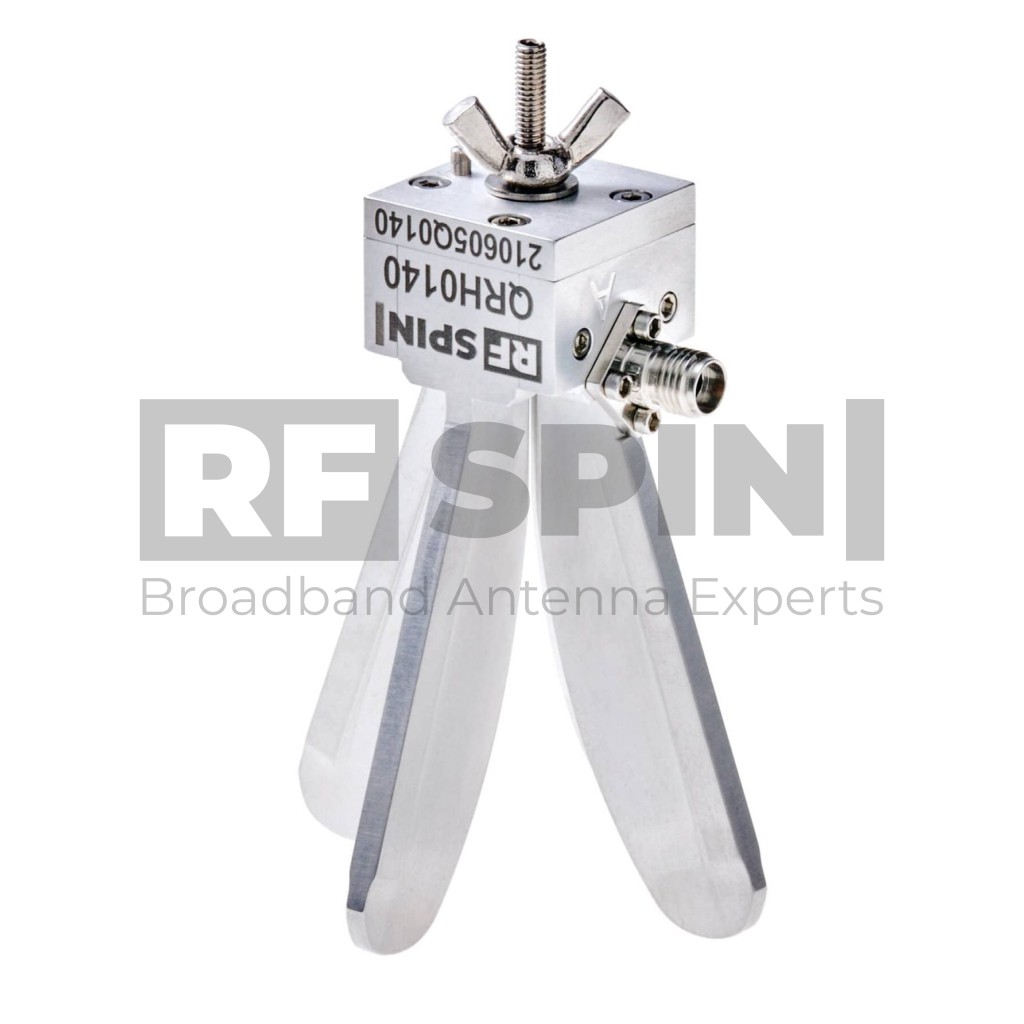

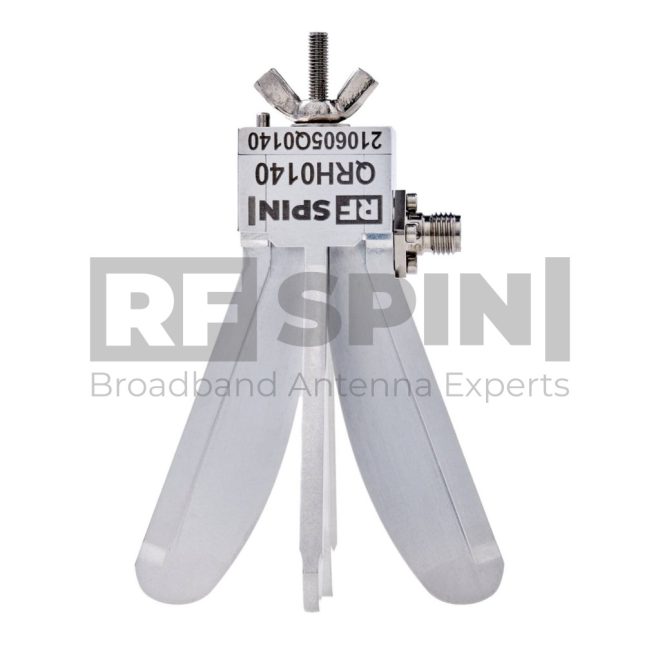

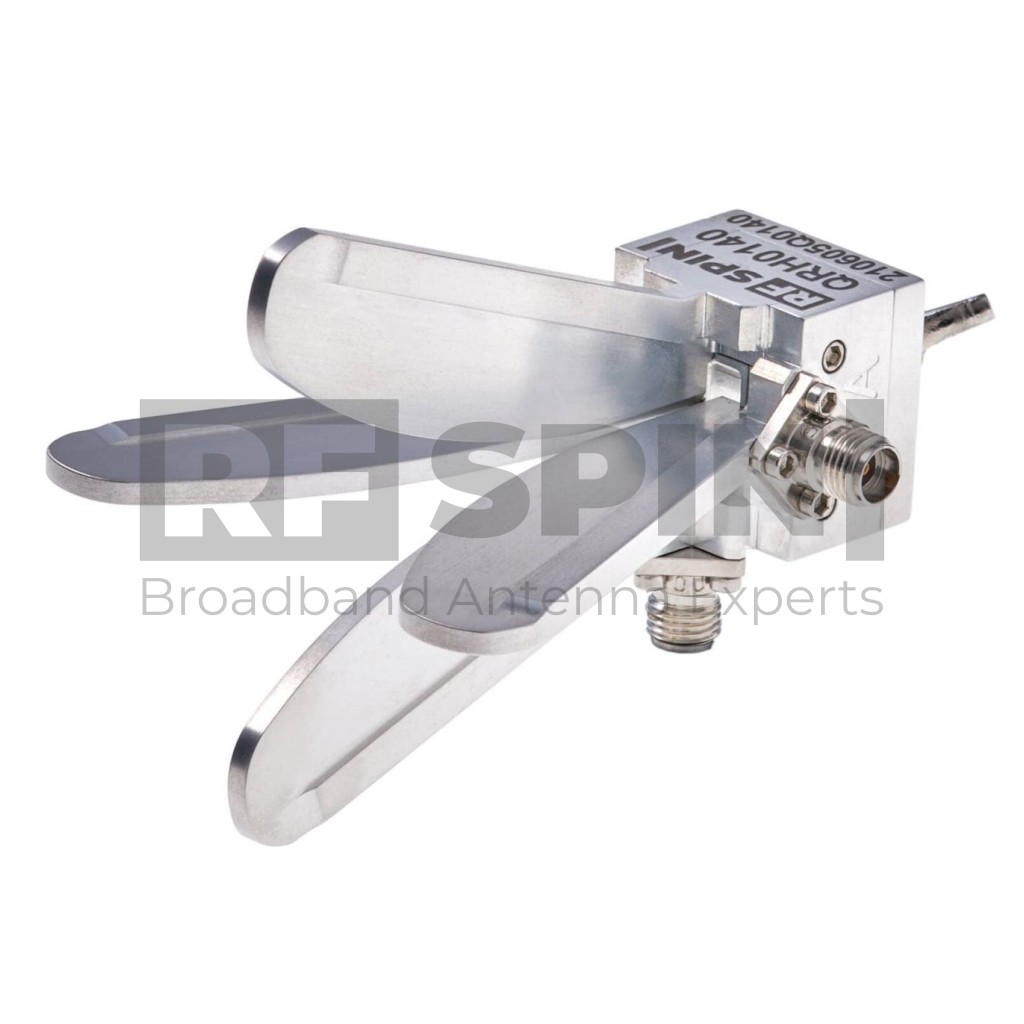

        QRH0140 Quad Ridged Horn Antenna | 1 GHz – 40 GHz

        with online calibration protocol and dataset

        Double Ridged QRH0140 operating from 1GHz to 40GHz. Most broadband antenna exceeds expectations. Simple design, robust construction, and calibrated data, this is only some advances of the QRH0140.

        Frequency Range
        1 GHz – 40 GHz
        VSWR (avg.)
        1.6
        Gain
        -20 – 15 dBi
        Impedance
        50 Ohm
        Connector
        K (female)
        Power (CW / Peak)
        10 W / 20 W
        Polarization
        Linear, Circular (with hybrid)
        In Stock: 5 pcs
        Ships in 2 days
        • Icon Datasheet
        Select files to by sent by e-mail






          Antenna portal
          This product includes Antenna Portal Access

          Features and Specifications

          Technical Performance

          • Wide bandwidth
          • Low return loss
          • Individual calibration
          • Covers 5G frequency band

          Design and Surface Treatment

          • Corrosion-resistant coating
          • Includes standard mount
          • Storage in protective tailor-made wooden box

          Manufacturing Technology

          • Manufactured using a high grade aluminum alloy
          • Extremely durable
          • High quality K type coaxial connector

          Product Packaging Includes

          • Antenna
          • Adapter with ¼ inch inner thread, supplied with antenna

          Product Parameters

          Product identification

          • Product Name QRH0140
          • Product Category Quad Ridged Horn Antenna

          Electrical specifications

          • Frequency Range 1 GHz – 40 GHz
          • VSWR (max.) 70
          • VSWR (avg.) 1.6
          • Impedance 50 Ohm
          • Connector K (female)
          • Power (CW / Peak) 10 W / 20 W
          • Antenna Factor 35 – 70 dB/m
          • Port Isolation -30 dB
          • Polarization Linear, Circular (with hybrid)

          Physical specifications

          • Width 54 mm (2.126 in)
          • Height 69 mm (2.717 in)
          • Depth 54 mm (2.126 in)
          • Weight 0.050 kg (0.110 lb)

          Operating conditions

          • Rated Temperature Range 0°C – +50°C
          • Storage Temperature Range -20°C – +70°C

          Mounting flange

          • Mounting Adapter with ¼ inch inner thread, supplied with antenna

          Mechanical Drawings

          Parameters and Performance

          Typical parameters

          VSWR

          QRH0140 - VSWR

          Gain

          QRH0140 - Gain

          Antenna Factor

          QRH0140 - Antenna Factor

          Port Isolation

          QRH0140 - Port Isolation

          Cross Polarization

          QRH0140 - Cross Polarization

          Beamwidth

          Port A, E plane

          QRH0140 - Port A, E plane

          Port A, H plane

          QRH0140 - Port A, H plane

          Port B, E plane

          QRH0140 - Port B, E plane

          Port B, H plane

          QRH0140 - Port B, H plane

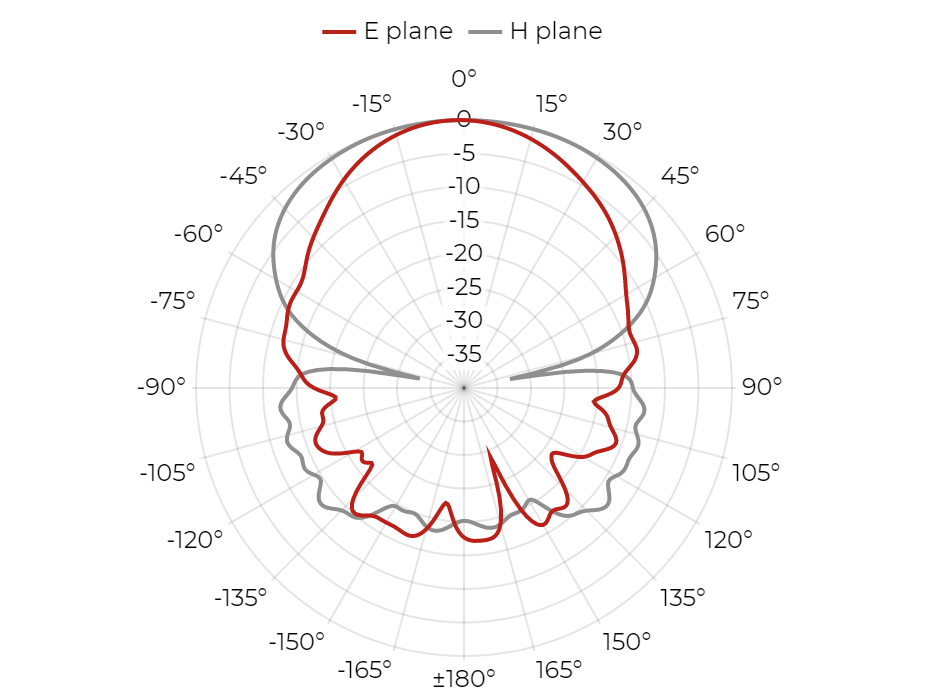

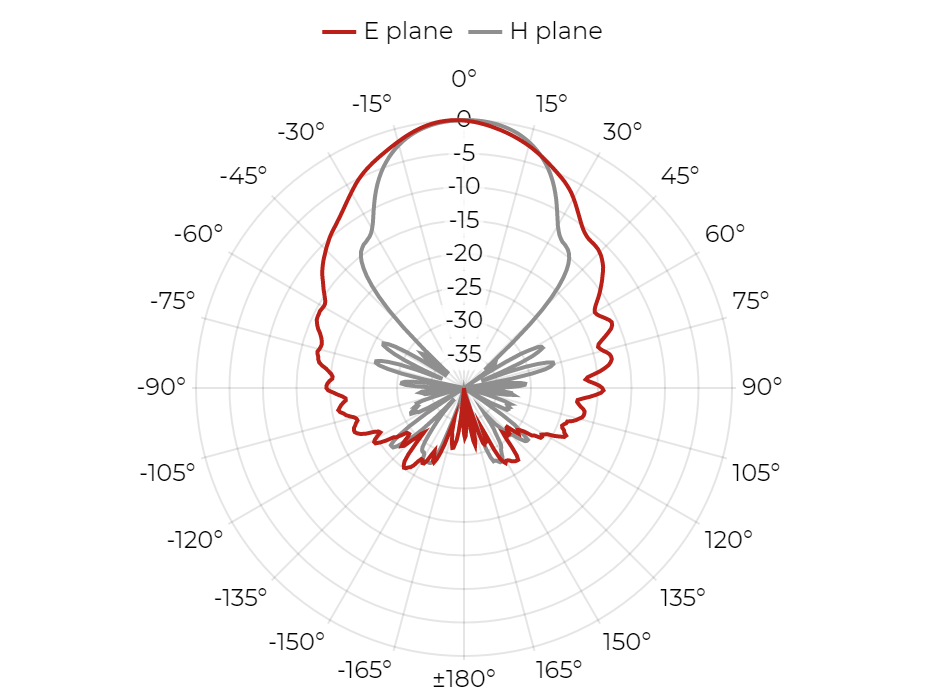

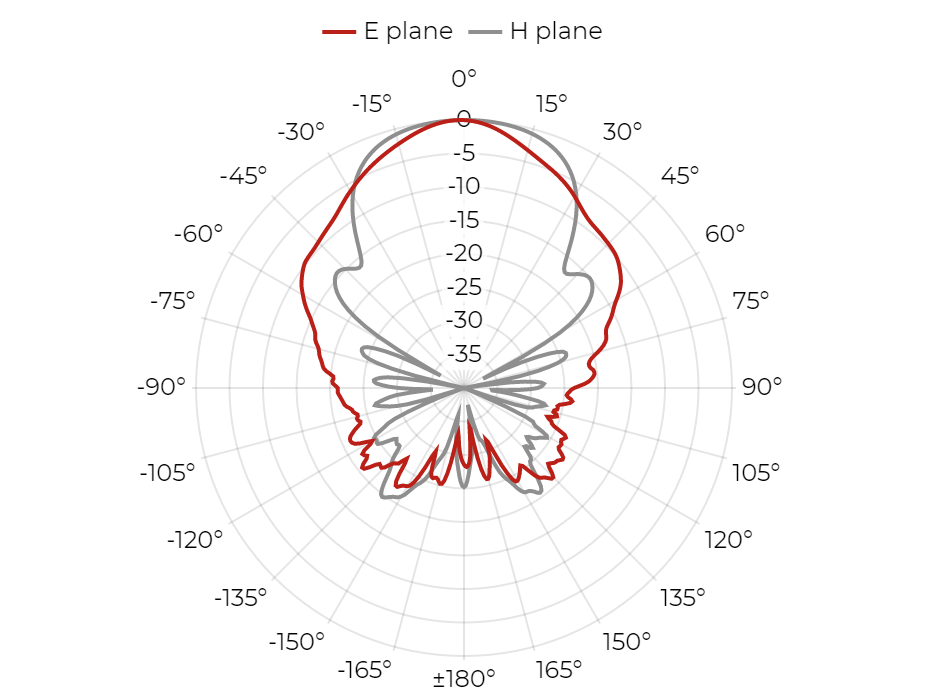

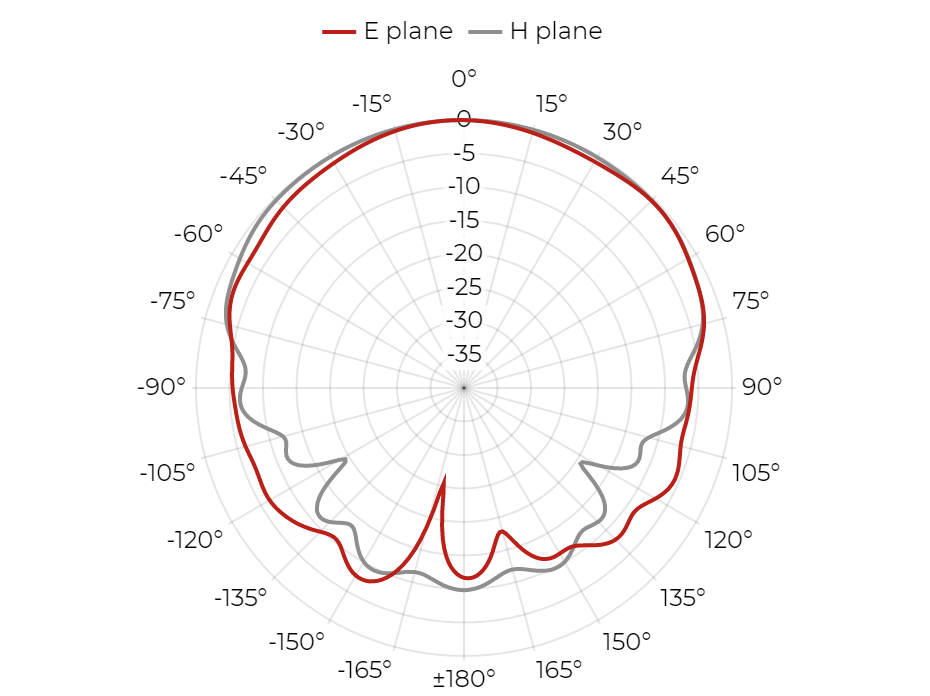

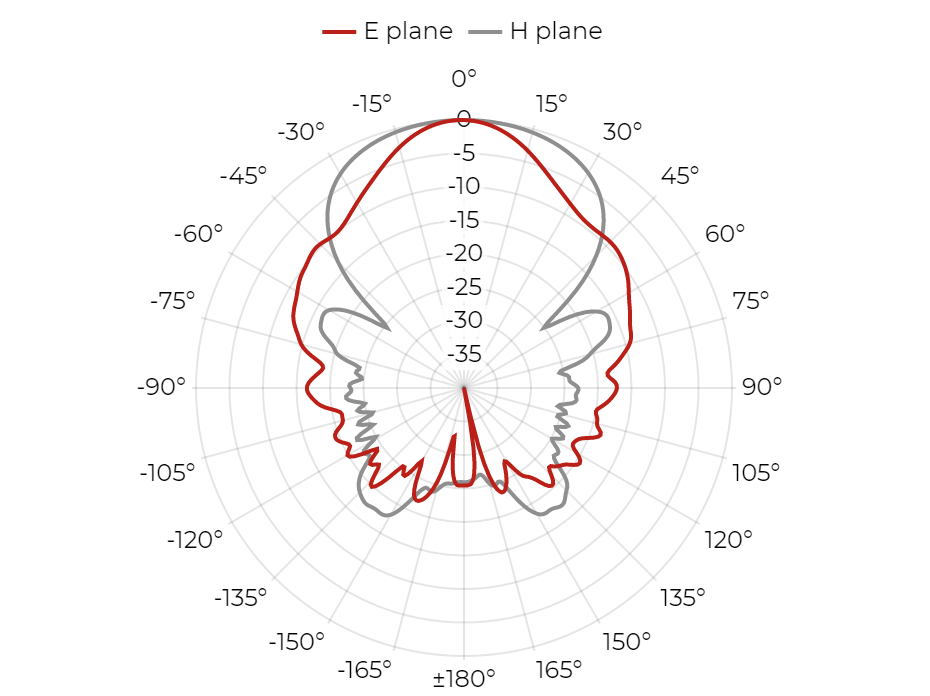

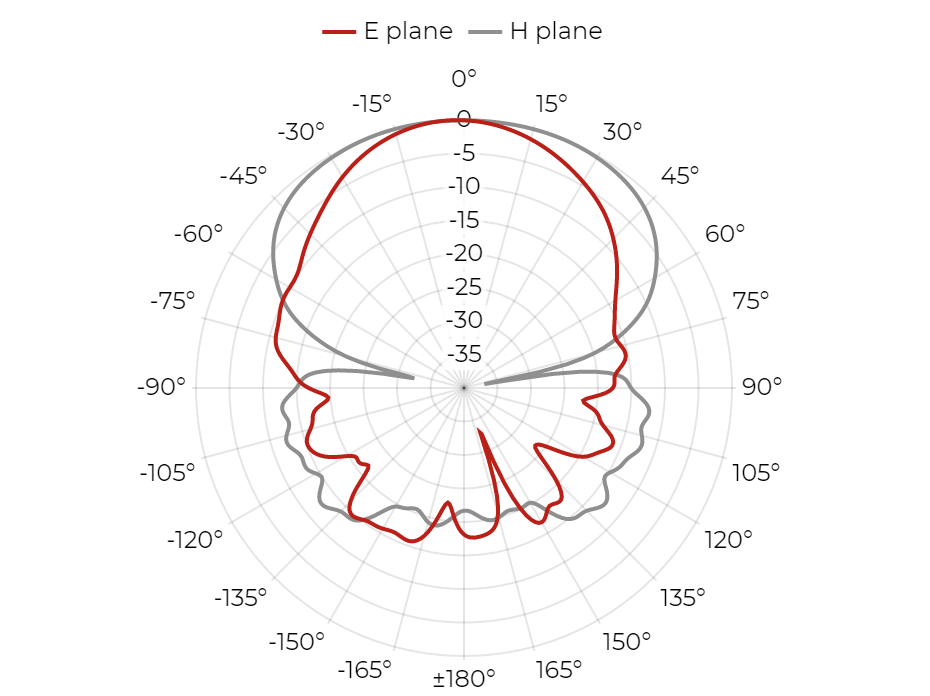

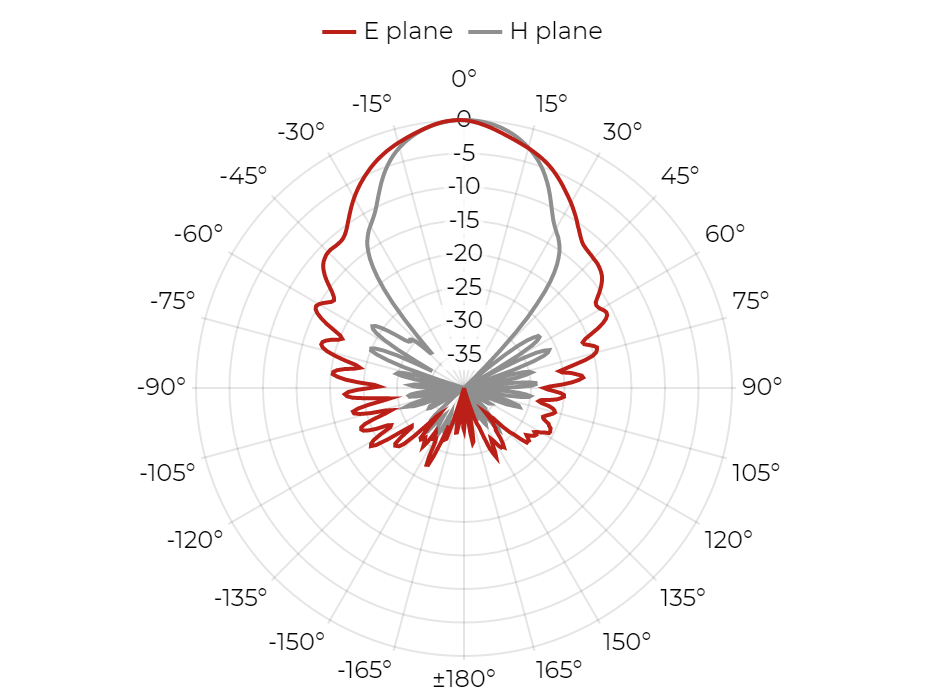

          Radiation Patterns

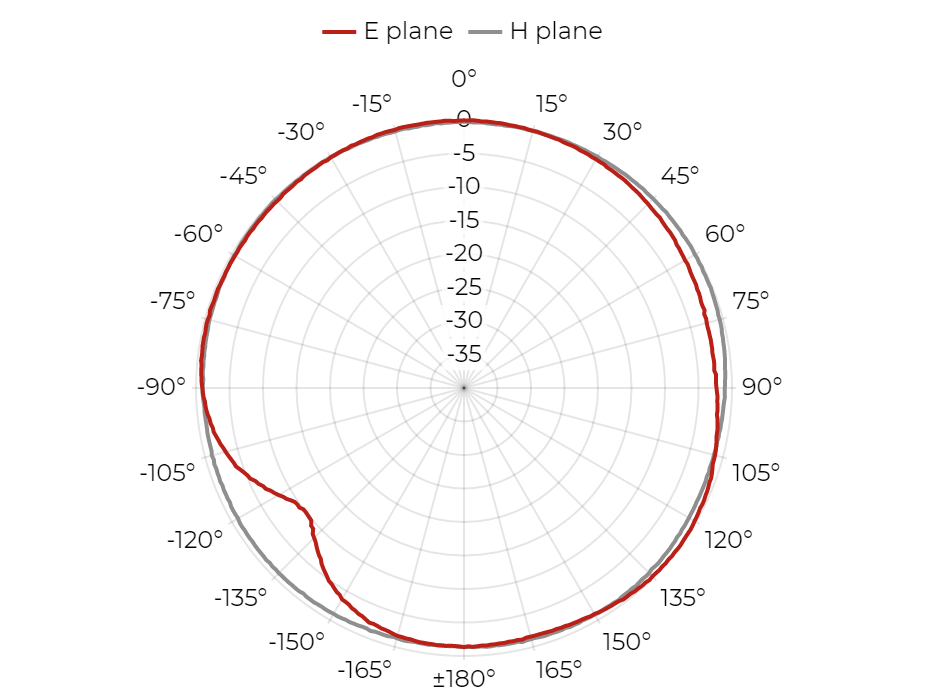

          Port A, 1 GHz

          QRH0140 - Port A, 1 GHz

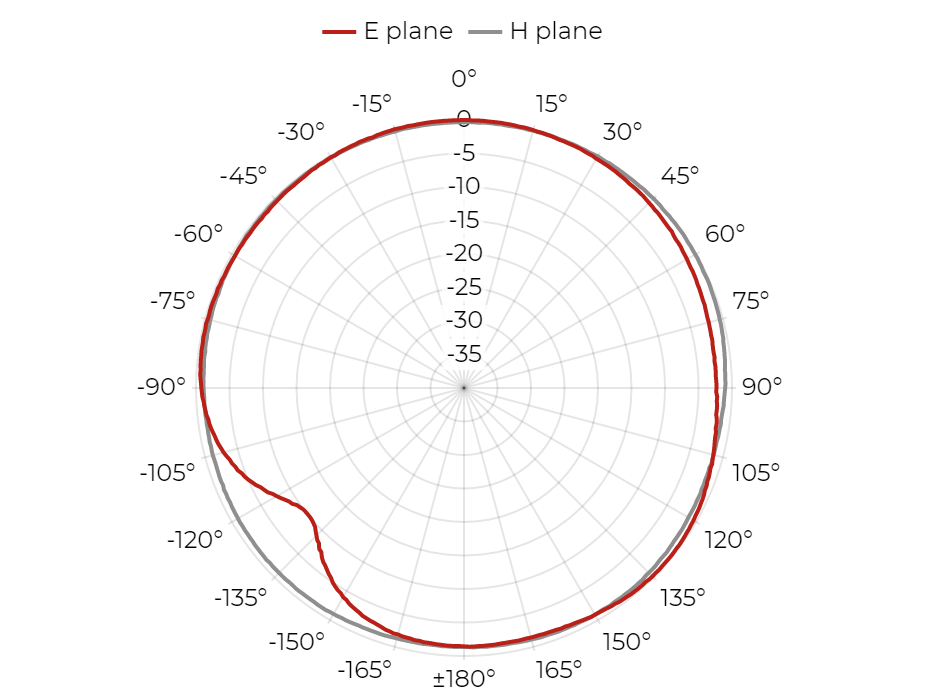

          Port B, 1 GHz

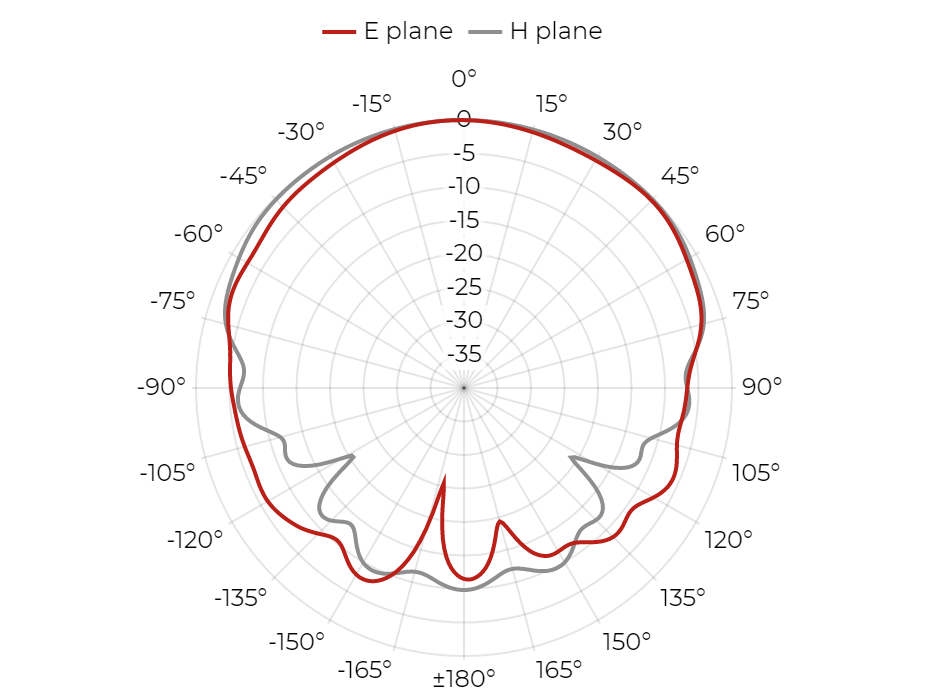

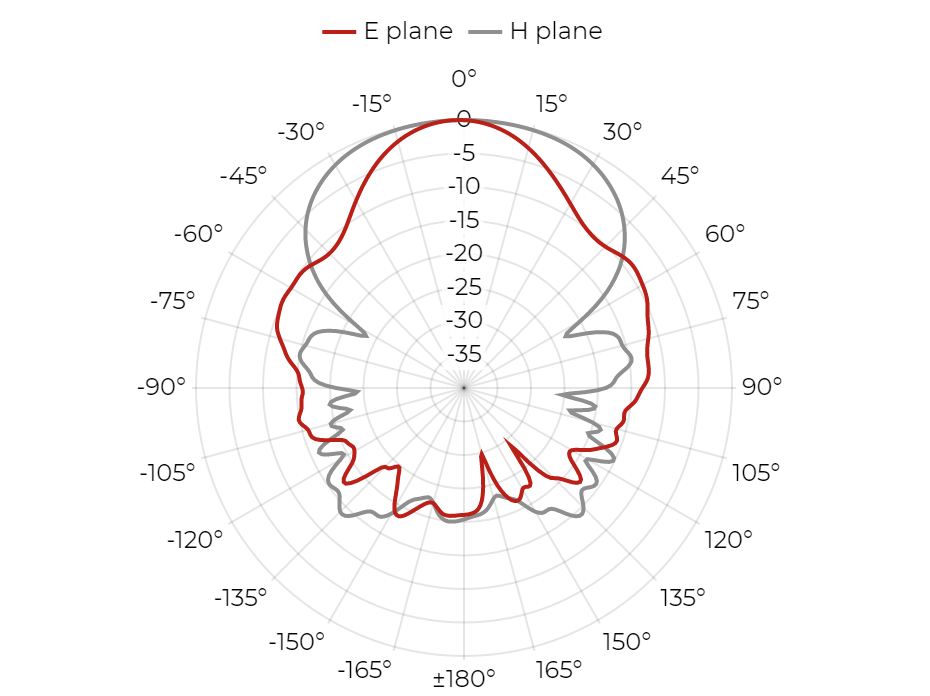

          QRH0140 - Port B, 1 GHz

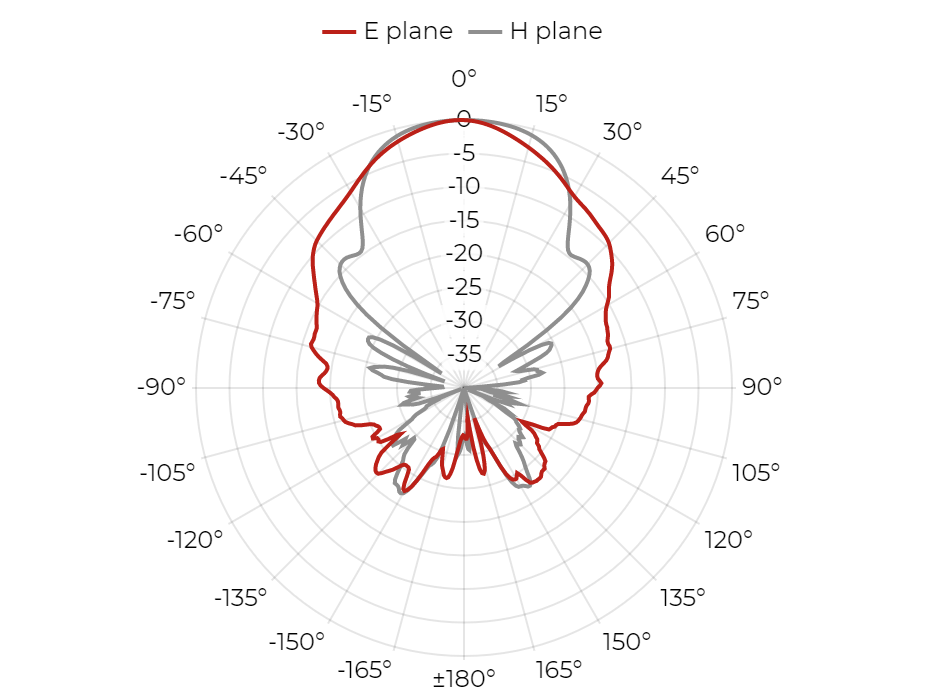

          Port A, 4 GHz

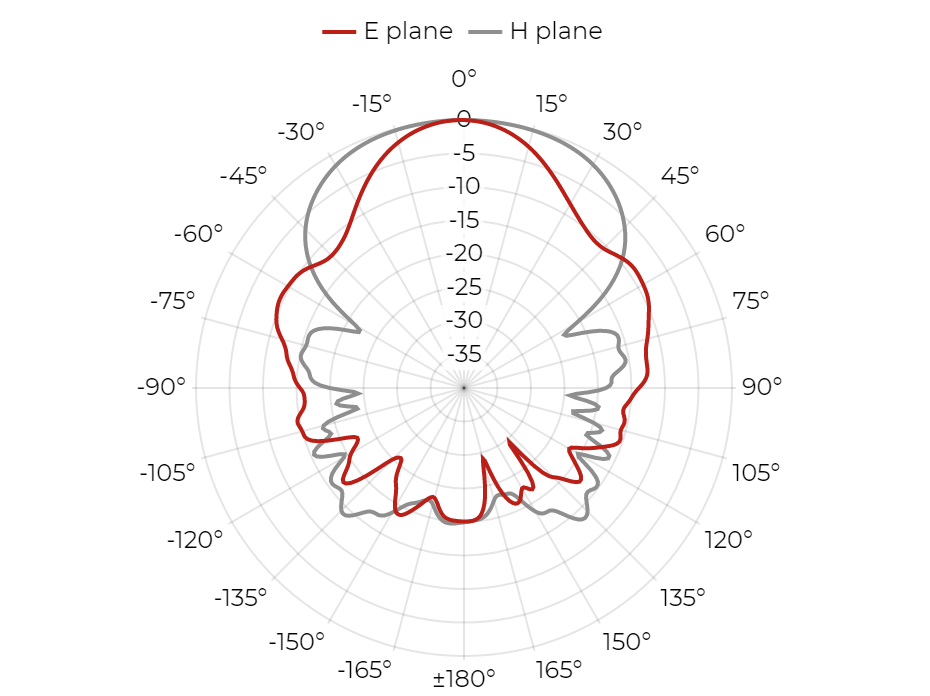

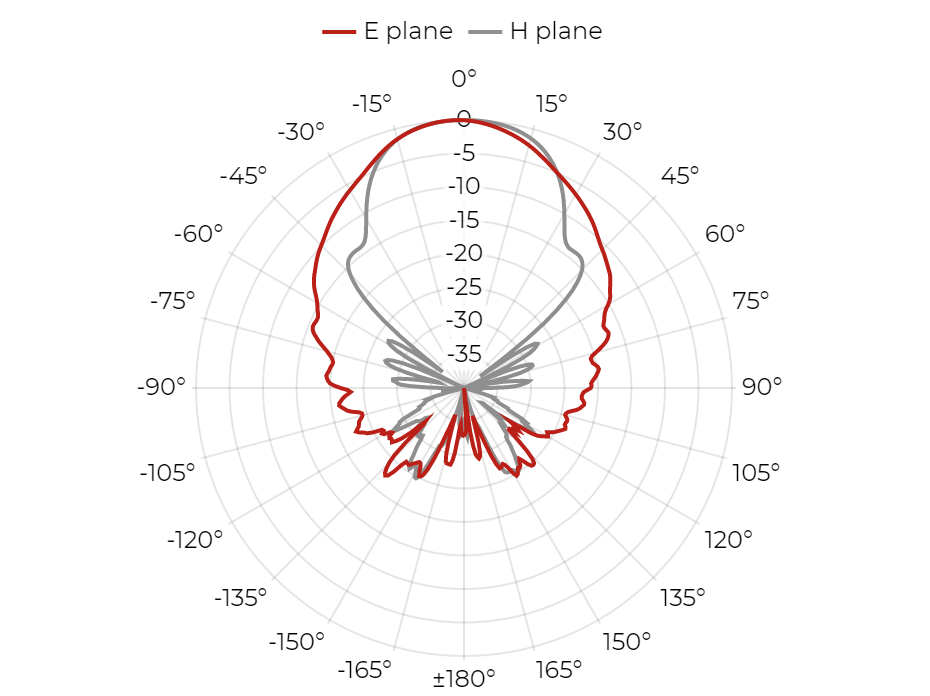

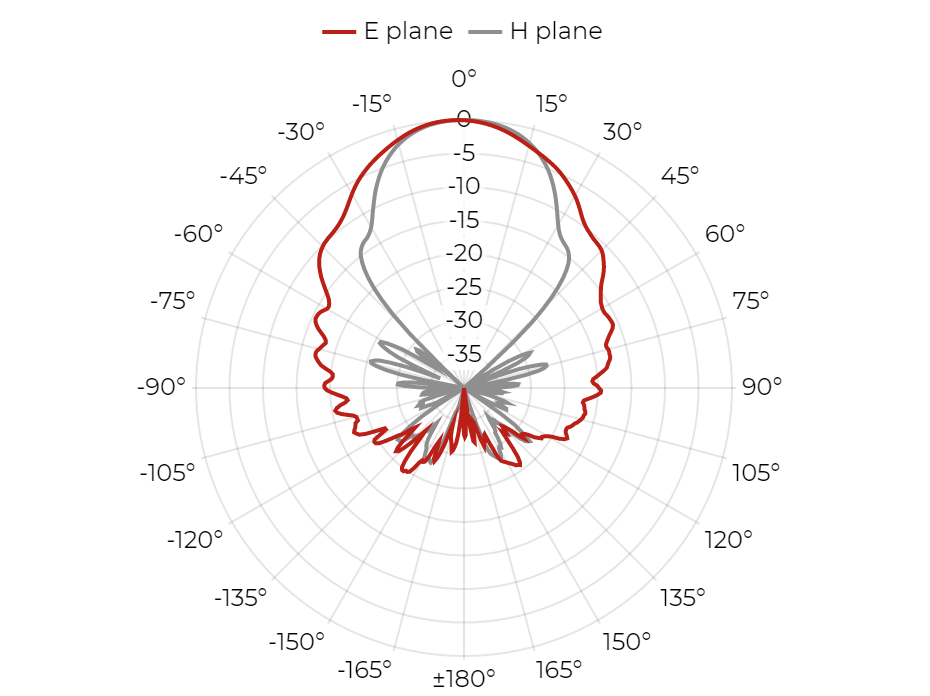

          QRH0140 - Port A, 4 GHz

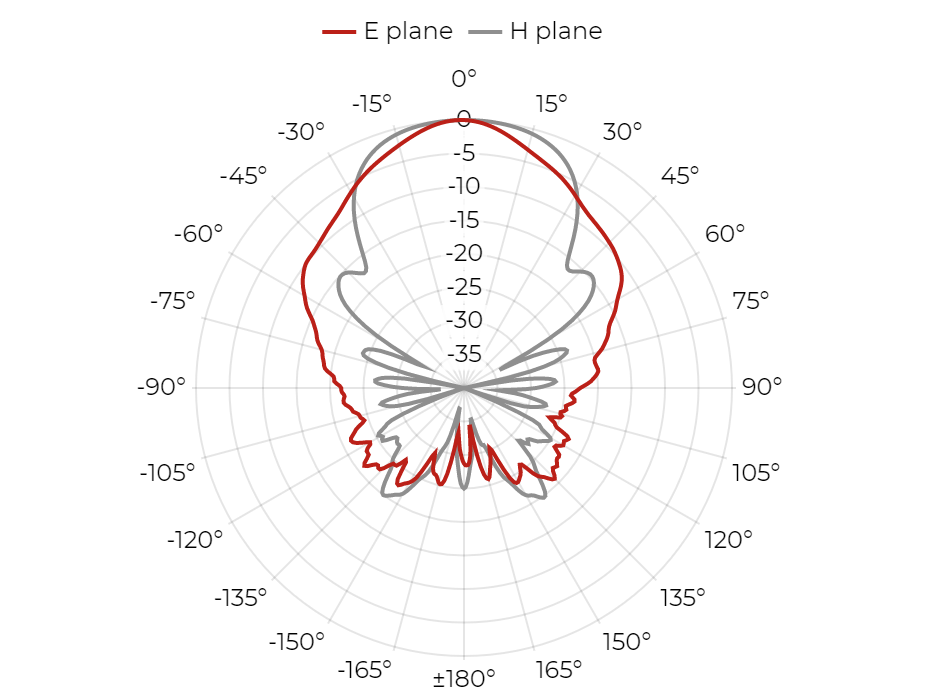

          Port B, 4 GHz

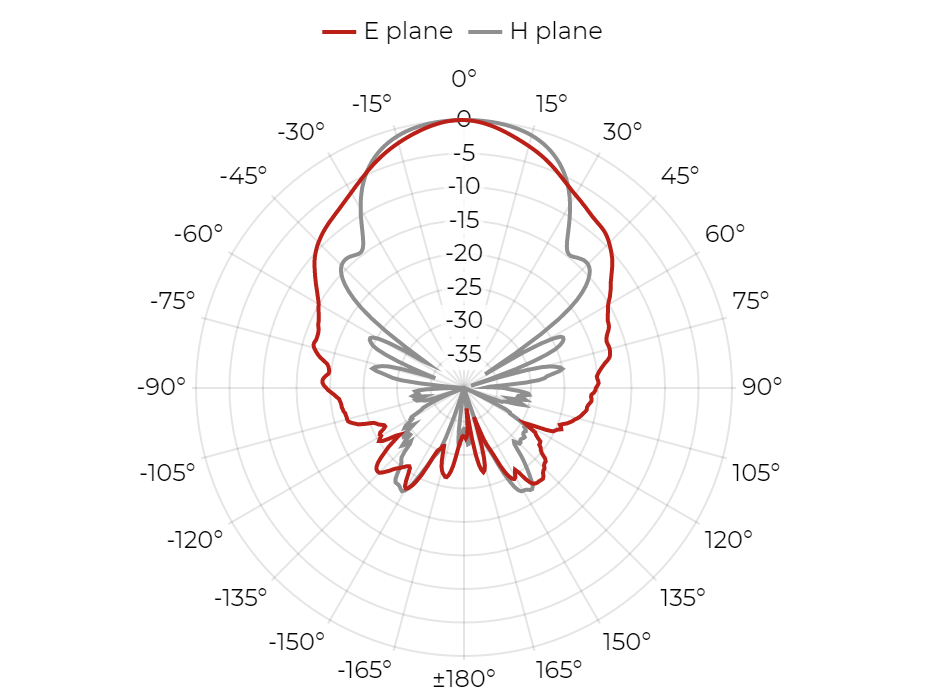

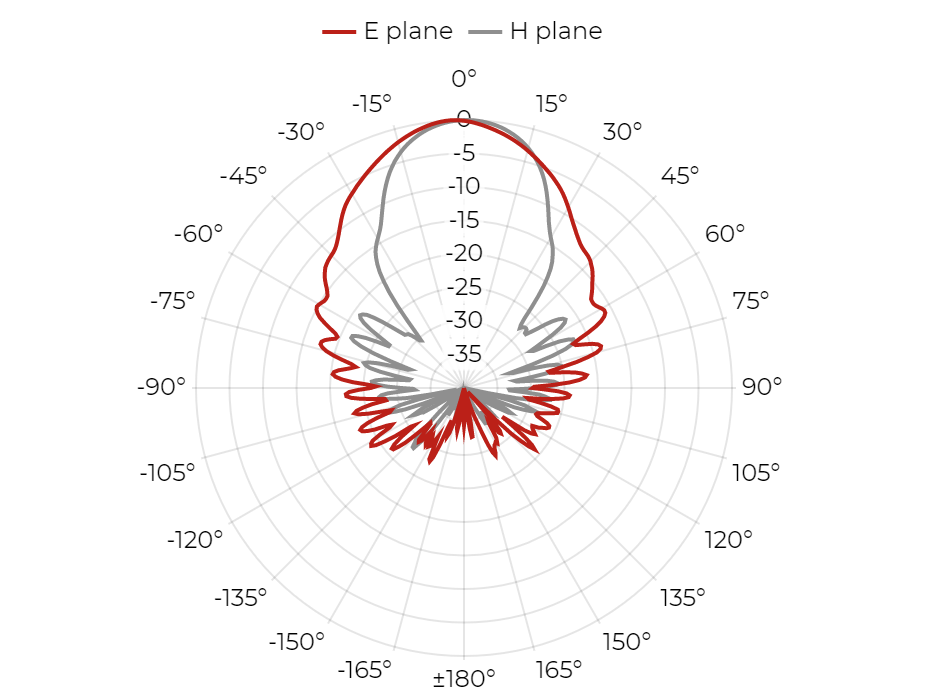

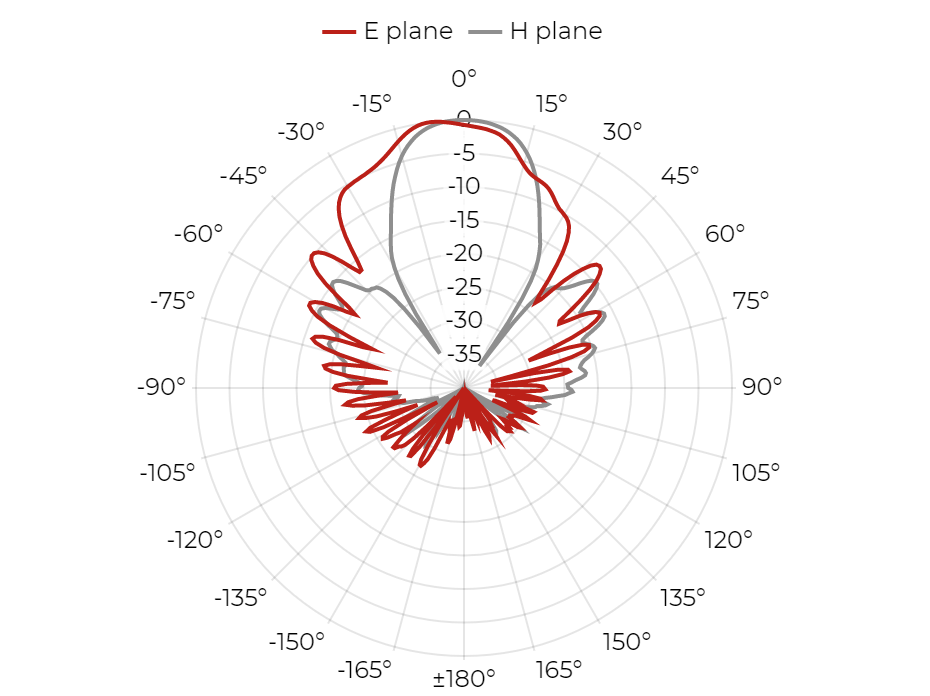

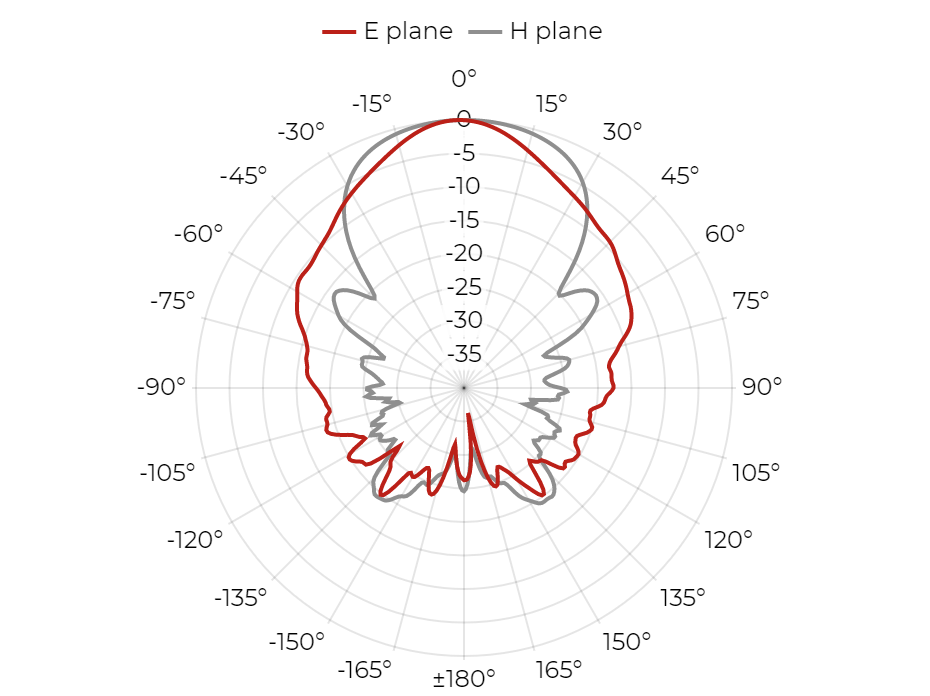

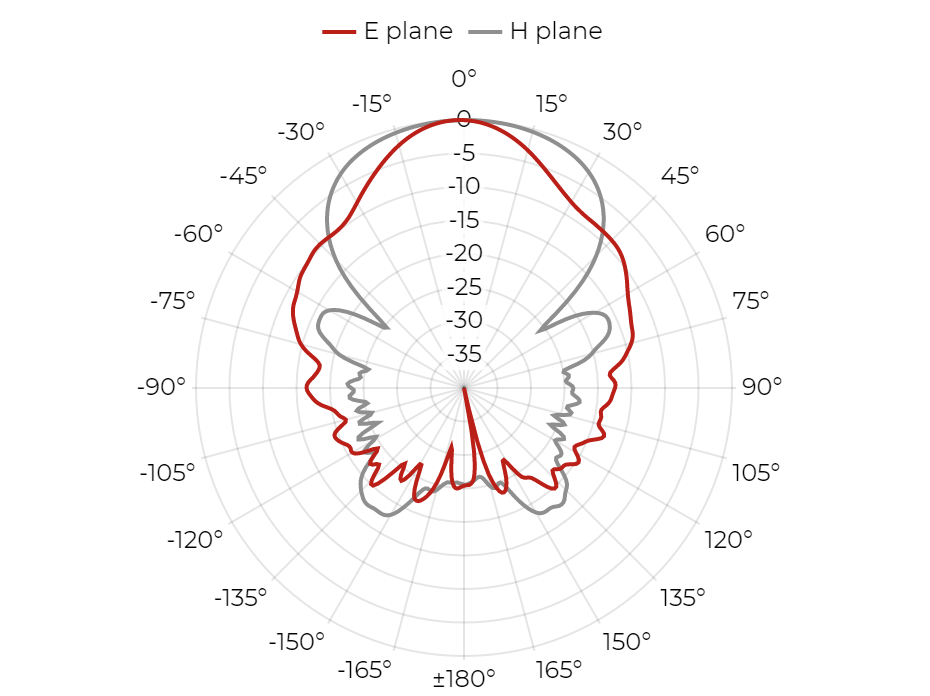

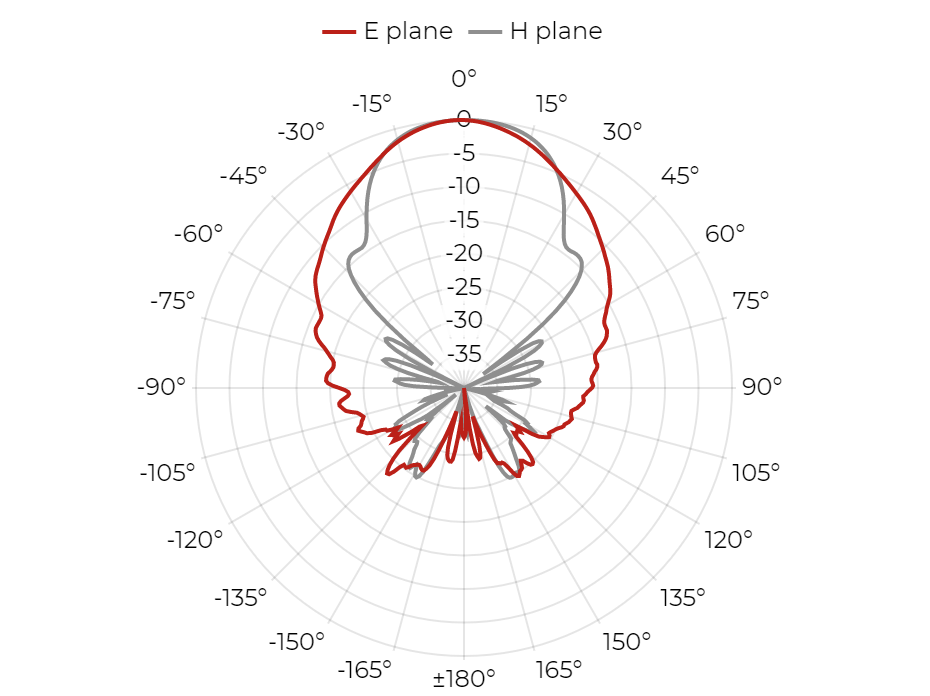

          QRH0140 - Port B, 4 GHz

          Packaging and Accessories

          What's in a box

          • QRH0140 Antenna
          • Antenna specific mount adapter with ¼ inch inner thread
          • Protective wooden case
          • Factory calibration certificate
          • Full calibration report of each antenna
          • QR code accessing online portal
          • Calibration test dataset (available online)

          Accessories

          • Standard mounting flange
          • Protective wooden case
          • Factory calibration report

          Optional Accessories

          Custom services

          • Custom mounting solutions
          • Custom calibration data
