MBA00710O Special Purpose Antenna | 70 MHz – 1 GHz
with online calibration protocol and dataset

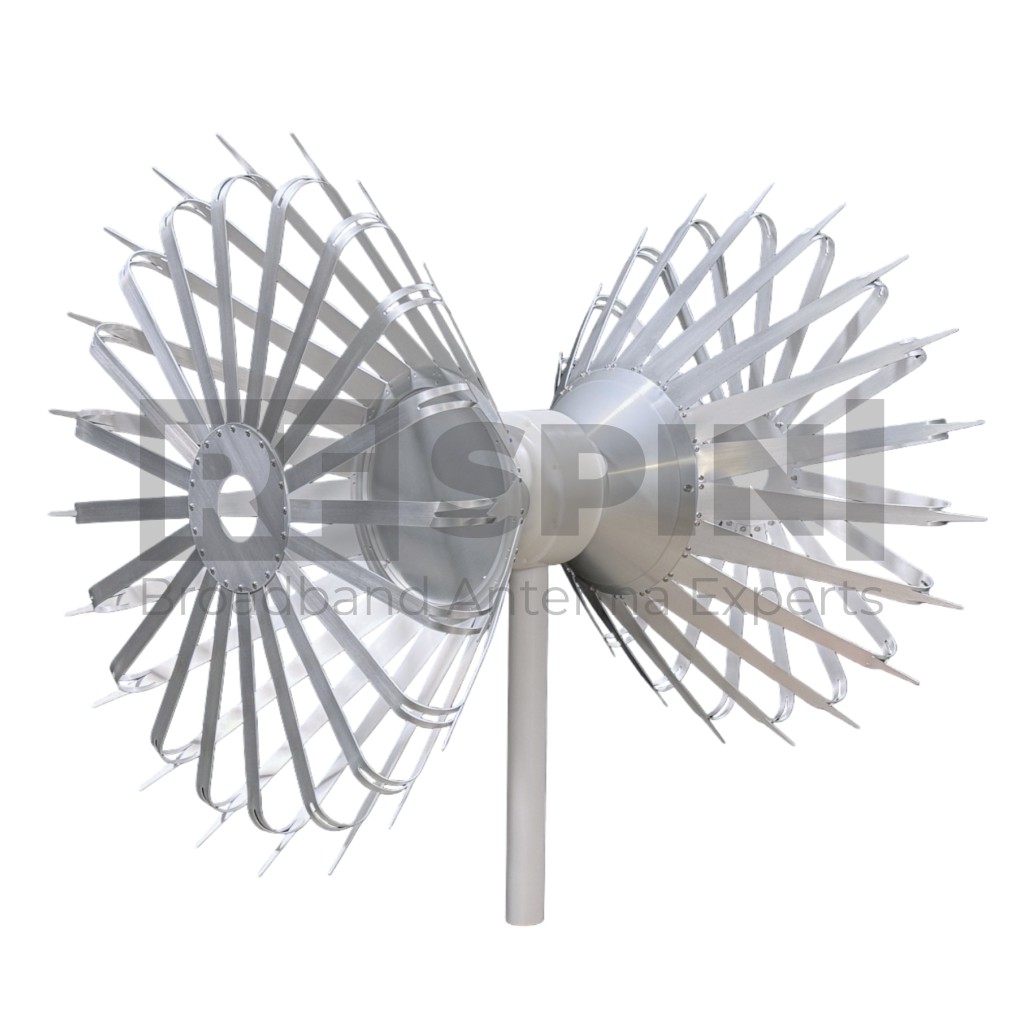

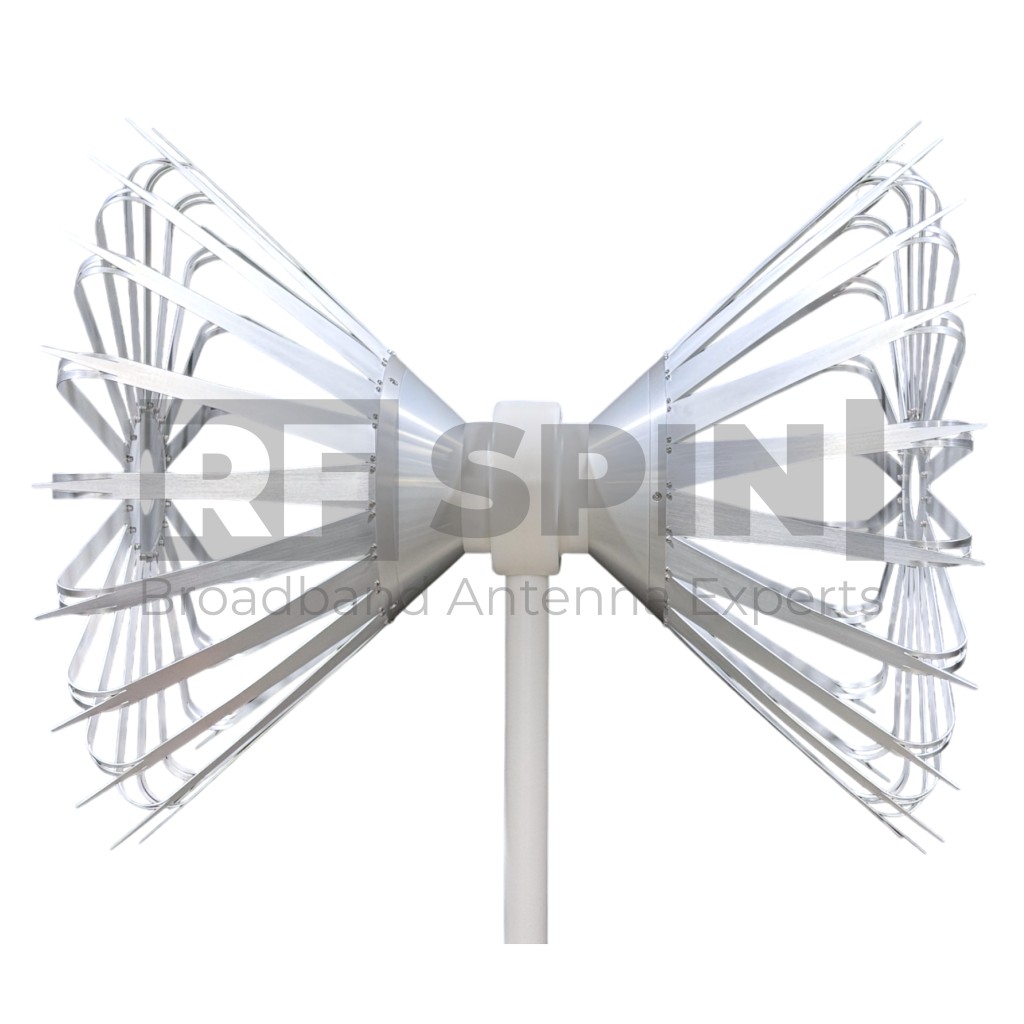

Biconical antenna specially developed for anechoic chamber measurement. The antenna can be connected via normal coaxial cable or only an optical cable. The antenna operates from 70 MHz up to 1 GHz.
Features and Specifications
Technical Performance
- Wide bandwidth
- Individual calibration
- Suitable for EMC/EMI applications
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- High quality SMA type coaxial connector
Product Packaging Includes
- Antenna
Product Parameters
Product identification
- Product Name MBA00710O
- Product Category Special Purpose Antenna
Electrical specifications
- Frequency Range 70 MHz – 1 GHz
- VSWR (max.) 10
- VSWR (avg.) 1.1
- Impedance 50 Ohm
- Power (CW / Peak) 200 W / 300 W
- Antenna Factor 8 – 28 dB/m
- Polarization Linear
Physical specifications
- Width 658 mm (25.906 in)
- Height 700 mm (27.559 in)
- Depth 658 mm (25.906 in)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings
Antenna
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Radiation Patterns
0.15 GHz
0.23 GHz
0.3 GHz
0.4 GHz
0.47 GHz
0.55 GHz
0.63 GHz
0.7 GHz
0.8 GHz
Packaging and Accessories
What's in a box
- MBA00710O Antenna
- MBA00710O Device
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
- Custom calibration data
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
