HC90-0560
Power Divider

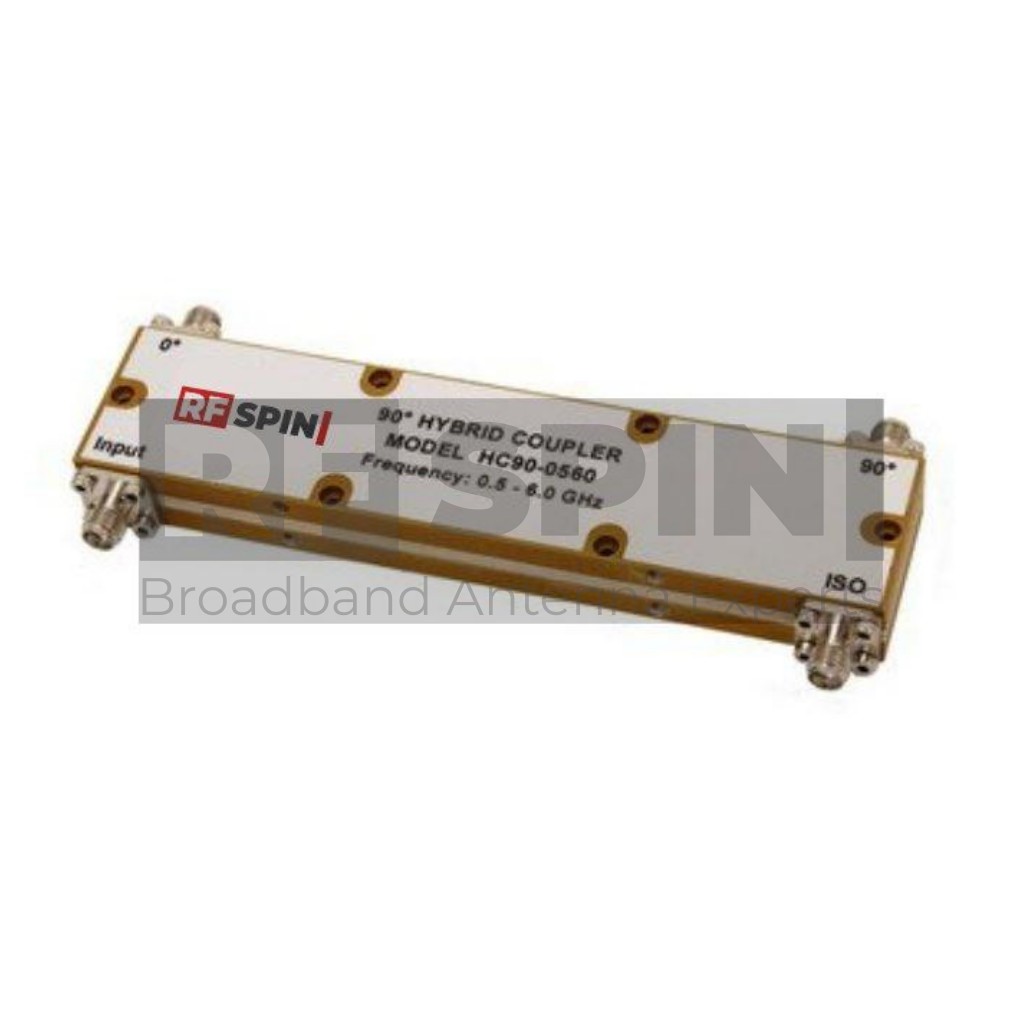

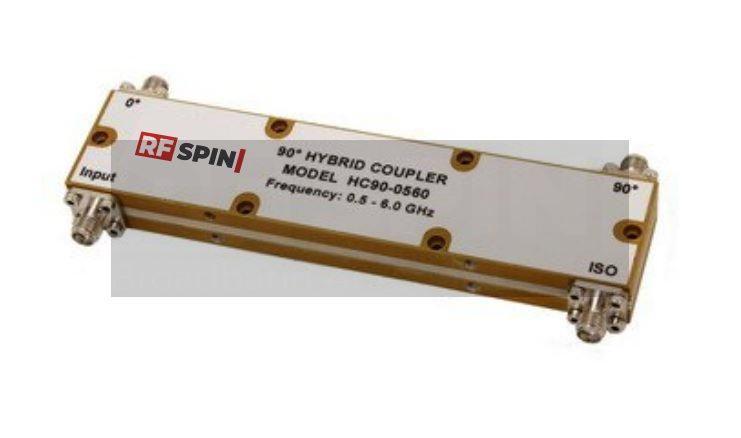

The hybrid coupler is a four-port device that equally splits input signals with a 90-degree phase shift between output ports. RF SPIN hybrid couplers are specially developed to suit our antenna portfolio. HC90-0560 has wide bandwidth from 0.5 GHz up to 6 GHz, low VSWR, low insertion loss, and tight amplitude and phase balance. This power divider is optimal for dual-polarized antenna QRH400.
Availability: Most products are on stock. Please contact us for more information or large quantity orders.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
Design and Surface Treatment
Manufacturing Technology
- High quality SMA type coaxial connector
Product Packaging Includes
- 90° hybrid coupler
Product Parameters
Product identification
- Product Name HC90-0560
- Product Category Power Divider
Electrical specifications
- Frequency Range 500 MHz – 6 GHz
- VSWR (max.) 1.25
- VSWR (avg.) 1.15
- Impedance 50 Ohm
- Insertion Loss (max.) 1.2 dB
- Connector SMA (female)
- Power (CW / Peak) 50 W / 100 W
- Amplitute Balance (max.) 1 dB
- Phase Balance (max.) ±50 deg.
- Isolation 20 dB.
Physical specifications
- Width 130 mm (5.118 in)
- Height 13 mm (0.512 in)
- Depth 48 mm (1.890 in)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Packaging and Accessories
What's in a box
- HC90-0560 Device
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
- Custom calibration data
