H-A60-W25
Pyramidal Horn Antenna
online calibration protocol & dataset available

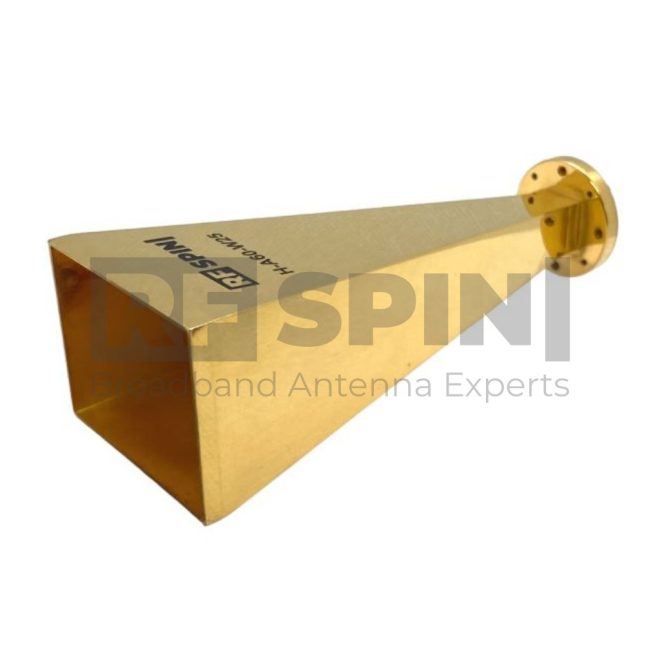

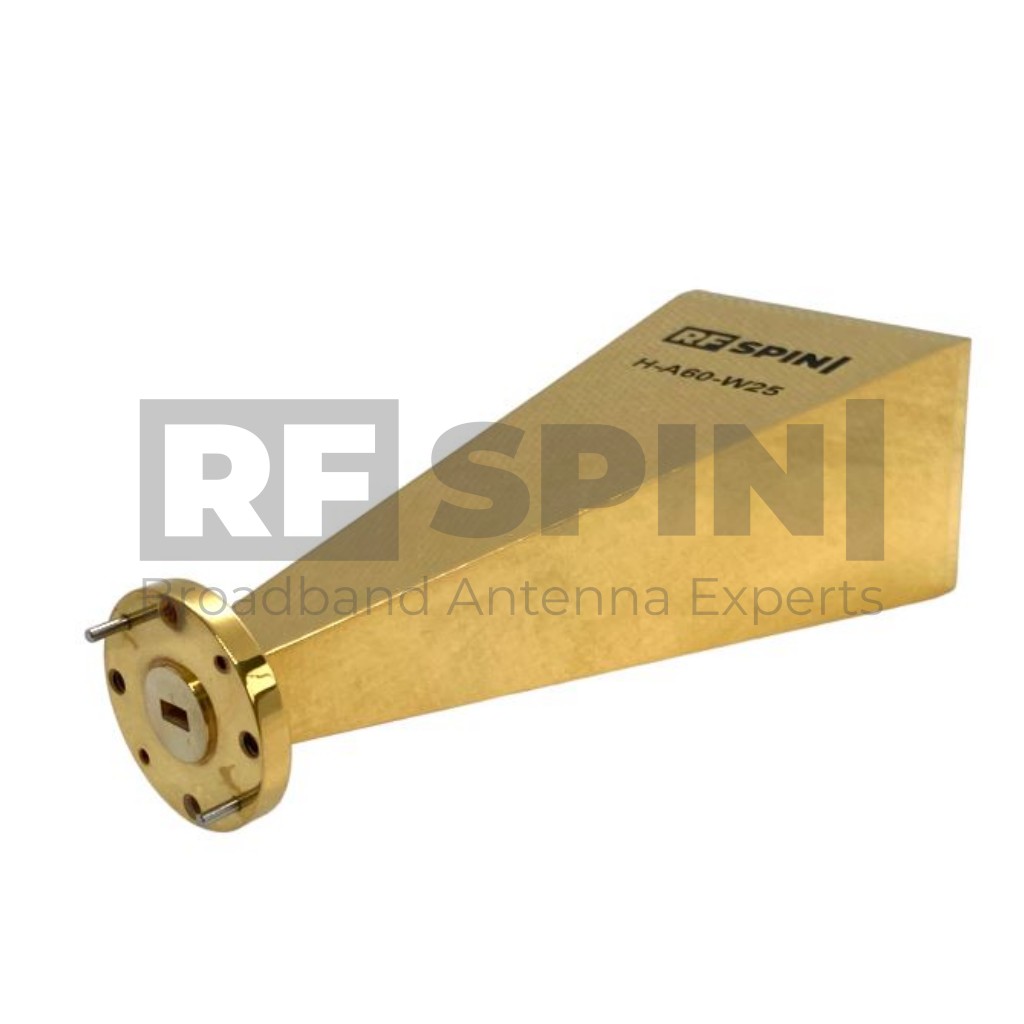

Pyramidal horn antenna with the surface finish from Alodine 2040. H-A60-W25 pyramidal horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements. The operating frequency is from 40 GHz up to 60 GHz with a flat Gain of 25 dBi. The H-A60-W25 can be supplemented with a corresponding Waveguide to Coax Adapter.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
Product Packaging Includes
- Antenna
Product Parameters
Product identification
- Product Name H-A60-W25
- Product Category Pyramidal Horn Antenna
Electrical specifications
- Frequency Range 40 GHz – 60 GHz
- VSWR (max.) 1.14
- VSWR (avg.) 1.1
- Waveguide Size WR19
- Waveguide Flange UG-383/U
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Packaging and Accessories
Accessories
- Standard mounting flange
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
