H-A26-W15

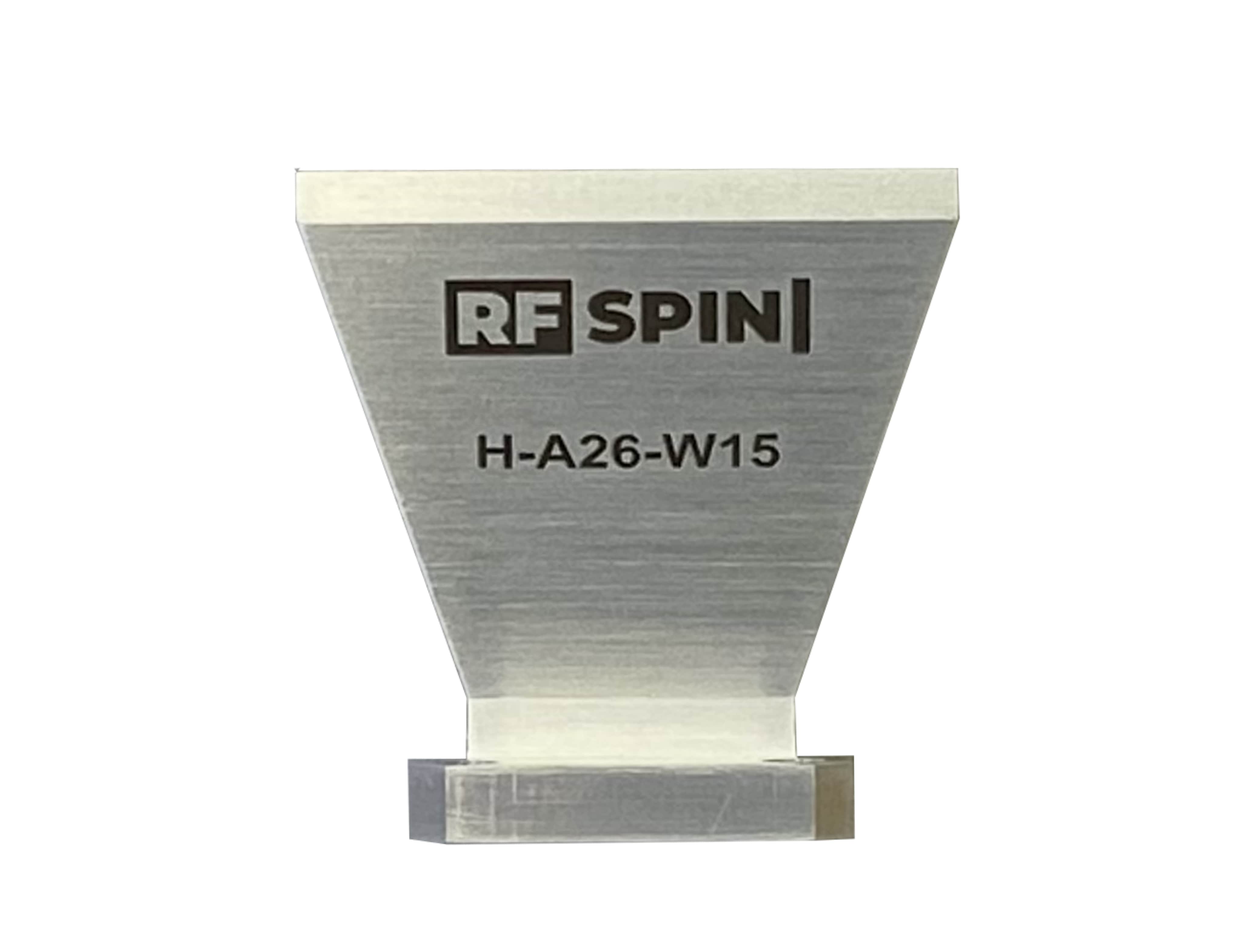

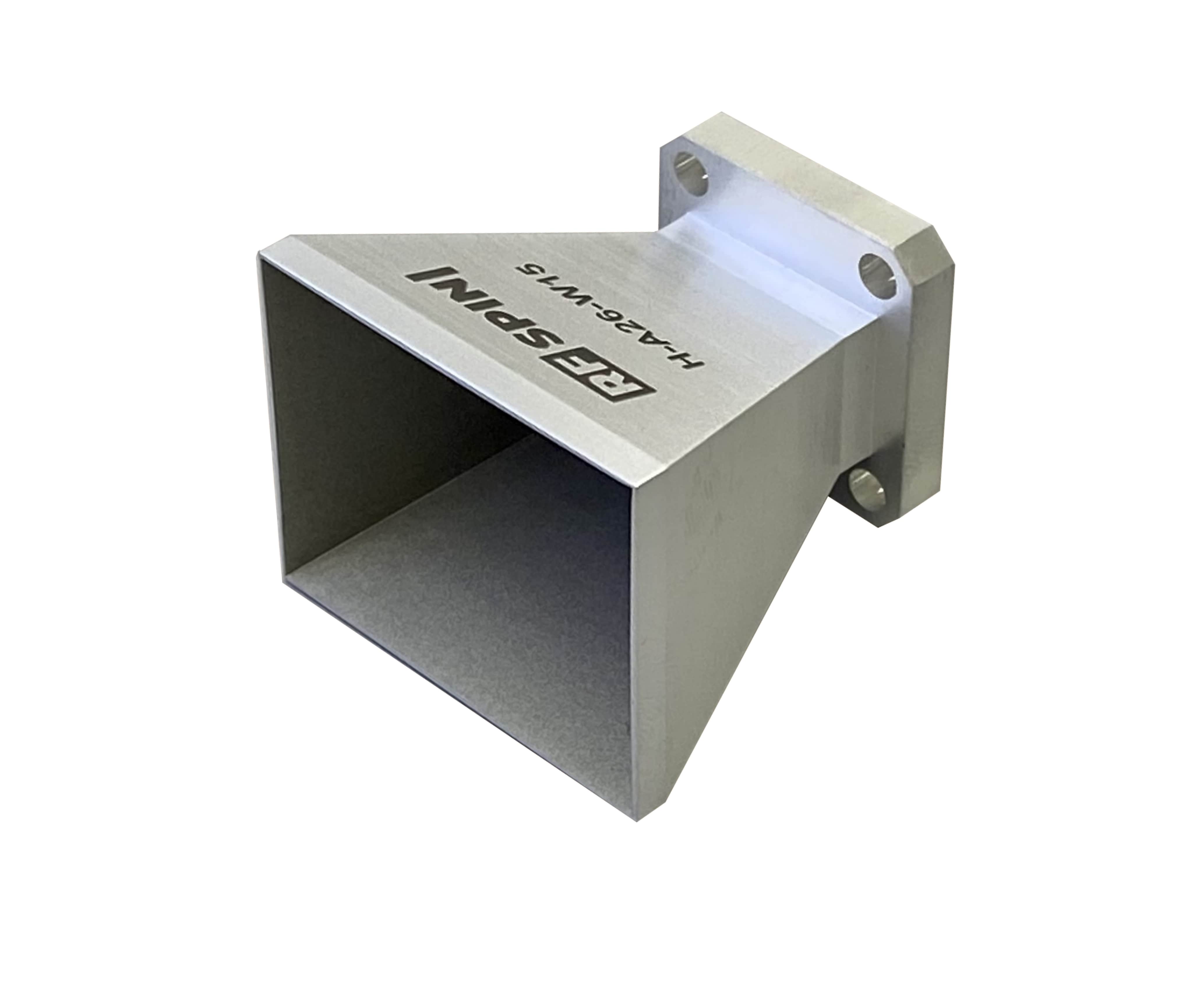

Pyramidal Horn Antenna
Pyramidal horn antenna with the surface finish from Alodine 2040. H-A26-W15 pyramidal horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements. The operating frequency is from 18 GHz up to 26.5 GHz with a flat Gain of 15 dBi. The H-A26-W15 can be supplemented with a corresponding Waveguide to Coax Adapter.
Availability: Most products are on stock. Please contact us for more information or large quantity orders.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
Product Packaging Includes
- Antenna
Product Parameters
Product identification
- Product Name H-A26-W15
- Product Category Pyramidal Horn Antenna
Electrical specifications
- Frequency Range 18 GHz – 26.5 GHz
- VSWR (max.) 1.14
- VSWR (avg.) 1.1
- Waveguide Size WR42
- Waveguide Flange UBR 220
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Packaging and Accessories
What's in a box
- H-A26-W15 Antenna
Accessories
- Standard mounting flange
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
