H-A18-W15 Pyramidal Horn Antenna | 12.4 GHz – 18 GHz

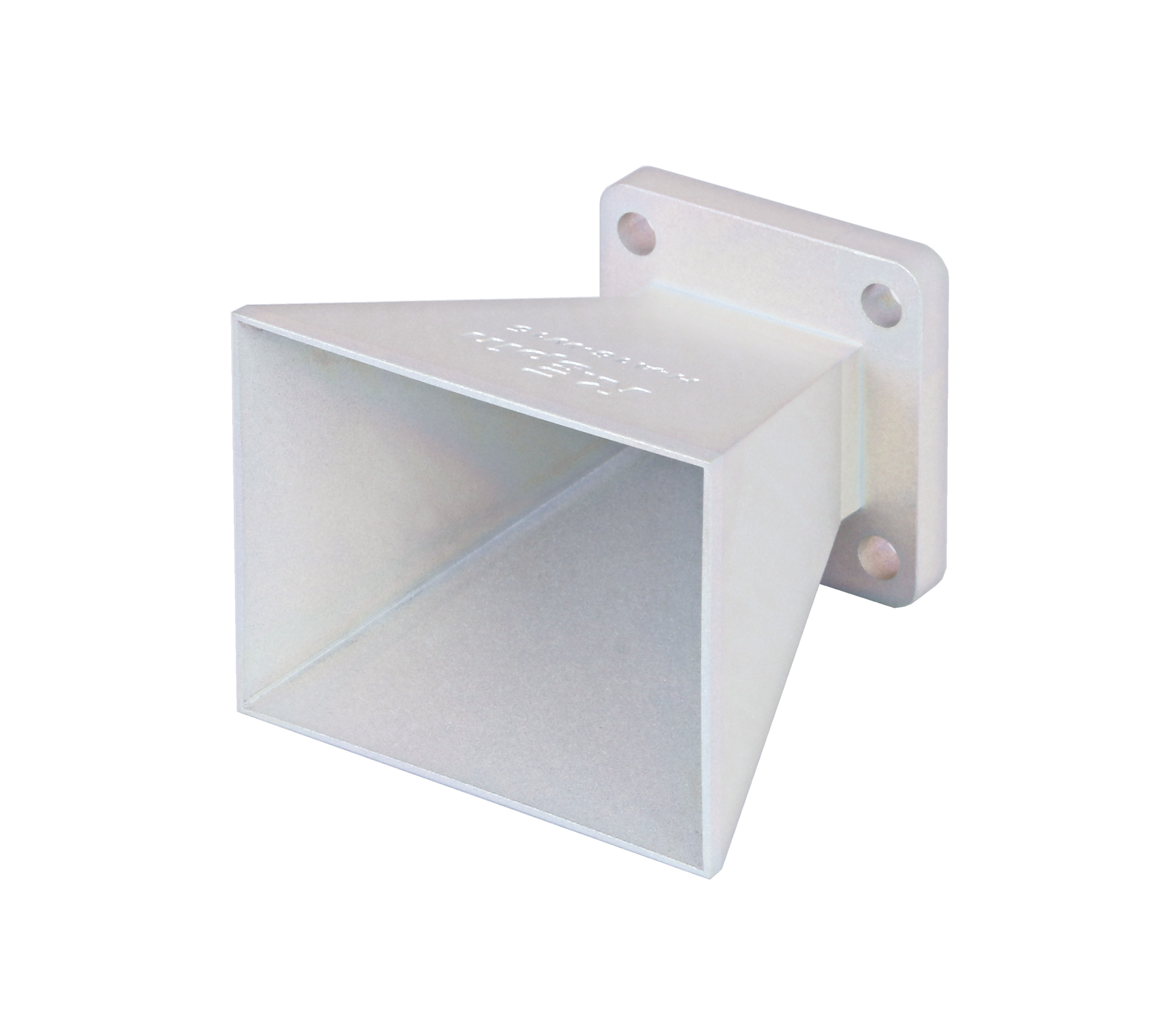

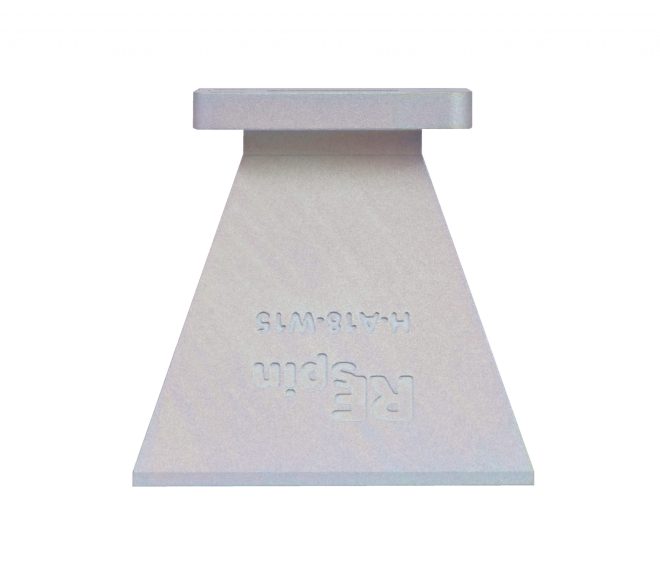

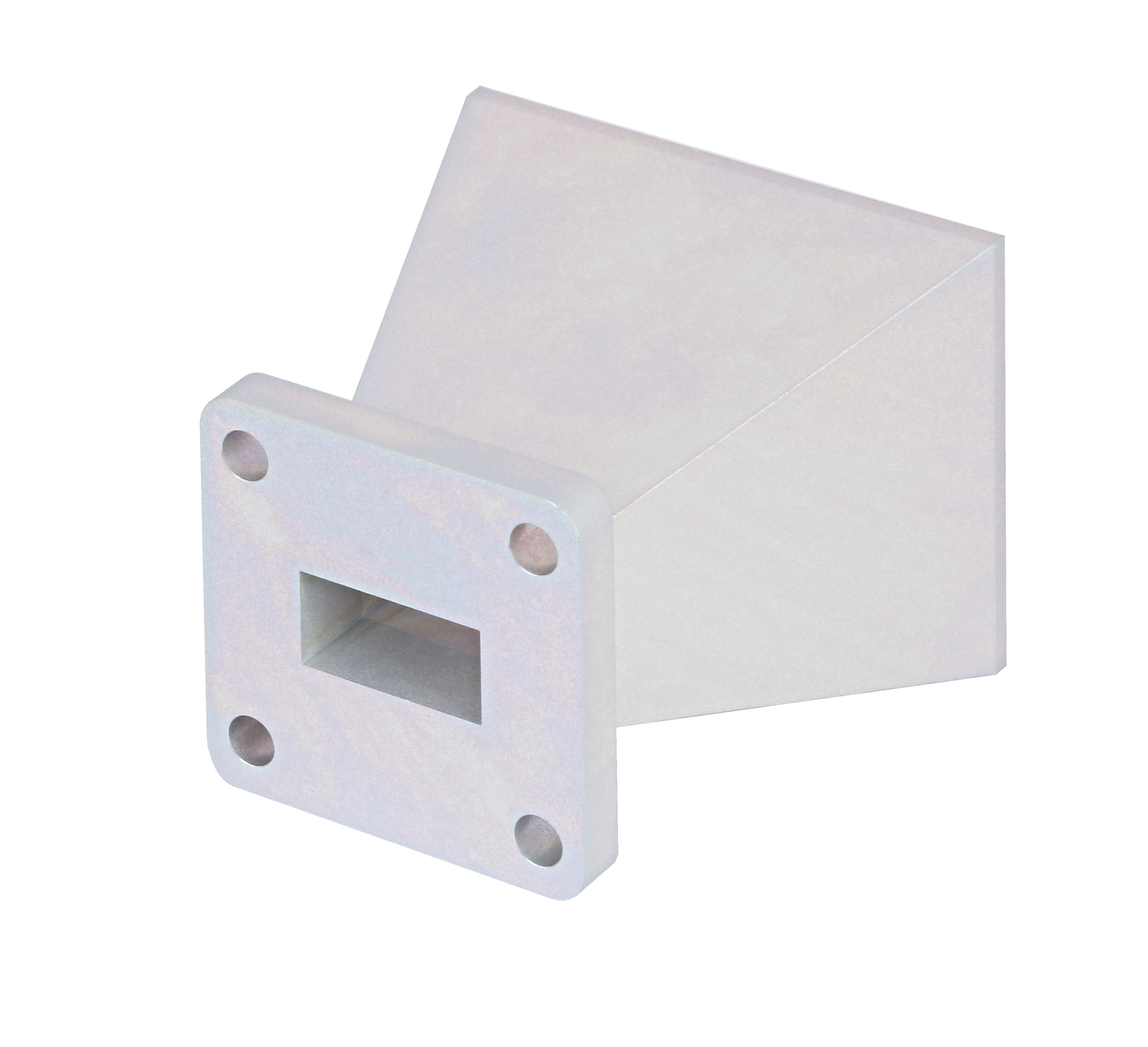

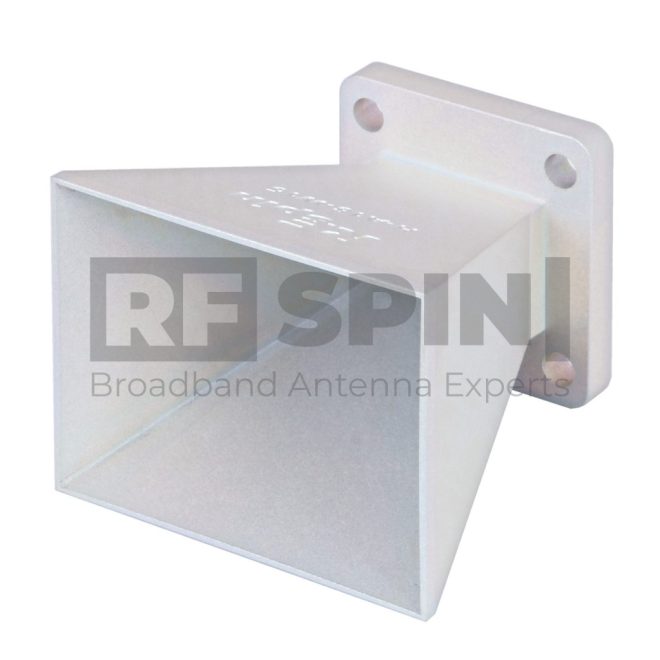

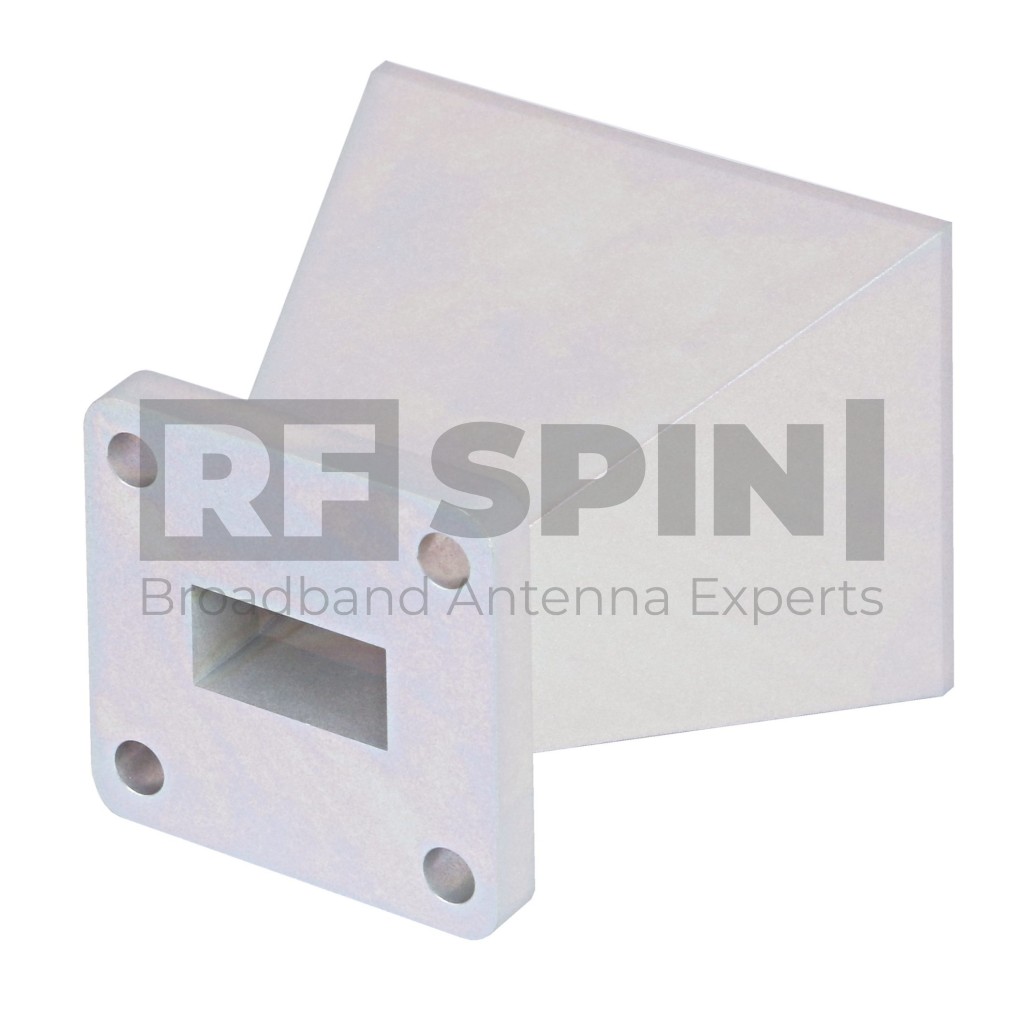

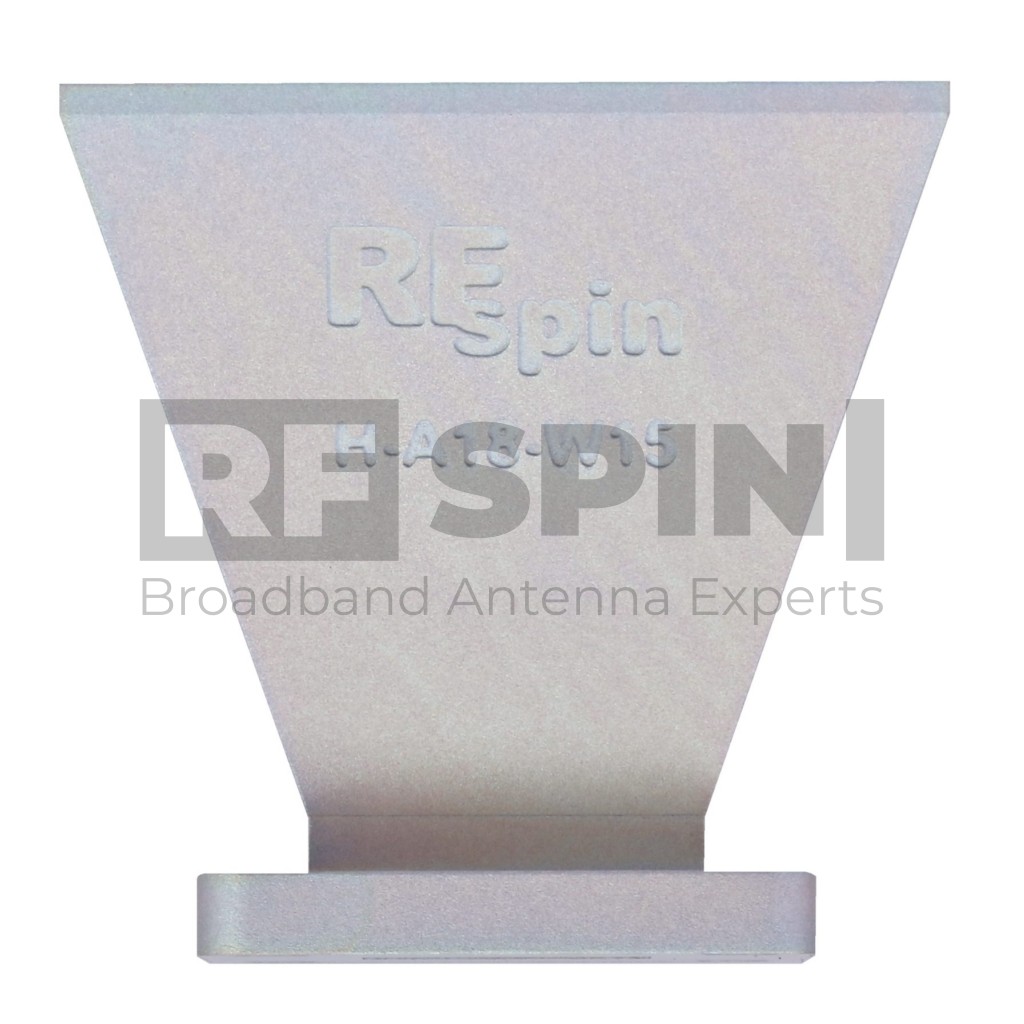

Pyramidal horn antenna with the surface finish from Alodine 2040. H-A18-W15 pyramidal horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements. The operating frequency is from 12.4 GHz up to 18 GHz with a flat Gain of 15 dBi. The H-A18-W15 can be supplemented with a corresponding Waveguide to Coax Adapter.

Frequency Range

12.4 GHz – 18 GHz

VSWR (avg.)

1.1

Gain

14 – 16 dBi

Polarization

Linear

REQUEST QUOTE

In Stock: 5 pcs

Ships in 2 days

Features and Specifications

Technical Performance

Wide bandwidth
Low return loss

Design and Surface Treatment

Corrosion-resistant coating

Manufacturing Technology

Manufactured using a high grade aluminum alloy
Extremely durable

Product Packaging Includes

Antenna

Product Parameters

Product identification

Product Name H-A18-W15
Product Category Pyramidal Horn Antenna

Electrical specifications

Frequency Range 12.4 GHz – 18 GHz
VSWR (max.) 1.14
VSWR (avg.) 1.1
Waveguide Size WR62
Waveguide Flange UG-1665/U
Polarization Linear

Physical specifications

Width 47.7 mm (1.878 in)
Height 46.6 mm (1.835 in)
Depth 37.7 mm (1.484 in)
Weight 0.038 kg (0.084 lb)

Operating conditions

Rated Temperature Range 0°C – +50°C
Storage Temperature Range -20°C – +70°C

Parameters and Performance

Typical parameters

VSWR

Gain

Antenna Factor

Beamwidth

Packaging and Accessories

What's in a box

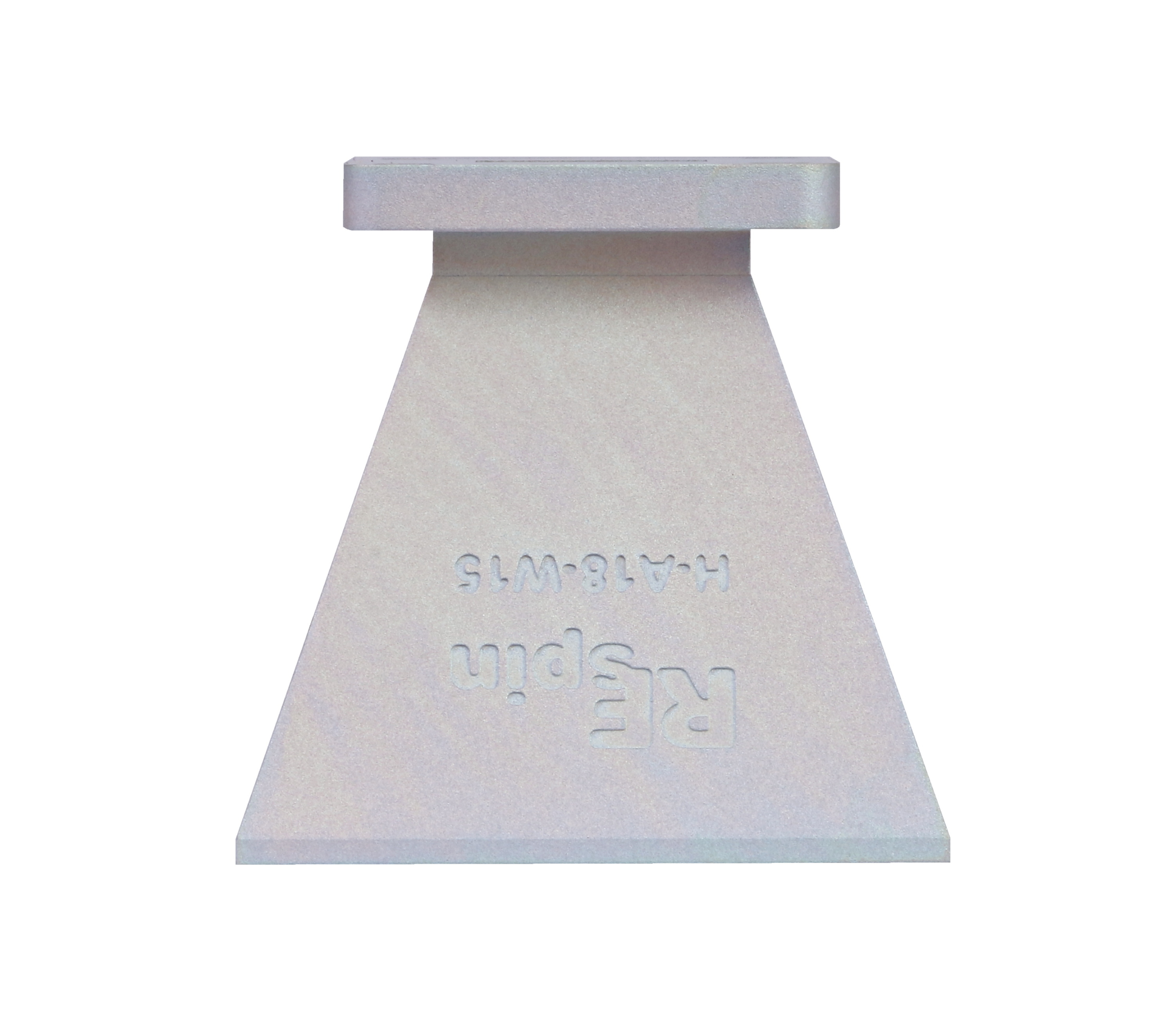

H-A18-W15 Antenna

Accessories

Standard mounting flange

Manufacturer Information

About Datasheet

Product information available also online at https://www.rfspin.com/product/h-a18-w15/

Data and specifications subject to change without notice.

Datasheet revision 03-2025.

Address
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic

E-mail
info@rfspin.com

Phone
+420 245 008 847
