        RF SPIN

        Broadband Antenna Solutions

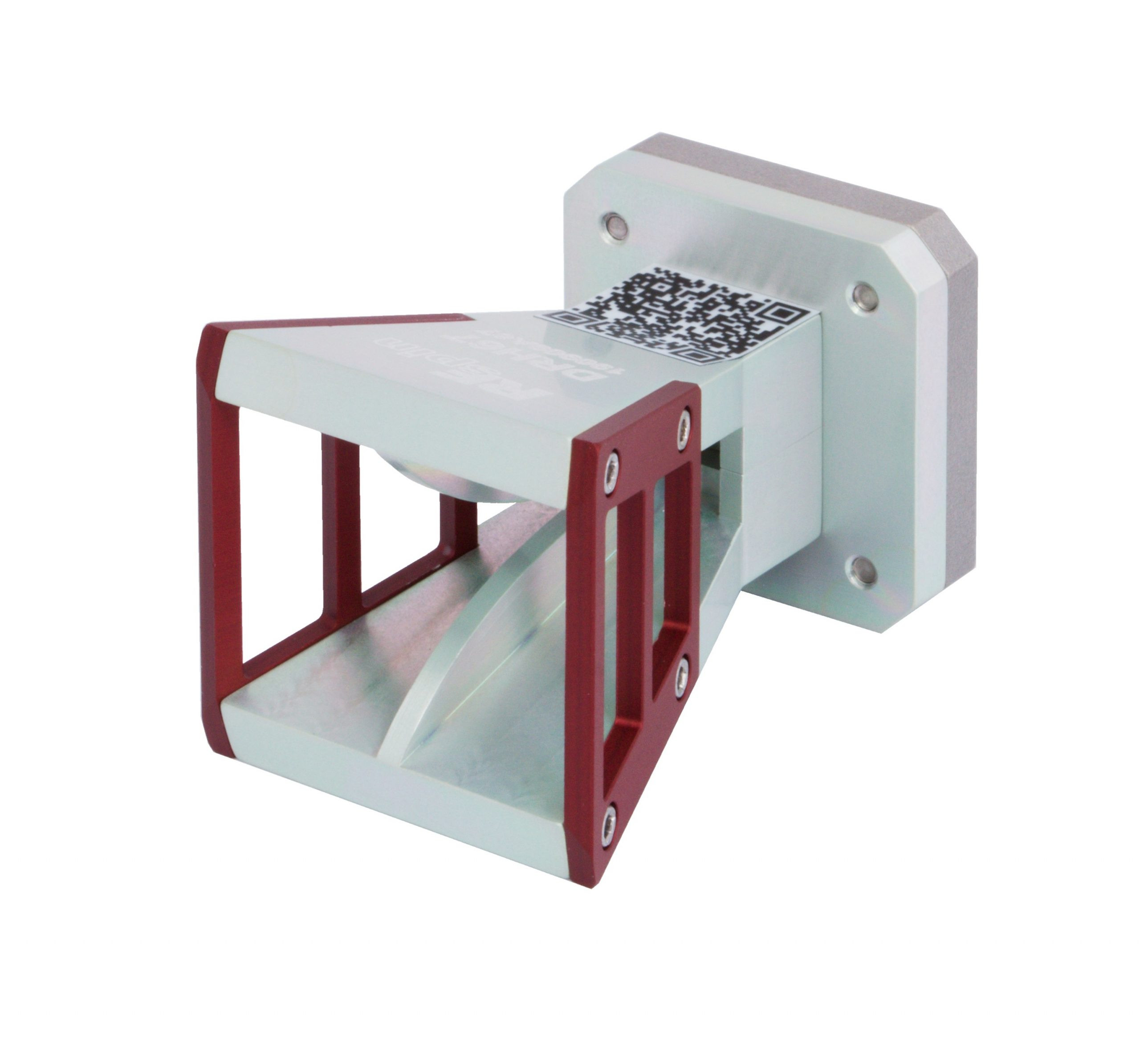

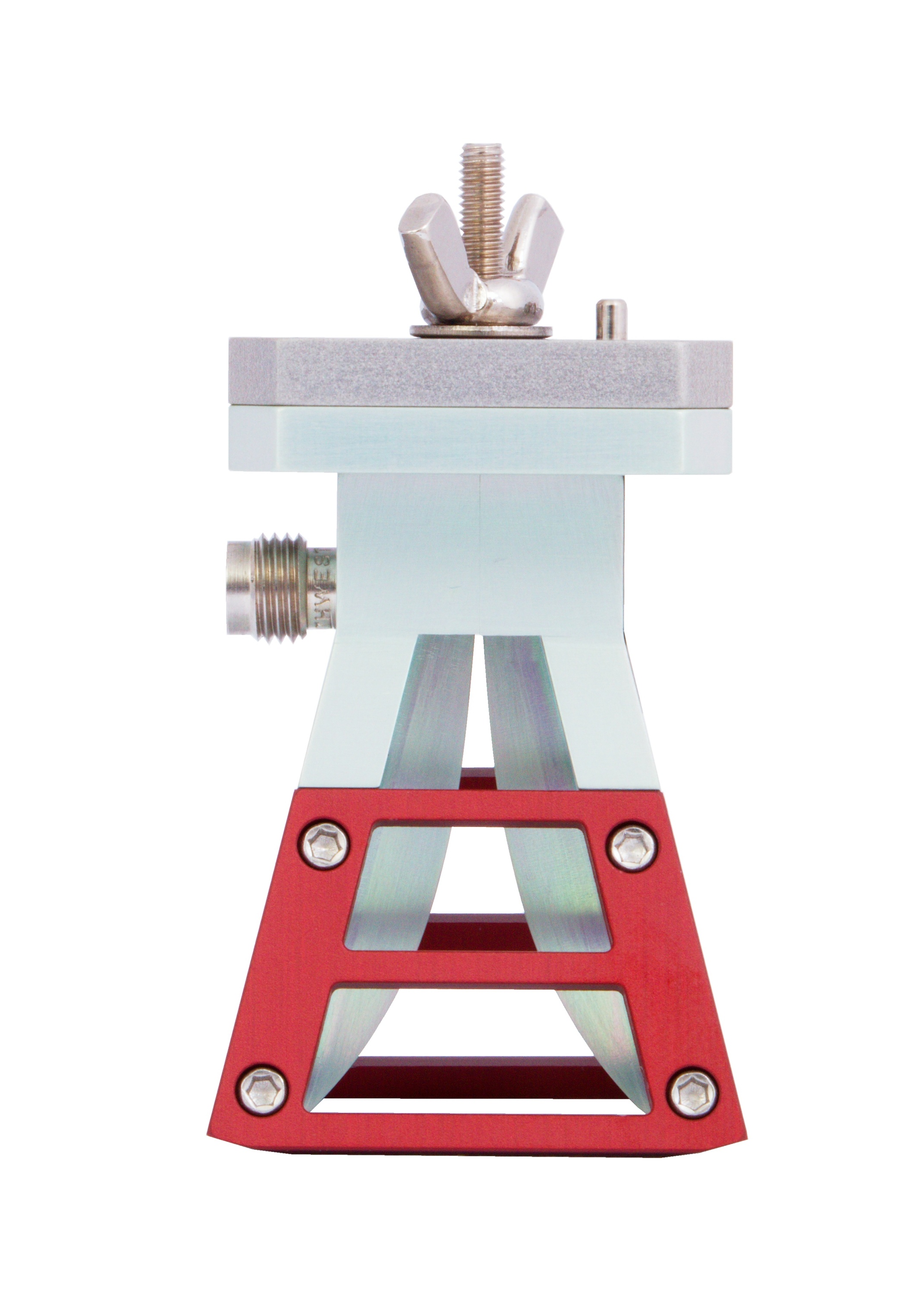

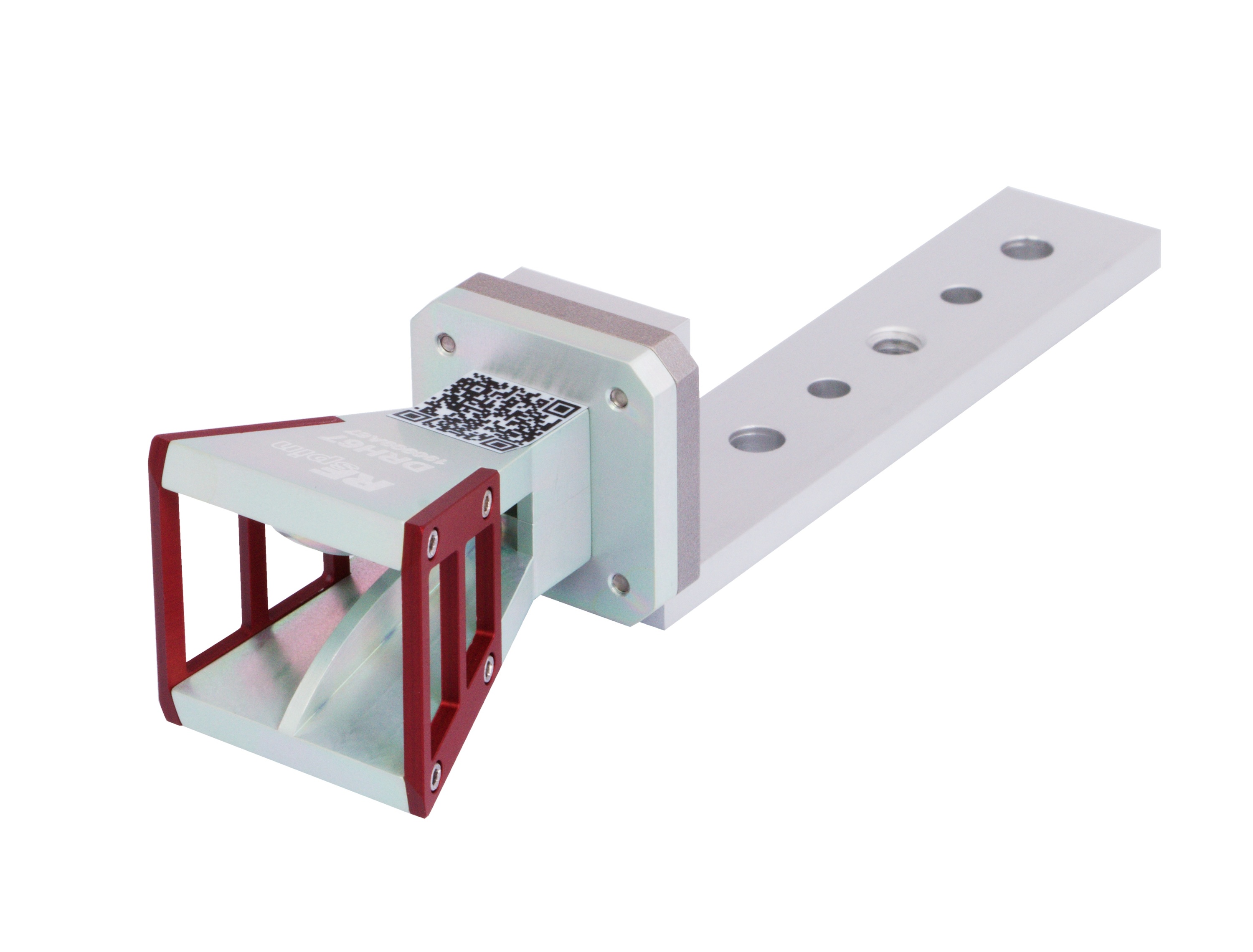

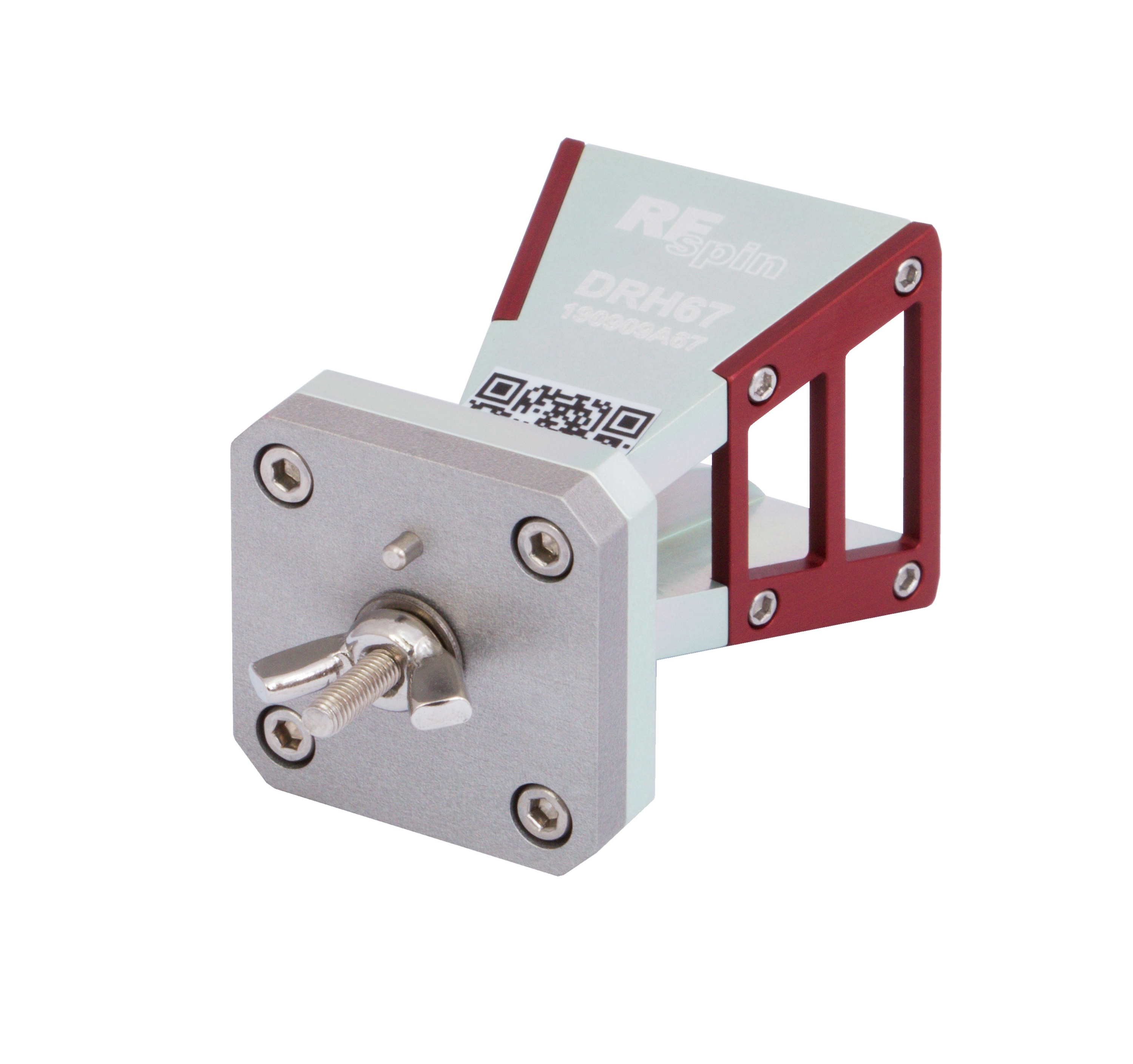

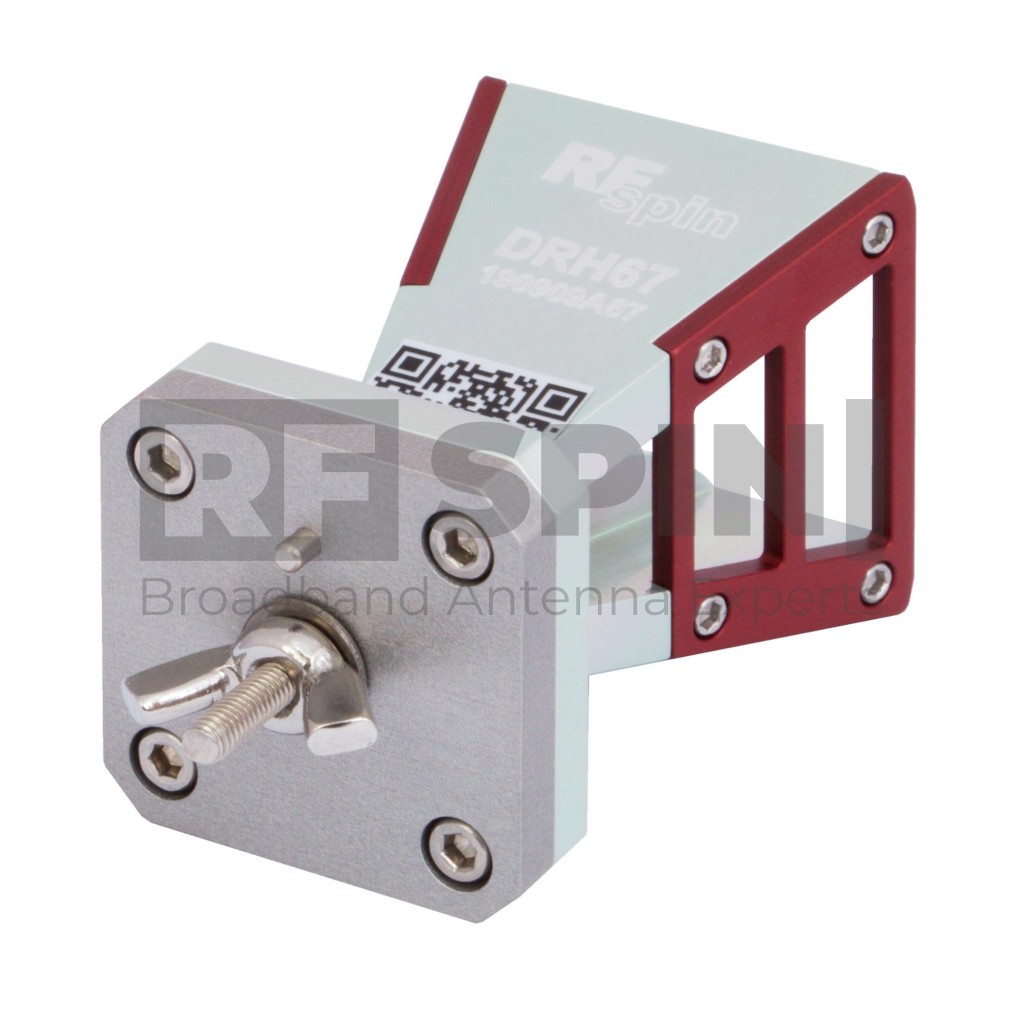

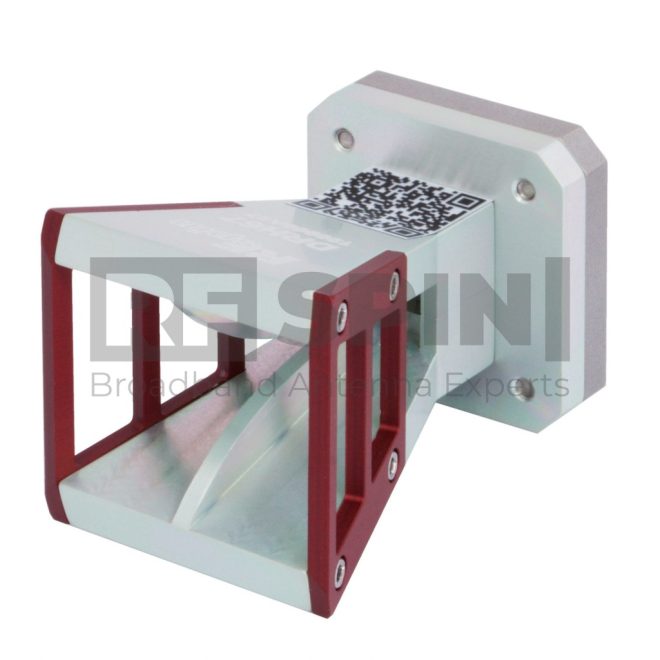

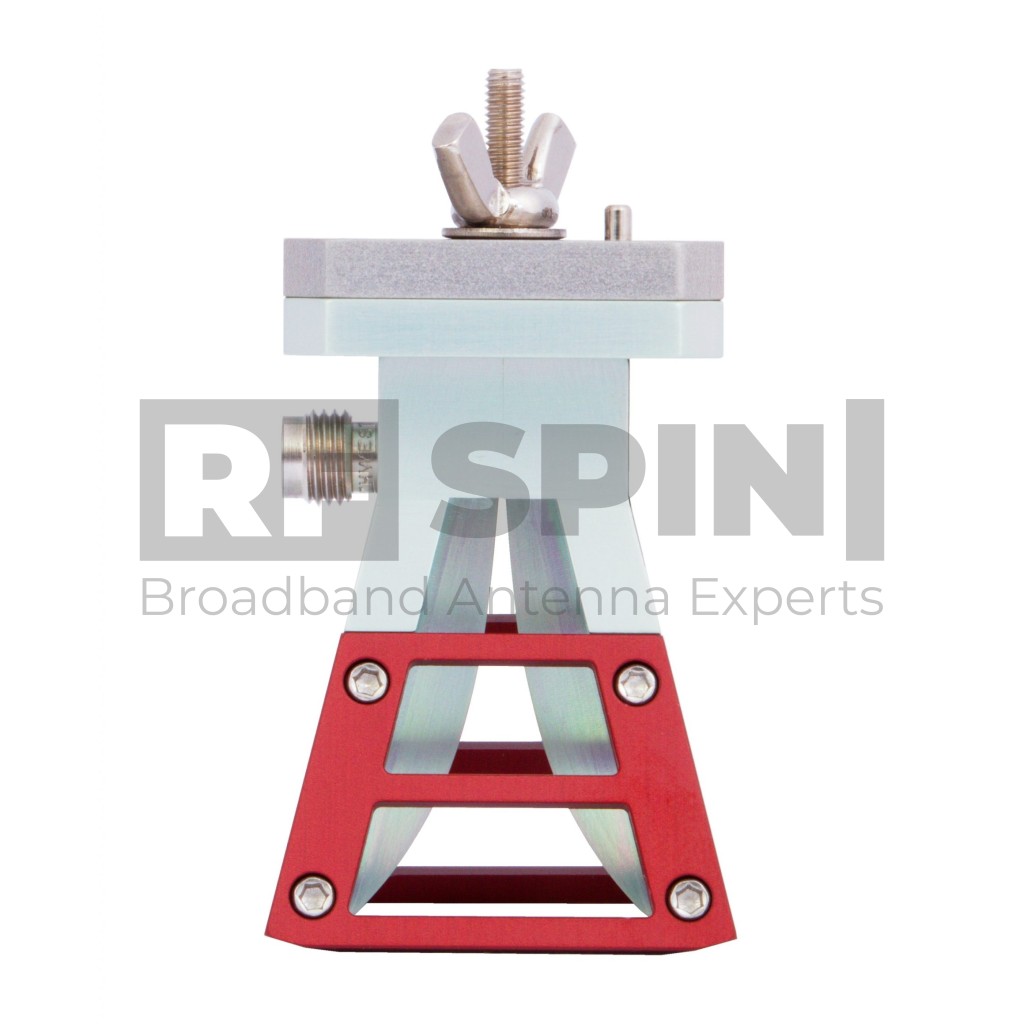

        DRH67

        Double Ridged Horn Antenna

        online calibration protocol & dataset available

        The DRH67 antenna combines small dimensions with high accuracy and perfect electrical parameters. For safe storage, it is placed in a tailor-made wooden box, which guarantees that your antenna will always be in the best condition.

        Frequency Range
        6 GHz – 67 GHz
        VSWR (avg.)
        1.35
        Gain
        7 - 21.5 dBi
        Impedance
        50 Ohm
        Connector
        1.85mm (female)
        Power (CW / Peak)
        5 W / 10 W
        Polarization
        Linear
        In Stock: 10+ pcs
        Ships in 2 days

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Storage in protective tailor-made wooden box

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality 1.85mm type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH67
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 6 GHz – 67 GHz
        • VSWR (max.) 1.9
        • VSWR (avg.) 1.35
        • Impedance 50 Ohm
        • Connector 1.85mm (female)
        • Power (CW / Peak) 5 W / 10 W
        • Antenna Factor 38.5 – 50.5 dB/m
        • Polarization Linear

        Physical specifications

        • Width 32.7 mm (1.287 in)
        • Height 48.5 mm (1.909 in)
        • Depth 32 mm (1.260 in)
        • Weight 0.05 kg (0.110 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

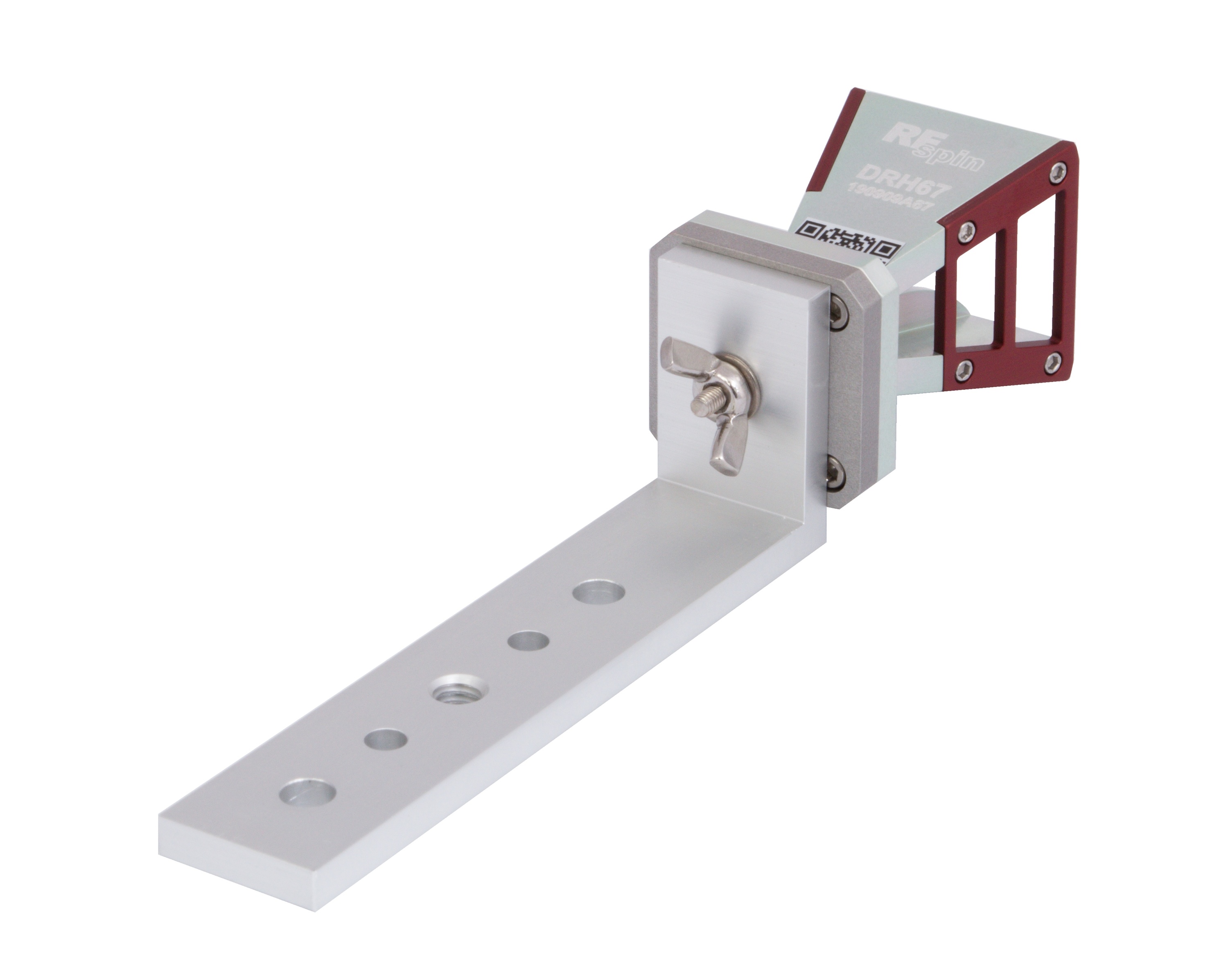

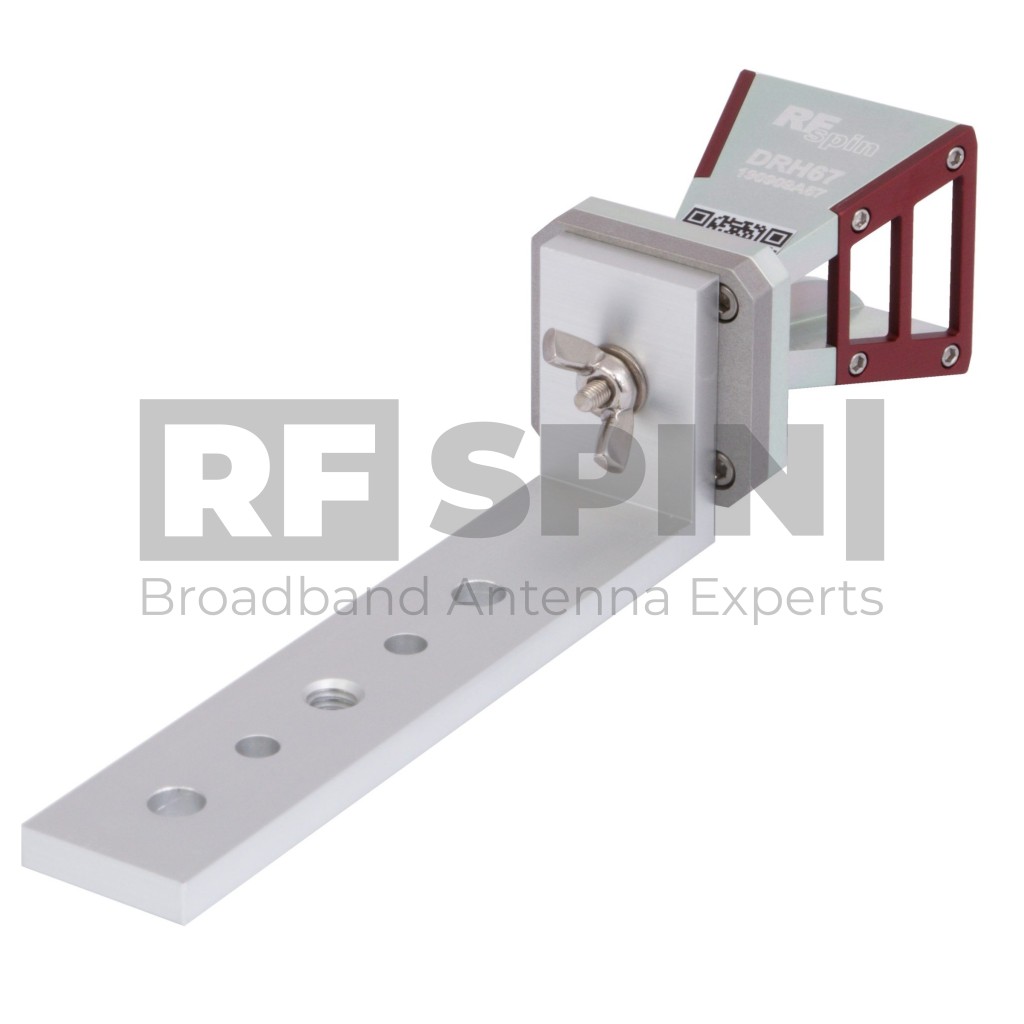

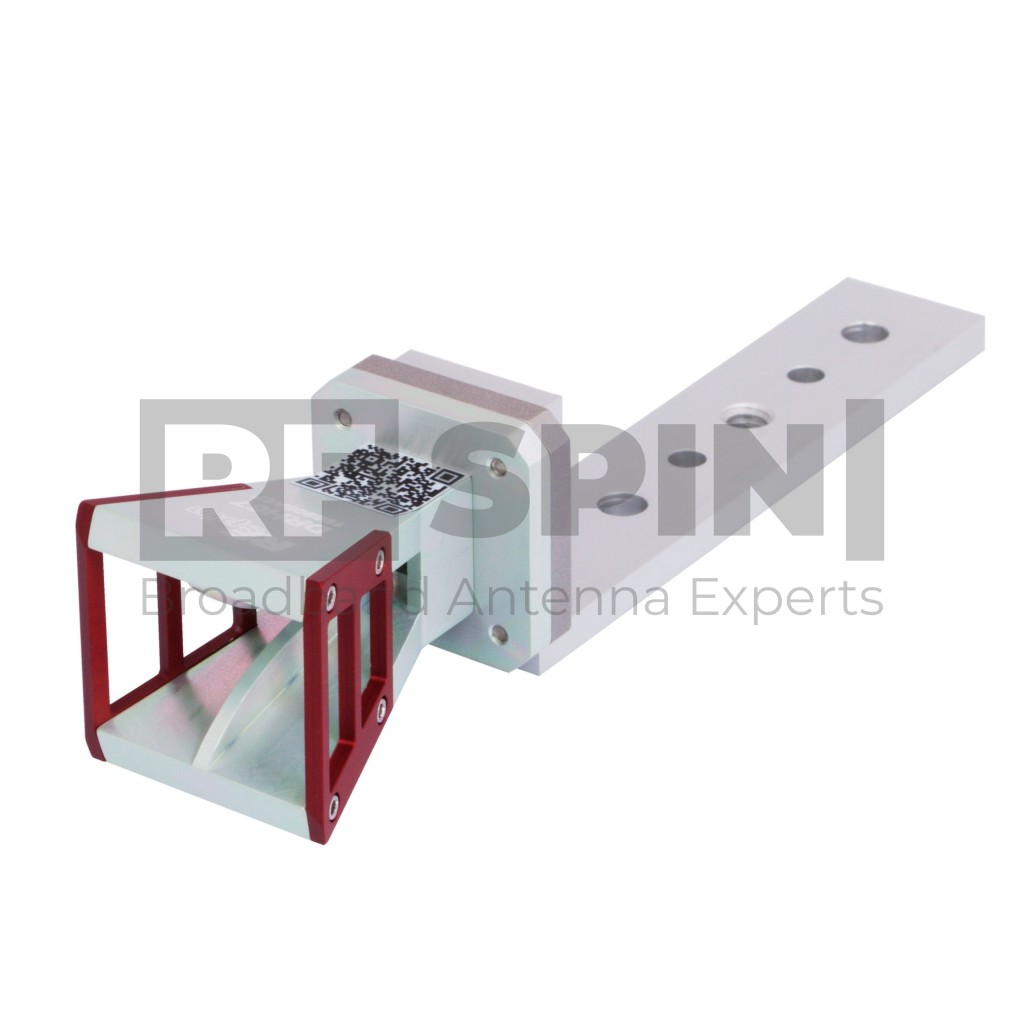

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH67 - VSWR

        Gain

        DRH67 - Gain

        Antenna Factor

        DRH67 - Antenna Factor

        Cross Polarization

        DRH67 - Cross Polarization

        Beamwidth

        Port A, E plane

        DRH67 - Port A, E plane

        Port A, H plane

        DRH67 - Port A, H plane

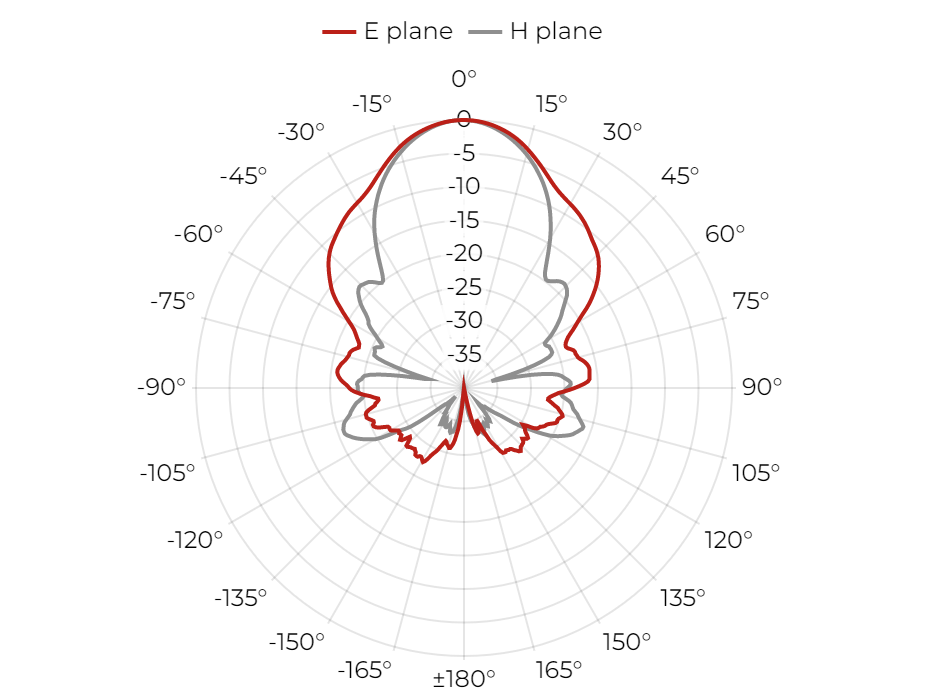

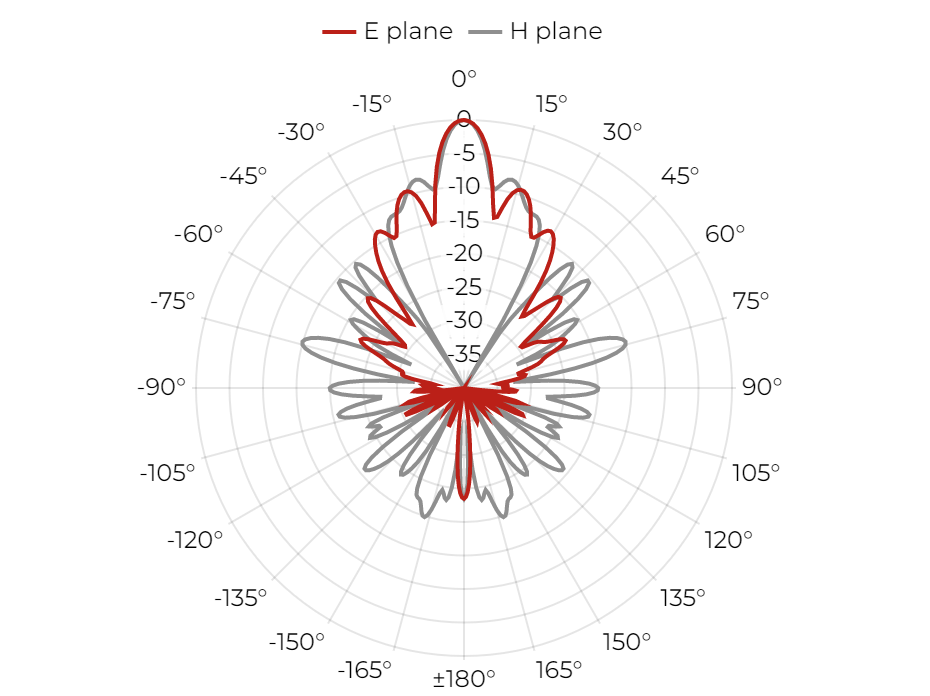

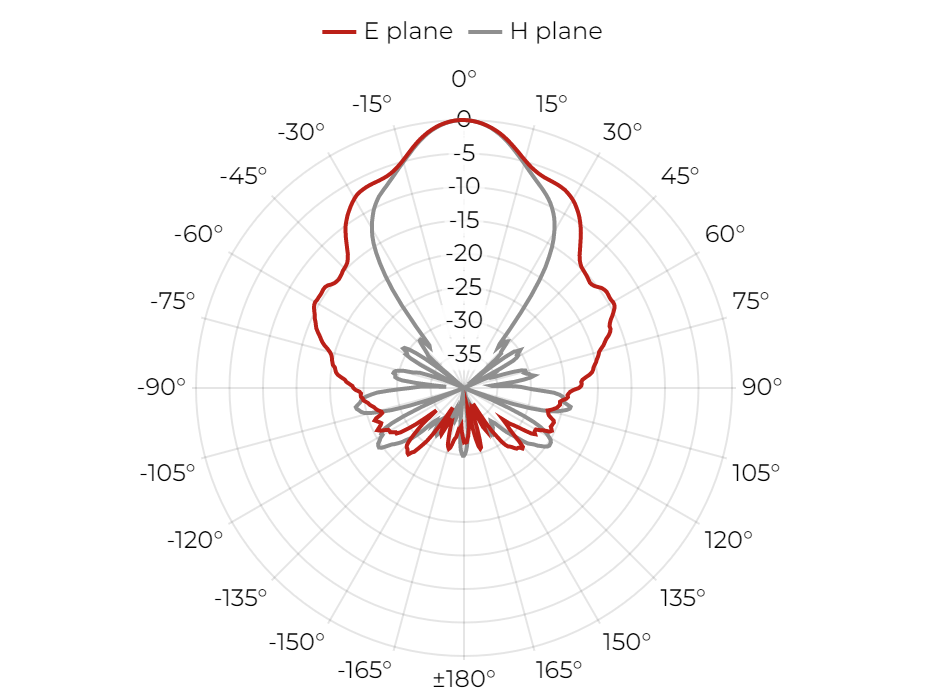

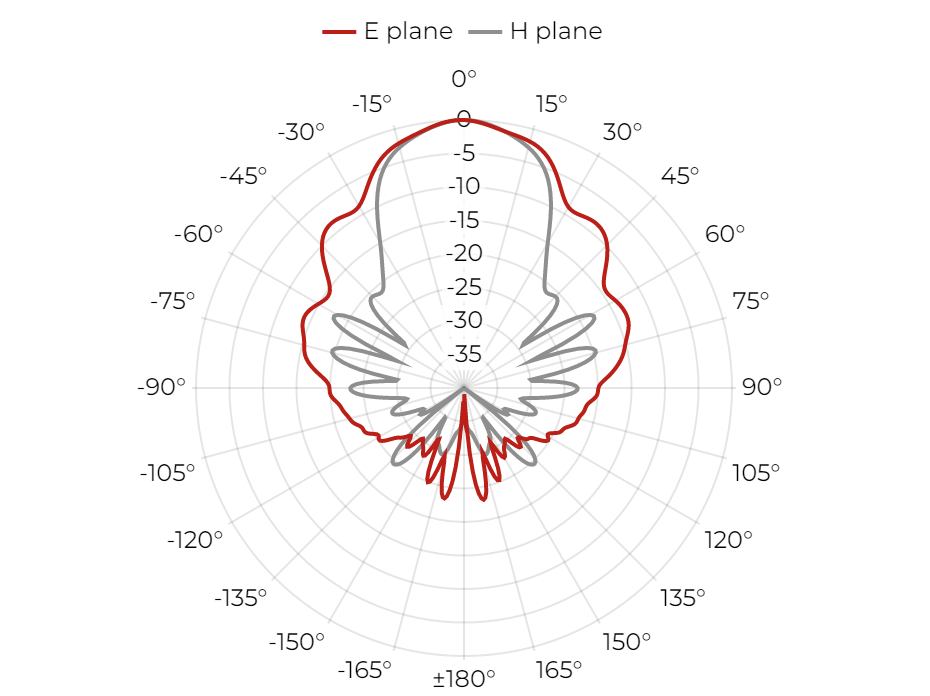

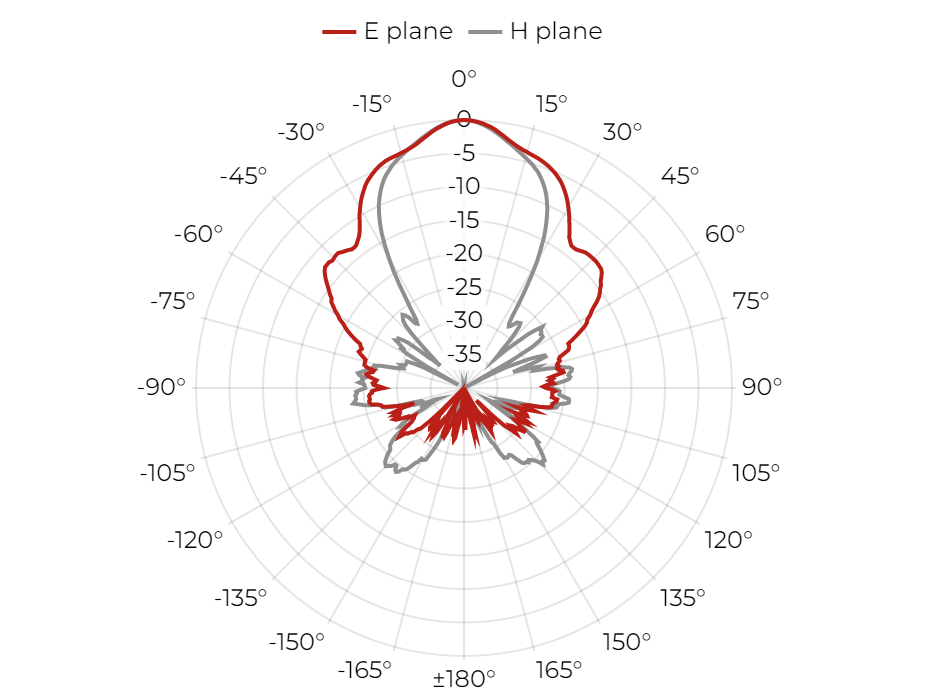

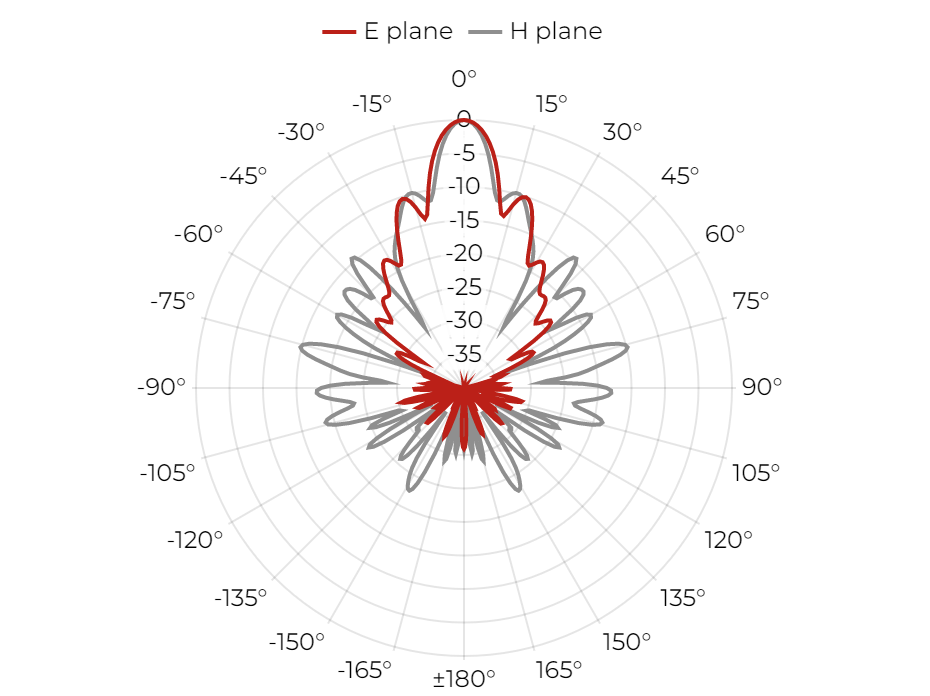

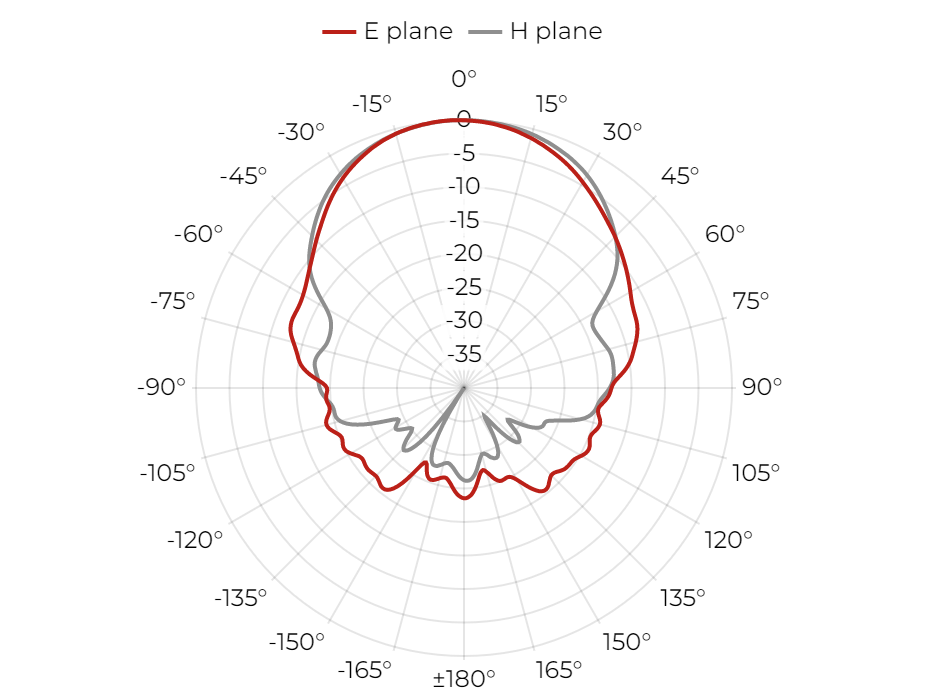

        Radiation Patterns

        6 GHz

        DRH67 - 6 GHz

        10 GHz

        DRH67 - 10 GHz

        16 GHz

        DRH67 - 16 GHz

        22 GHz

        DRH67 - 22 GHz

        Packaging and Accessories

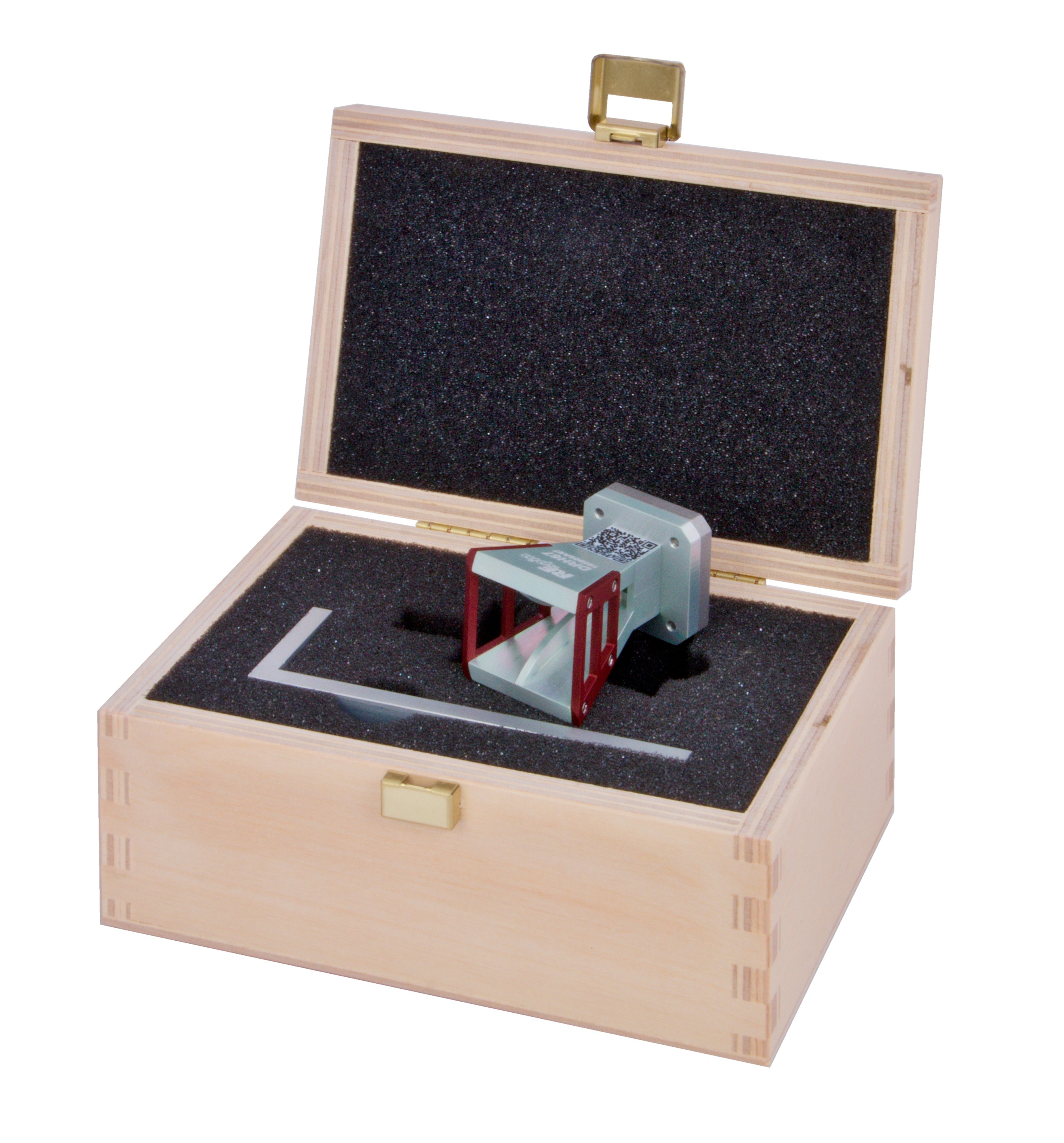

        What's in a box

        • DRH67 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Protective wooden case
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Protective wooden case
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
