        RF SPIN

        Broadband Antenna Solutions

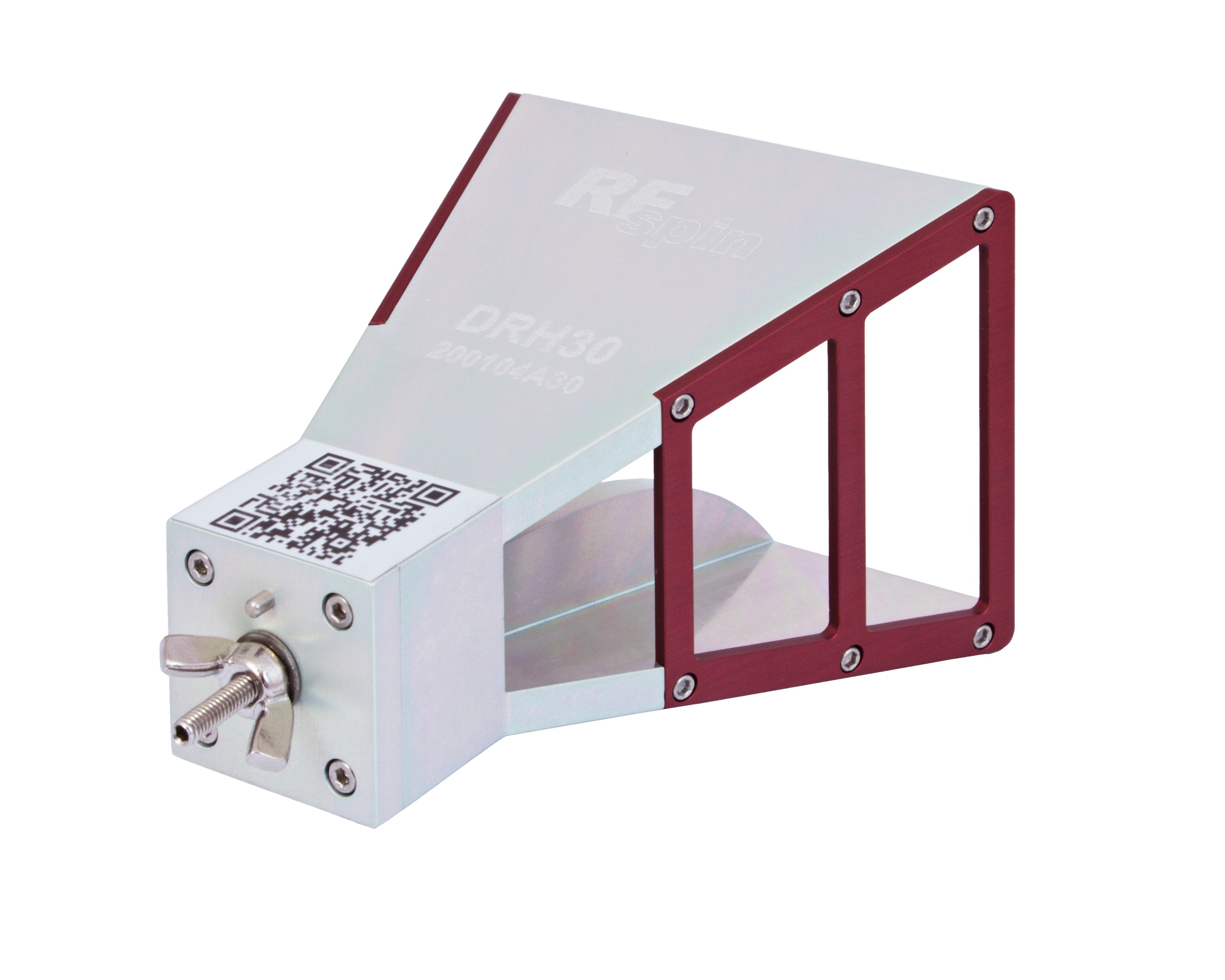

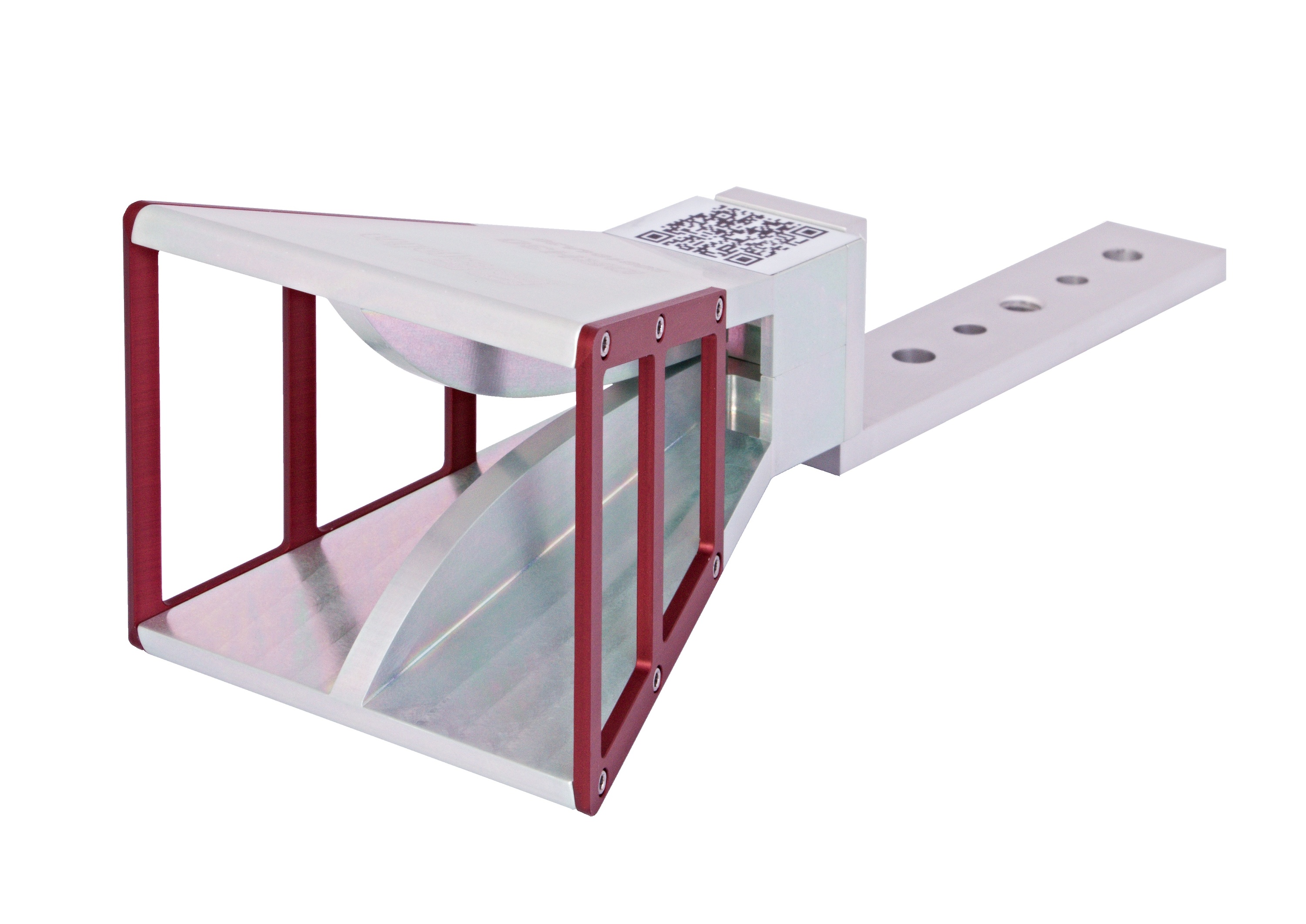

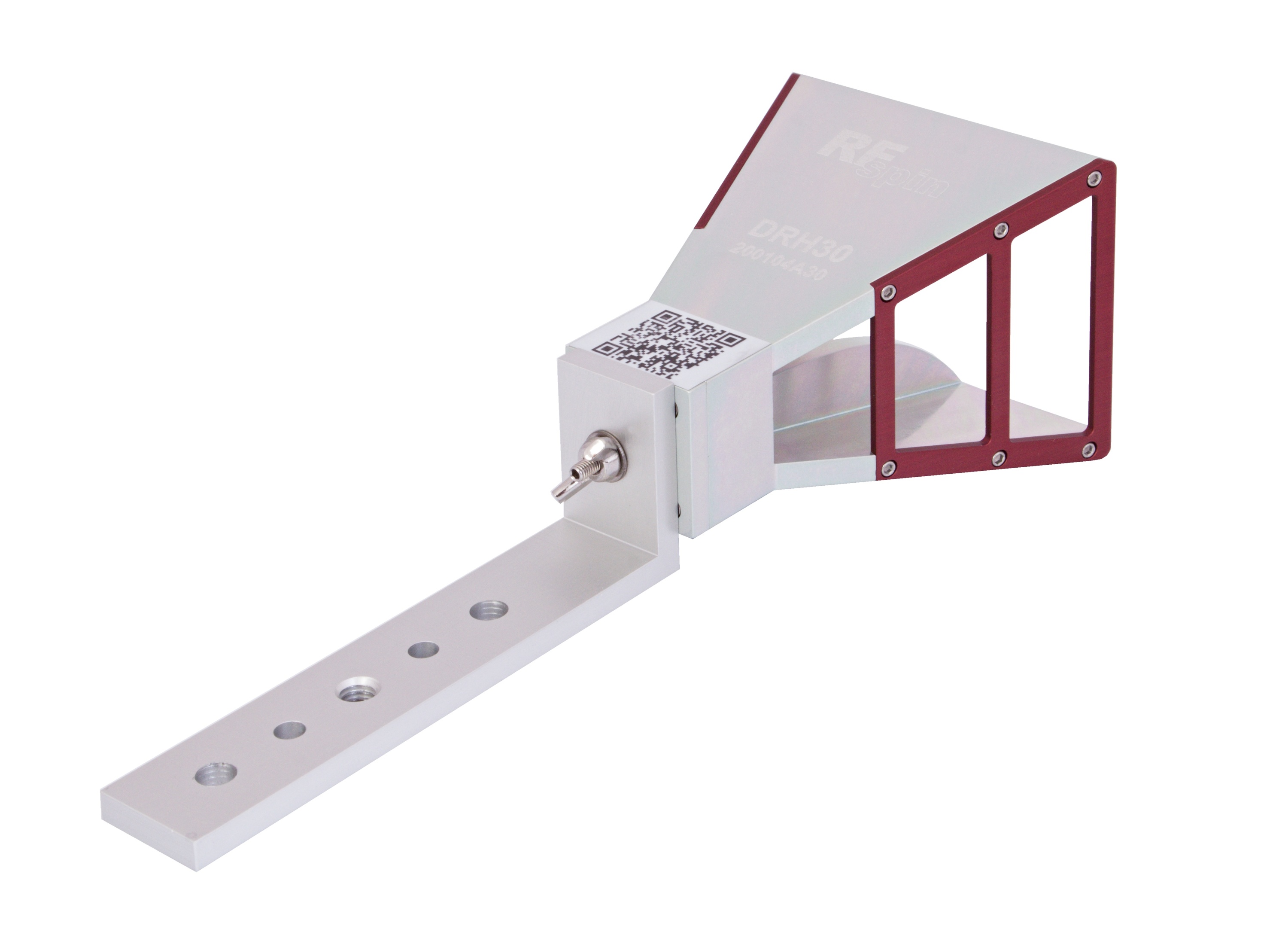

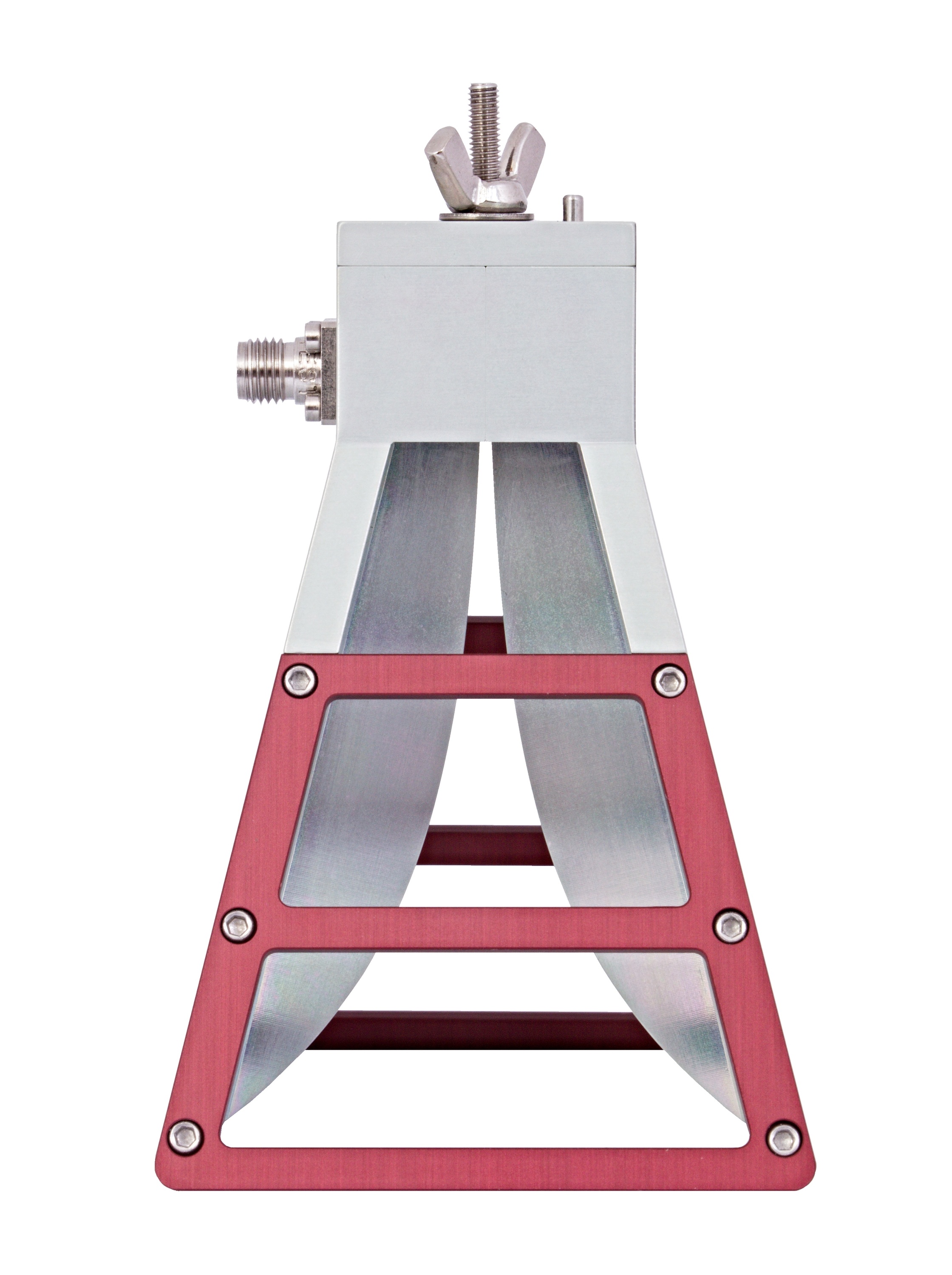

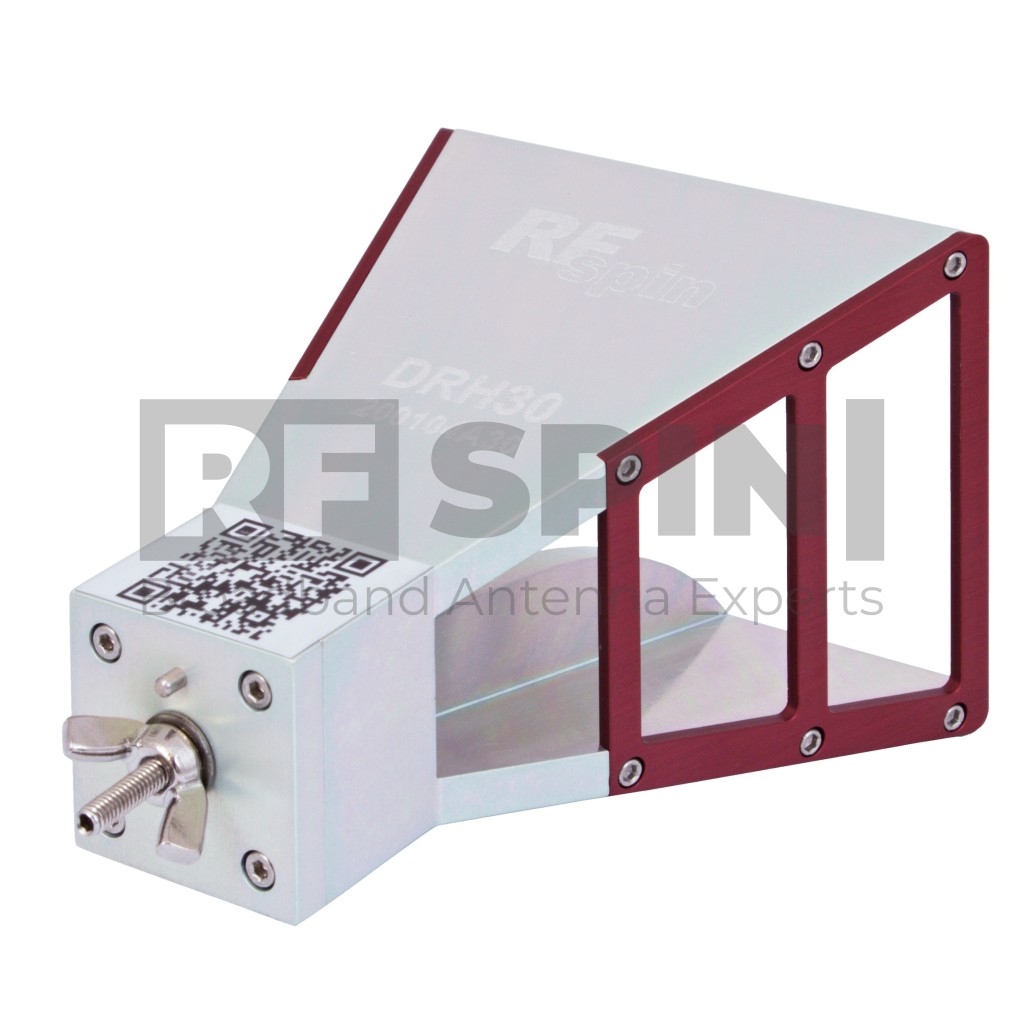

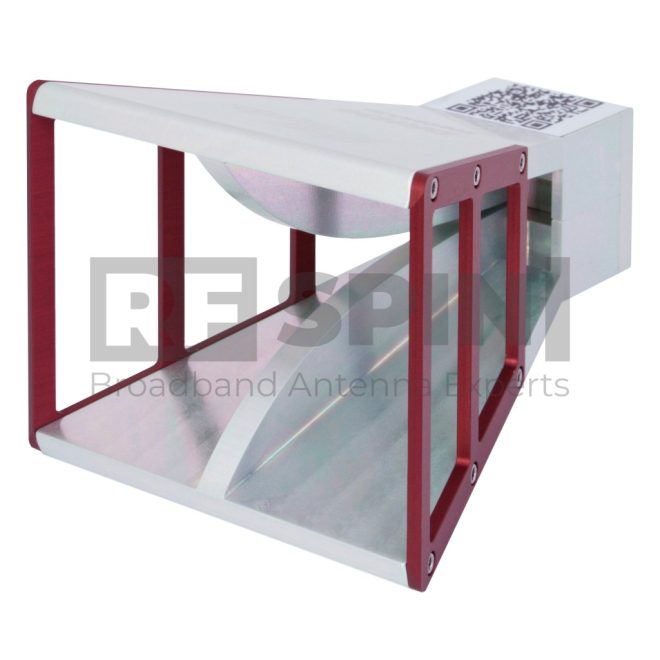

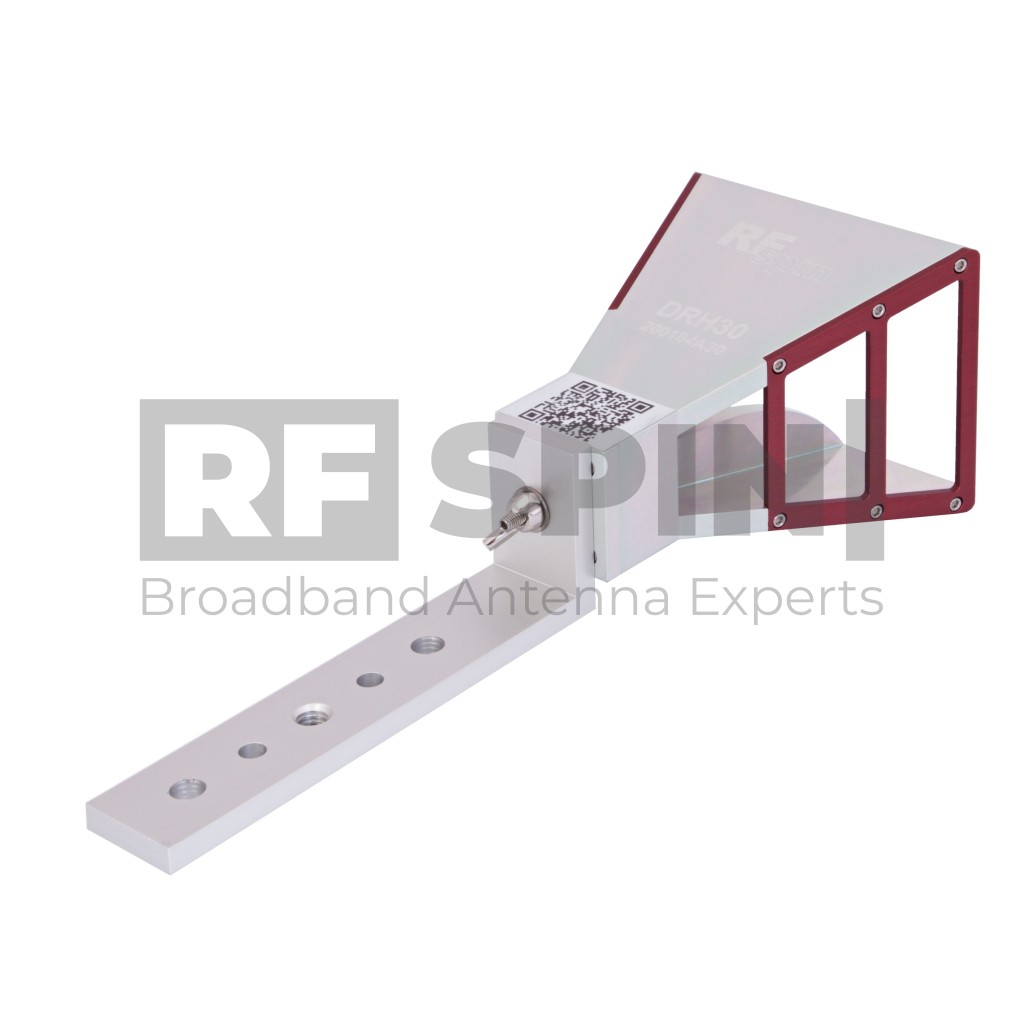

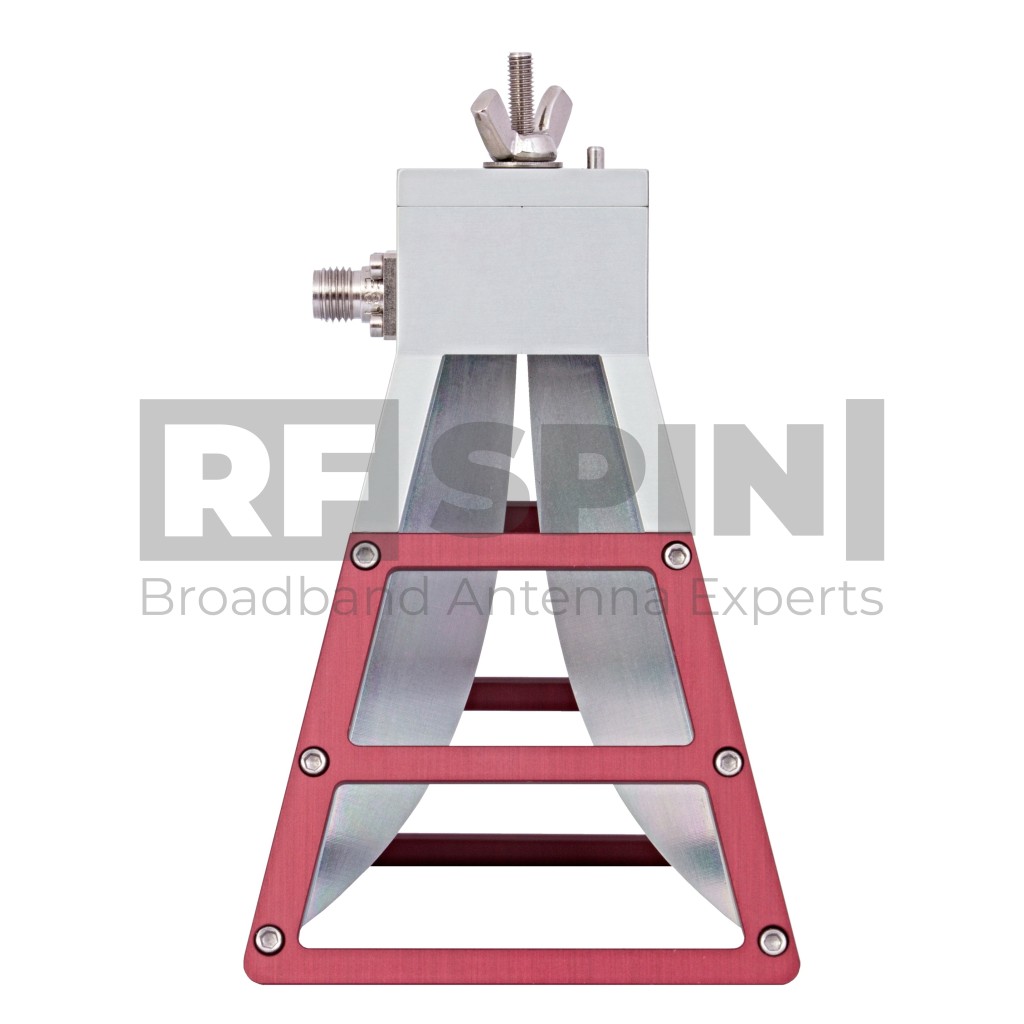

        DRH30

        Double Ridged Horn Antenna

        online calibration protocol & dataset available

        The DRH30 antenna combines small dimensions with high accuracy and perfect electrical parameters. It is specially developed for 5G frequency band.

        Frequency Range
        2.5 GHz – 30 GHz
        VSWR (avg.)
        1.25
        Gain
        5 - 20 dBi
        Impedance
        50 Ohm
        Connector
        K (female)
        Power (CW / Peak)
        25 W / 50 W
        Polarization
        Linear
        In Stock: 10+ pcs
        Ships in 2 days

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality K type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH30
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 2.5 GHz – 30 GHz
        • VSWR (max.) 1.6
        • VSWR (avg.) 1.25
        • Impedance 50 Ohm
        • Connector K (female)
        • Power (CW / Peak) 25 W / 50 W
        • Antenna Factor 32 – 45 dB/m
        • Polarization Linear

        Physical specifications

        • Width 70.3 mm (2.768 in)
        • Height 83.7 mm (3.295 in)
        • Depth 57.2 mm (2.252 in)
        • Weight 0.138 kg (0.304 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

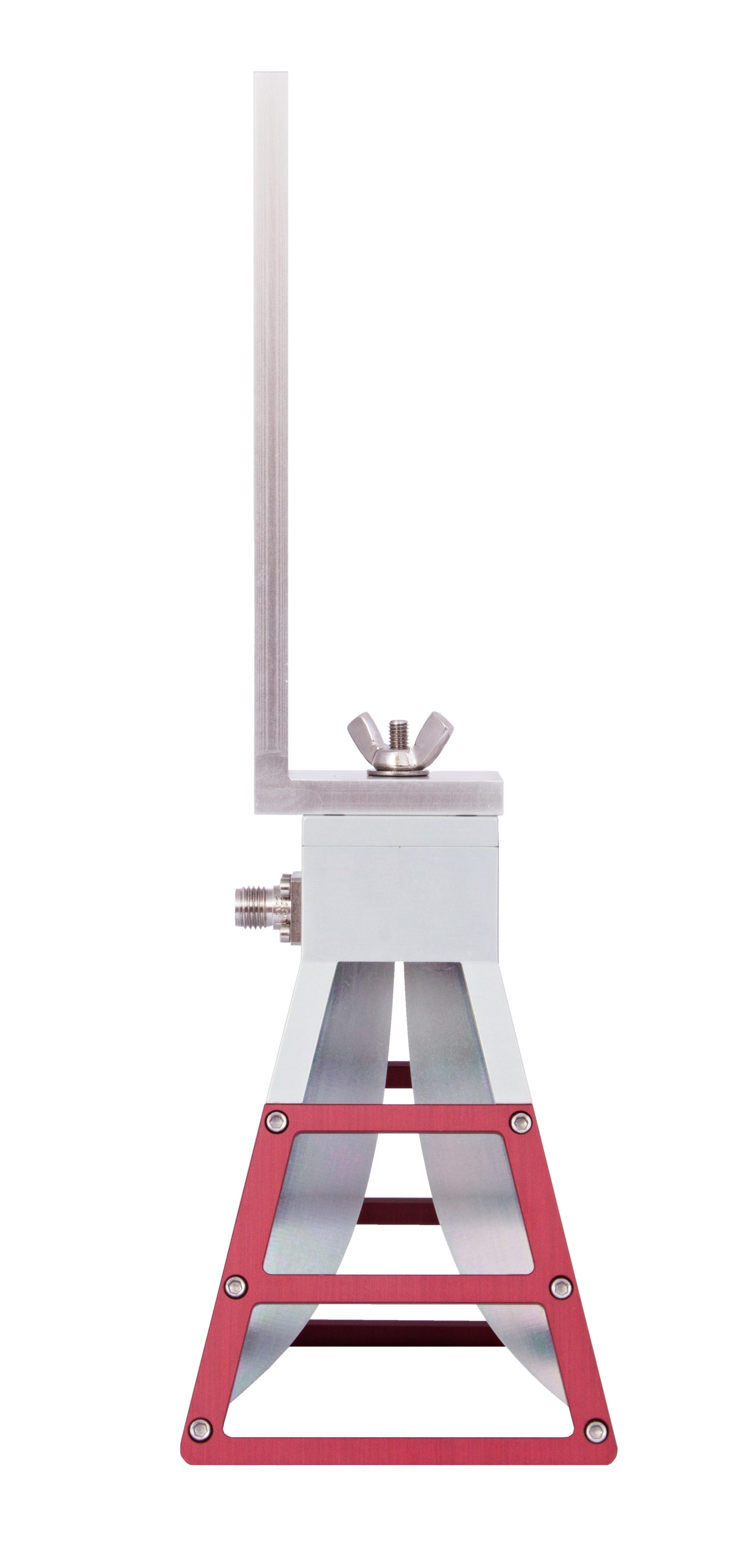

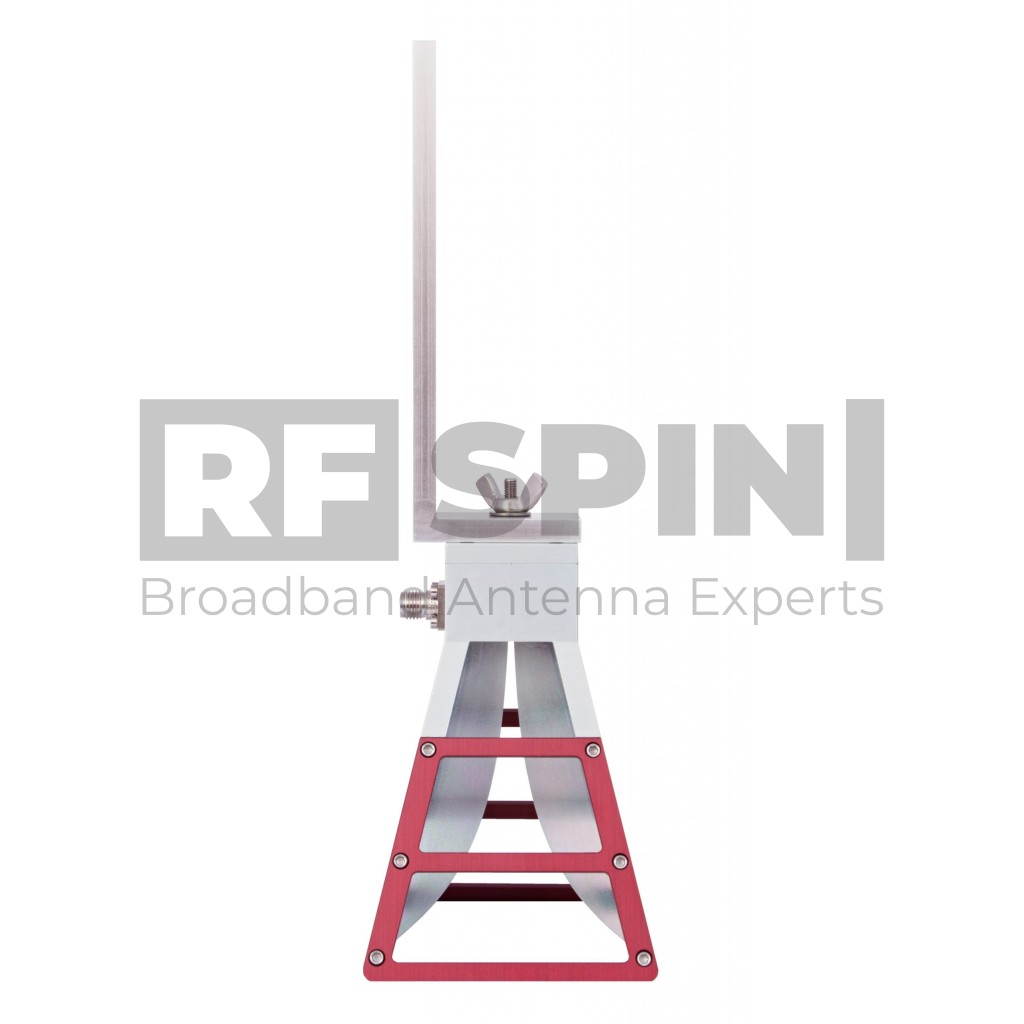

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH30 - VSWR

        Gain

        DRH30 - Gain

        Antenna Factor

        DRH30 - Antenna Factor

        Cross Polarization

        DRH30 - Cross Polarization

        Beamwidth

        Port A, E plane

        DRH30 - Port A, E plane

        Port A, H plane

        DRH30 - Port A, H plane

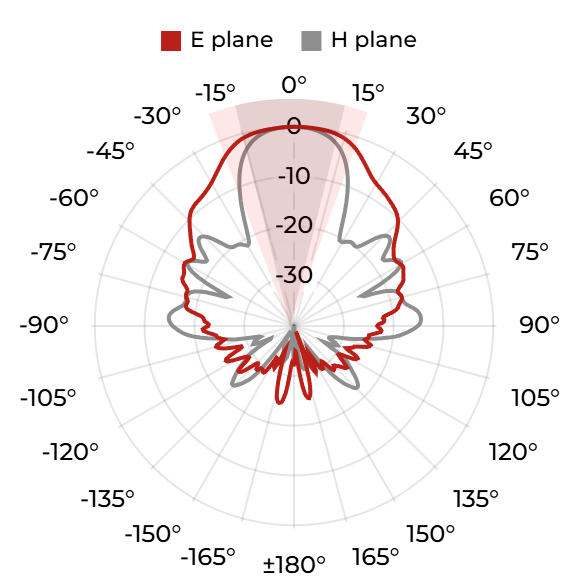

        Radiation Patterns

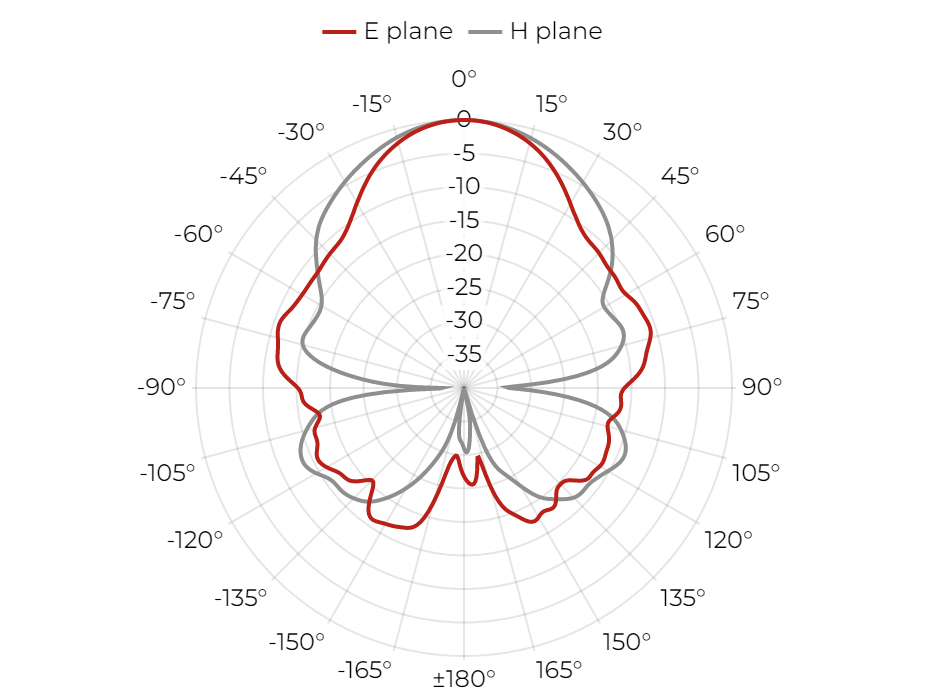

        2.5 GHz

        DRH30 - 2.5 GHz

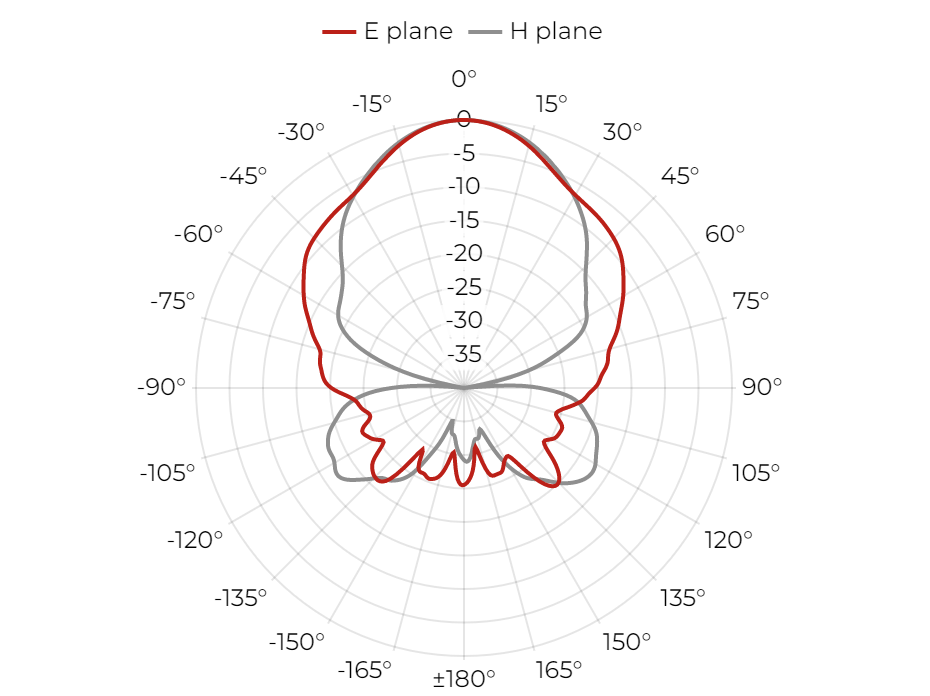

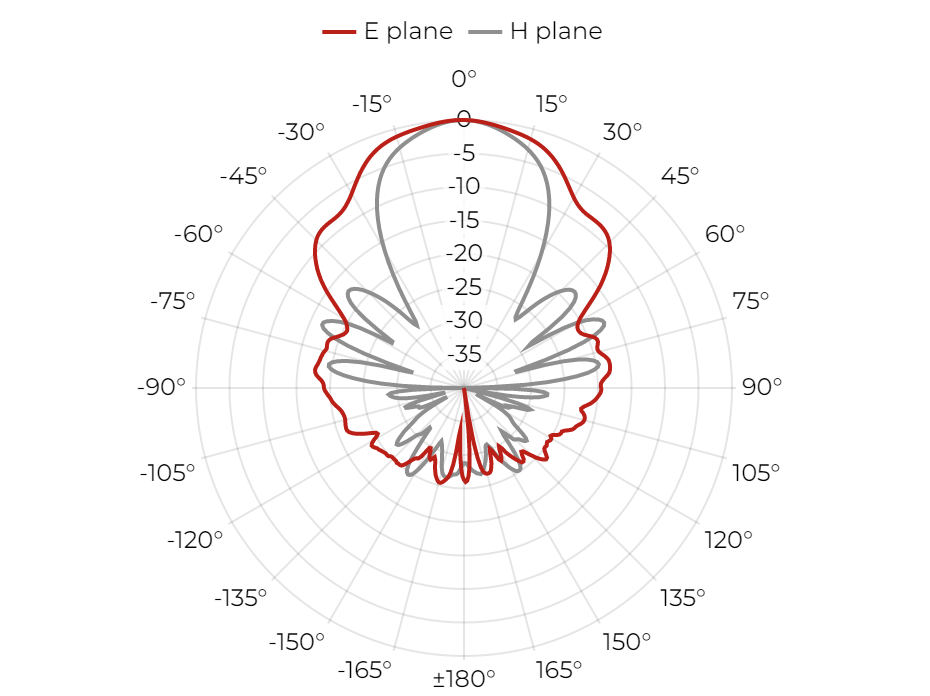

        5 GHz

        DRH30 - 5 GHz

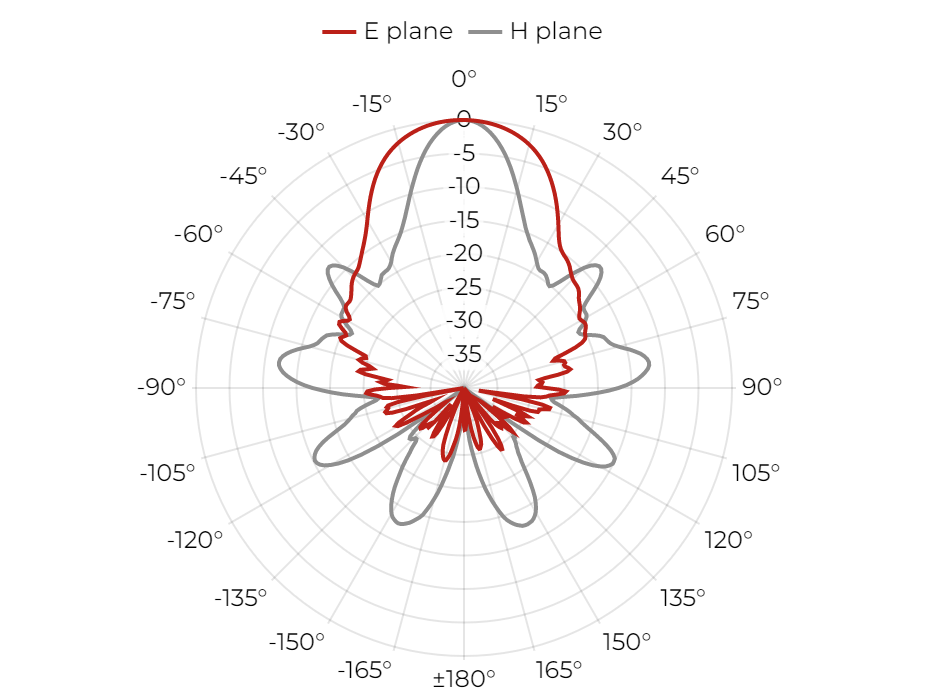

        8 GHz

        DRH30 - 8 GHz

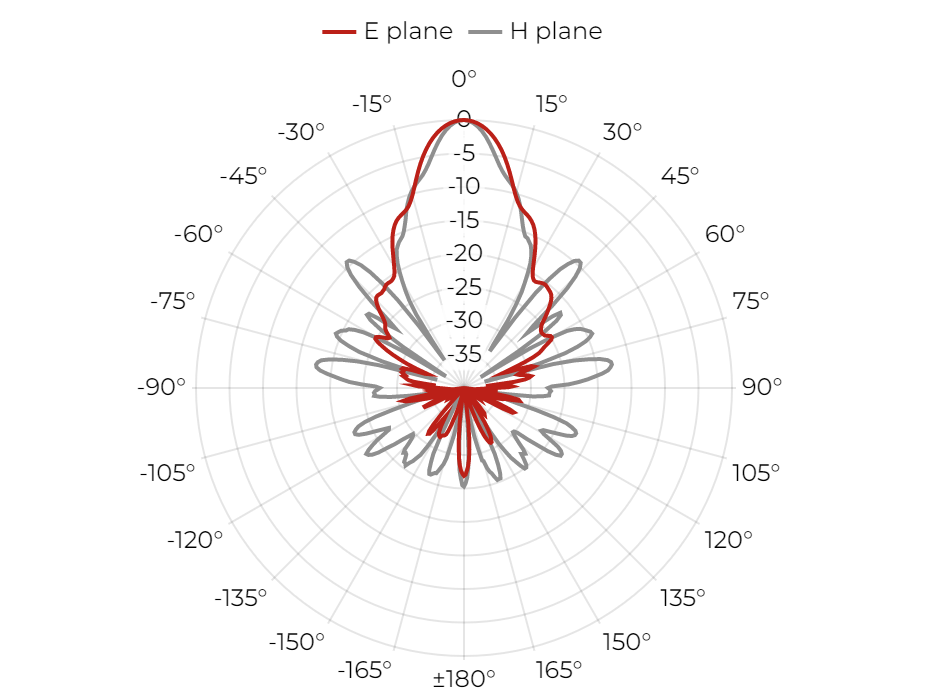

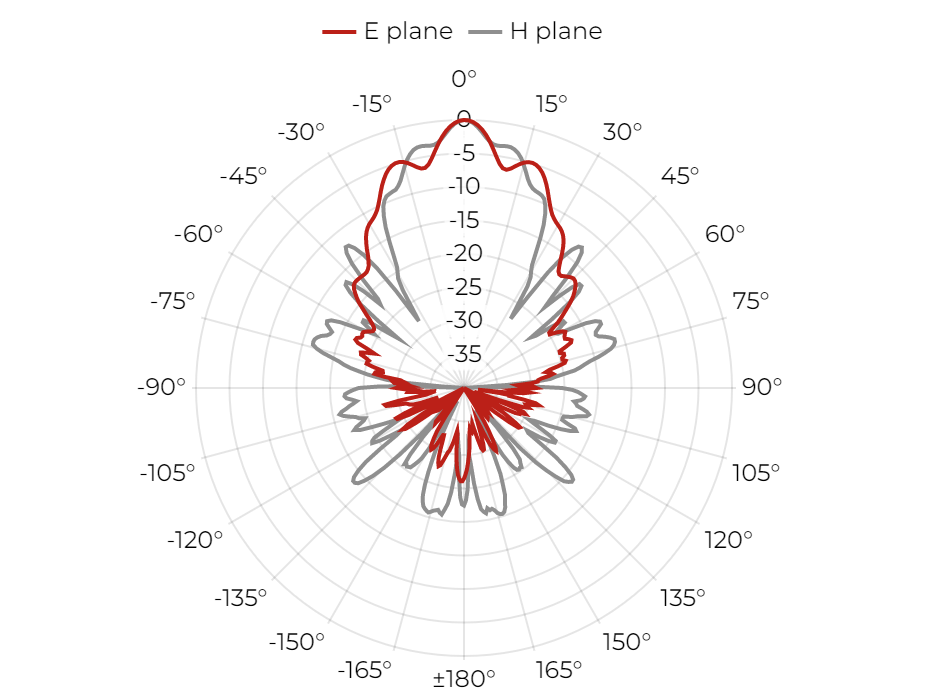

        11 GHz

        DRH30 - 11 GHz

        Packaging and Accessories

        What's in a box

        • DRH30 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
