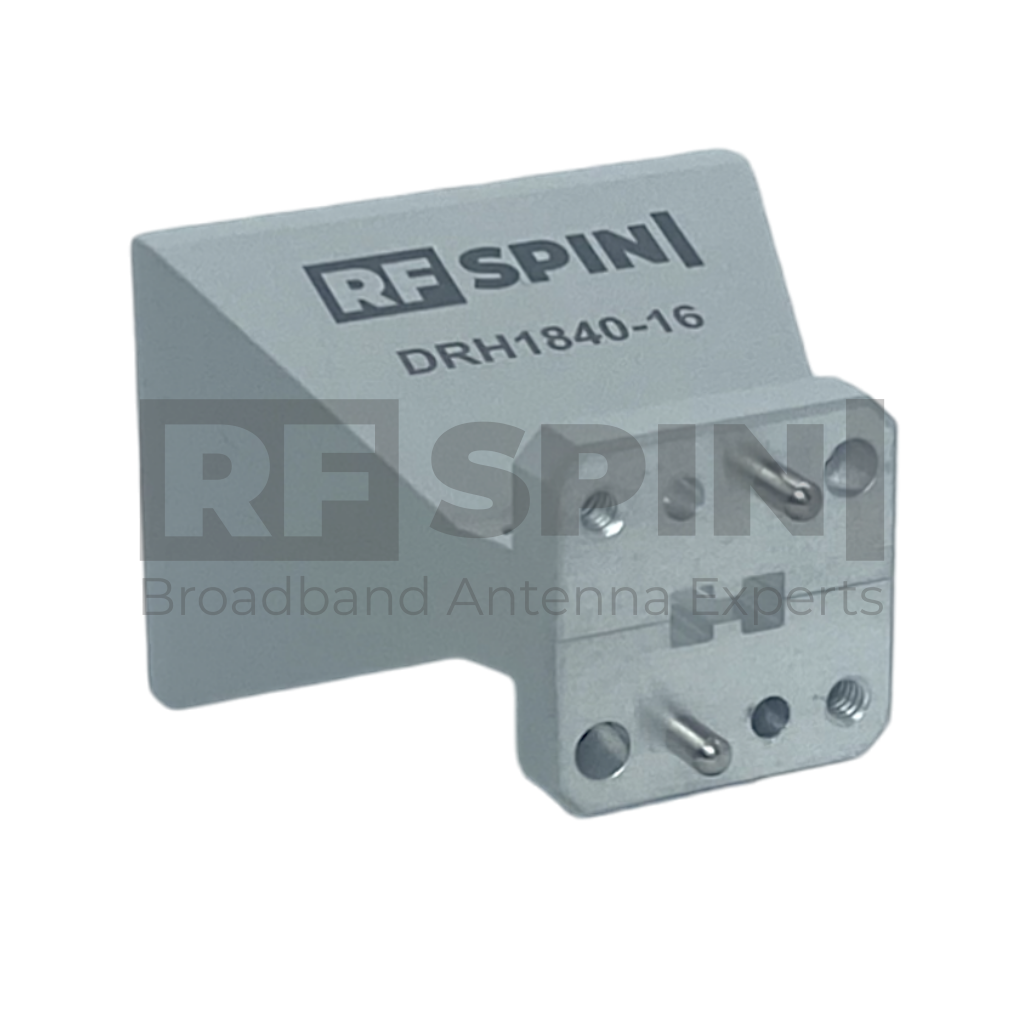

DRH1840-16

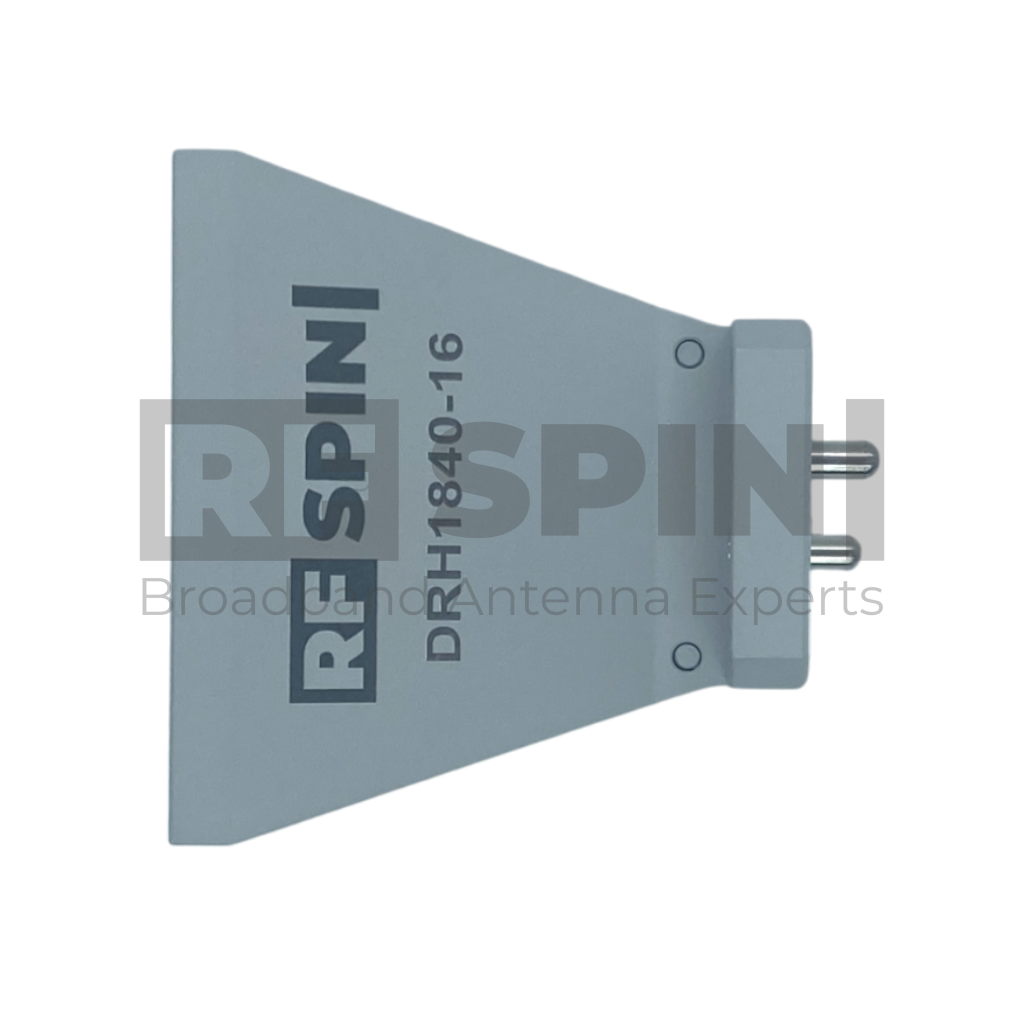

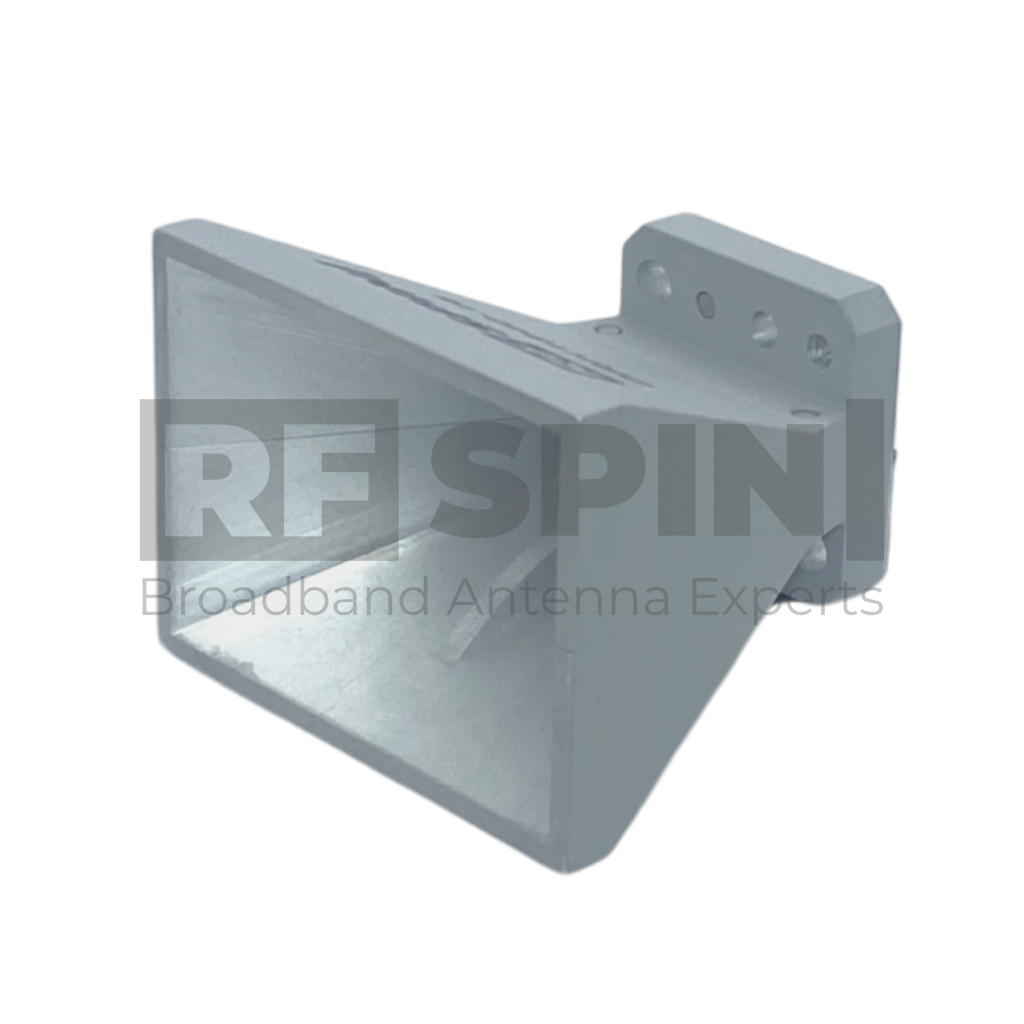

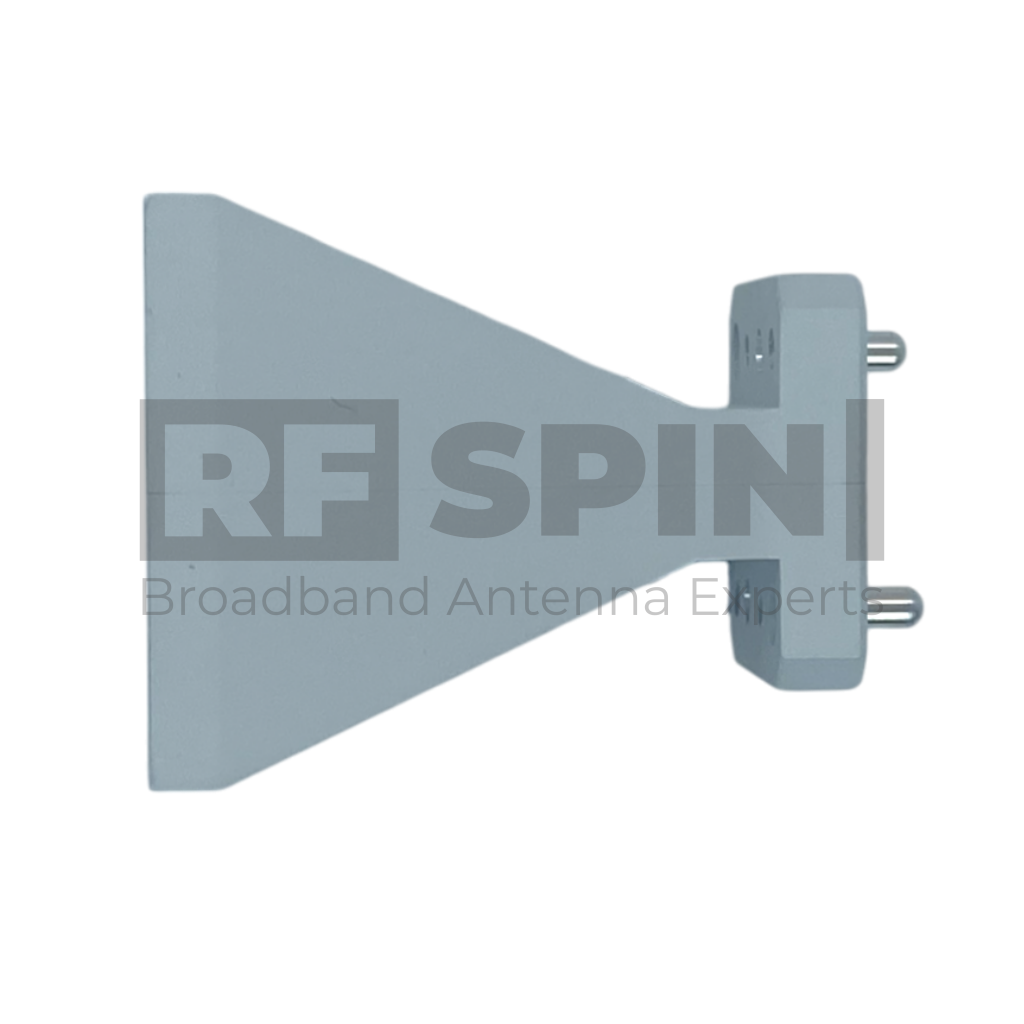

Double Ridged Horn Antenna
Introducing our Double Ridged Horn Antenna, optimized for high-performance across a wide frequency range from 18 GHz to beyond 40 GHz. With a gain of 16 dB and a precisely engineered inner structure, this antenna ensures a consistently flat gain across its operating spectrum. For added versatility, it pairs seamlessly with the ADRWC180EF waveguide-to-coax adapter, offering flexible integration options for a range of applications.
Availability: Most products are on stock. Please contact us for more information or large quantity orders.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Suitable for EMC/EMI applications
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
Product Packaging Includes
- Antenna
Product Parameters
Product identification
- Product Name DRH1840-16
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 18 GHz – 40 GHz
- VSWR (max.) 1.6
- VSWR (avg.) 1.2
- Waveguide Size WRD180
- Waveguide Flange FPWRD180C24
- Antenna Factor 40 – 46 dB/m
- Polarization Linear
Physical specifications
- Width 41 mm (1.614 in)
- Height 38 mm (1.496 in)
- Depth 30 mm (1.181 in)
- Weight 0.03 kg (0.066 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings
Antenna
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor

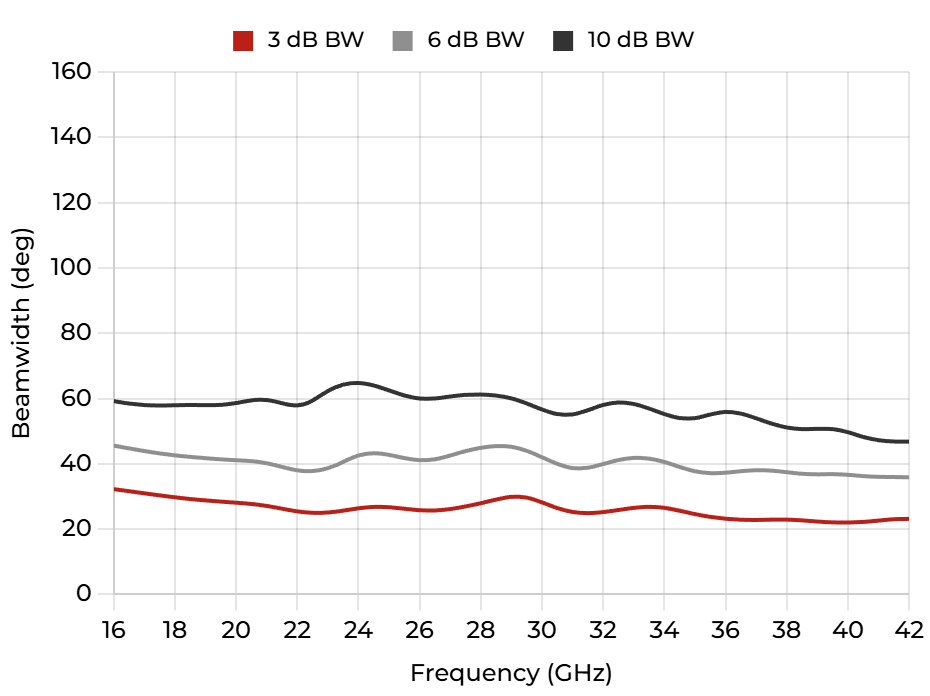

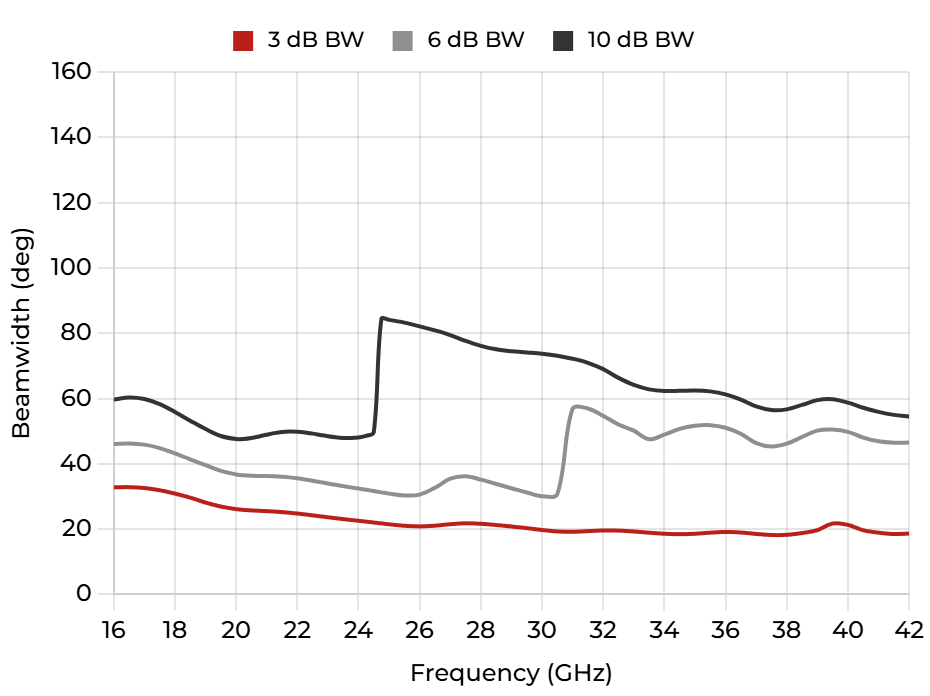

Radiation Patterns
18 GHz
20 GHz
22 GHz
24 GHz
26 GHz
28 GHz
30 GHz
32 GHz
34 GHz
36 GHz
38 GHz
40 GHz
Packaging and Accessories
What's in a box
- DRH1840-16 Antenna
Accessories
- Standard mounting flange
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
- Radome waterproof enclosure
