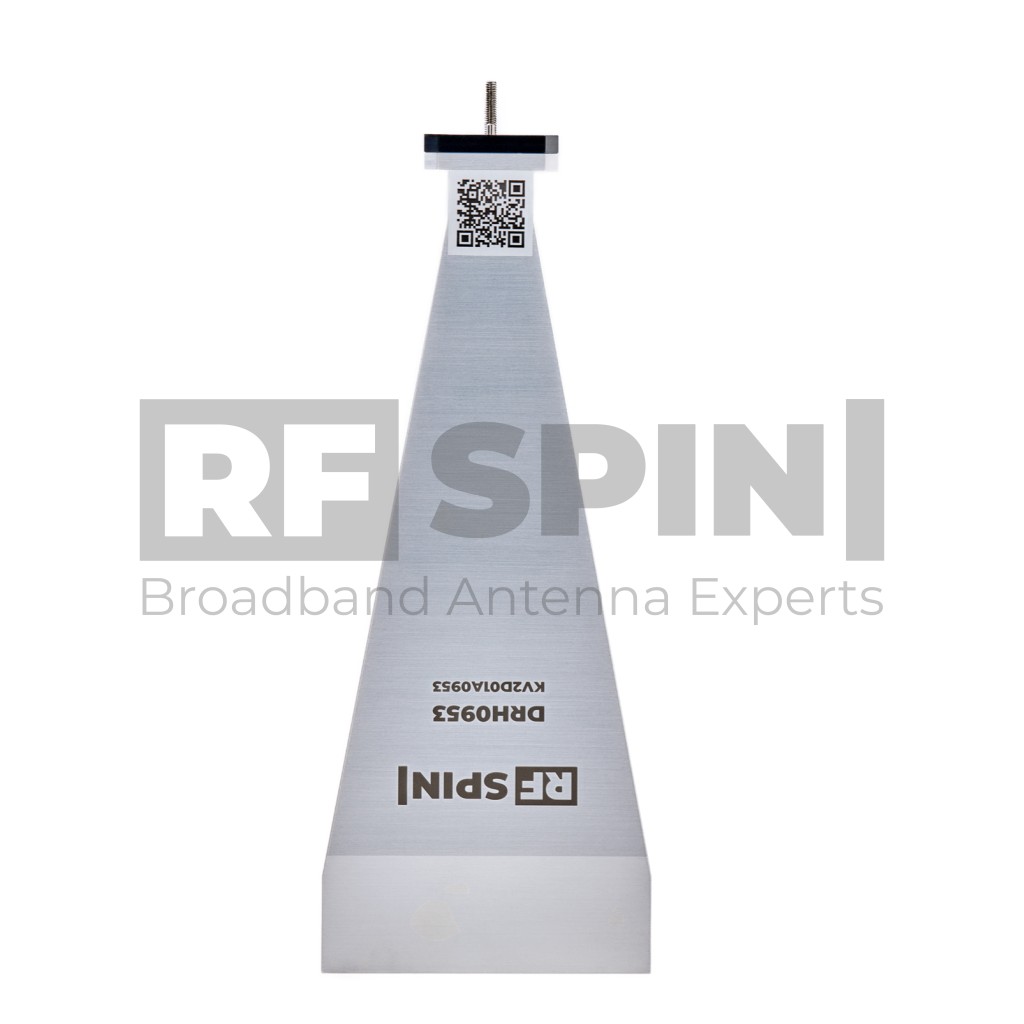

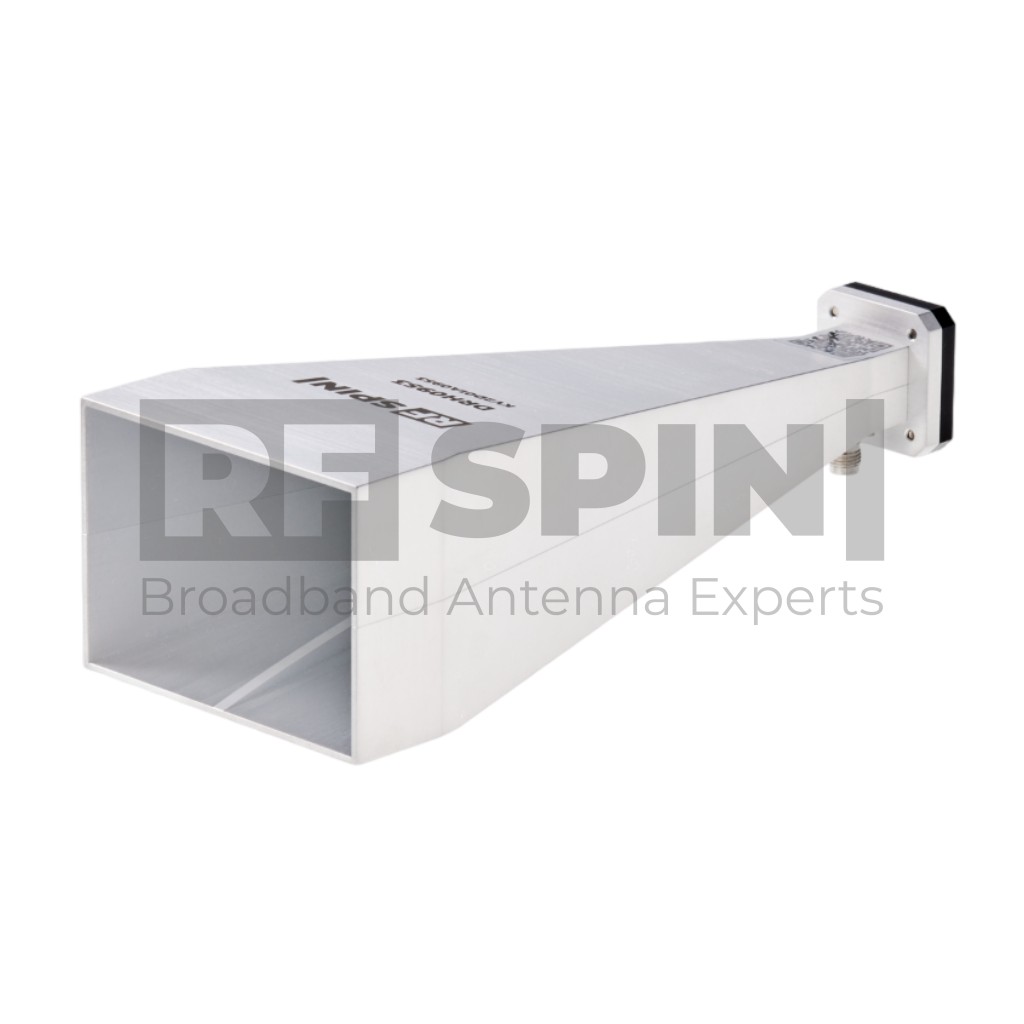

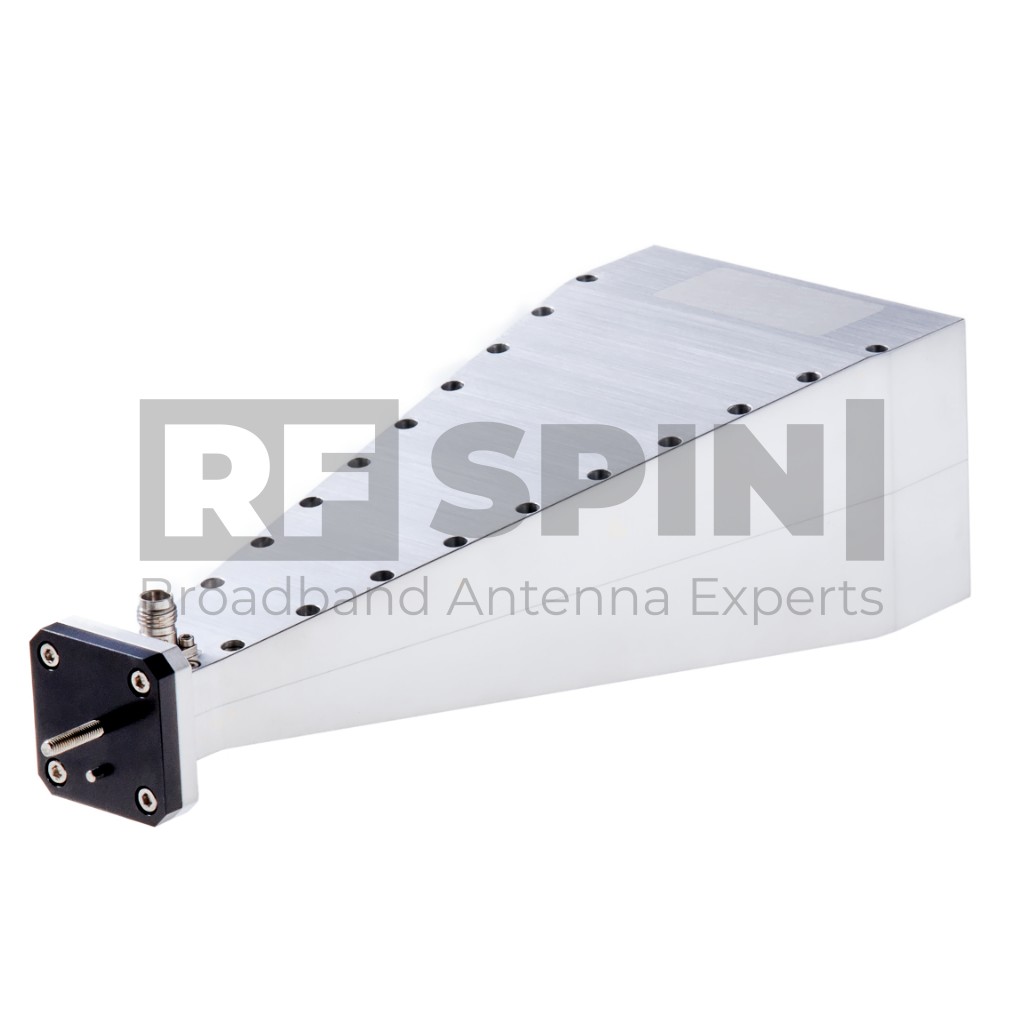

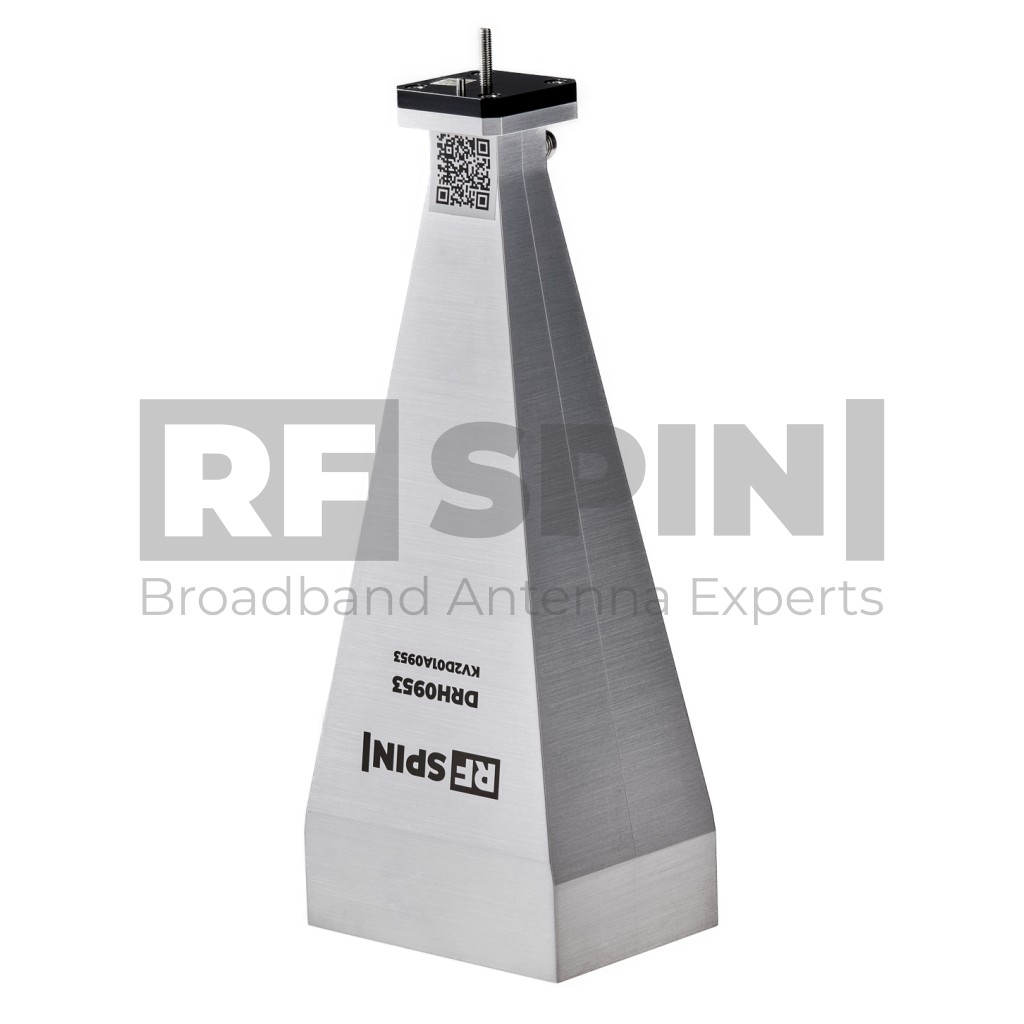

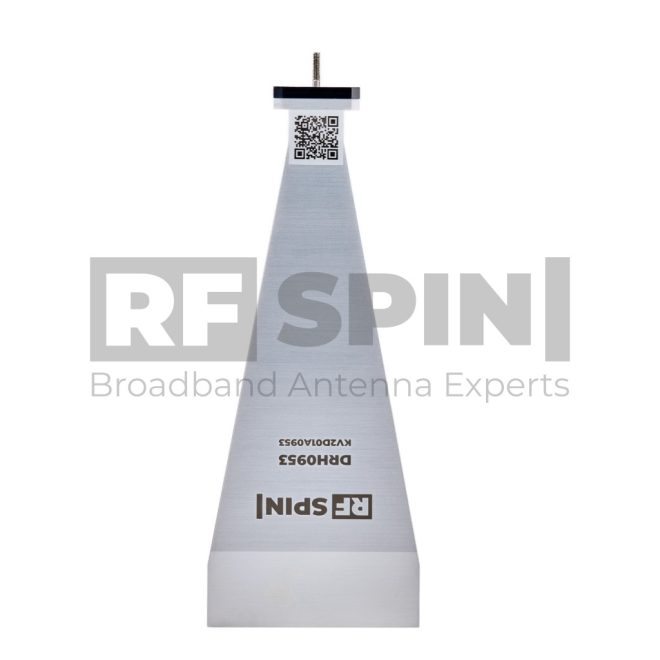

        DRH0953

        Double Ridged Horn Antenna

        online calibration protocol & dataset available

        This high-performance antenna boasts exceptional broadband characteristics, covering an impressive frequency band from 9 GHz to 53 GHz with a high Gain of more than 23dB. With its cutting-edge features and a reliable 2.40 mm connector, this antenna is your gateway to seamless connectivity across a wide range of applications. Get the high Gain antenna DRH0953 right now.

        Frequency Range
        9 GHz – 53 GHz
        VSWR (avg.)
        1.3
        Gain
        13 - 25 dBi
        Impedance
        50 Ohm
        Connector
        2.40mm (female)
        Power (CW / Peak)
        10 W / 20 W
        Polarization
        Linear
        In Stock: 5 pcs
        Ships in 2 days

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality 2.40mm type coaxial connector

        Product Packaging Includes

        • Antenna
        • Adapter with ¼ inch inner thread, supplied with antenna

        Product Parameters

        Product identification

        • Product Name DRH0953
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 9 GHz – 53 GHz
        • VSWR (max.) 2
        • VSWR (avg.) 1.3
        • Impedance 50 Ohm
        • Connector 2.40mm (female)
        • Power (CW / Peak) 10 W / 20 W
        • Antenna Factor 34 – 41 dB/m
        • Polarization Linear

        Physical specifications

        • Width 74 mm (2.913 in)
        • Height 53 mm (2.087 in)
        • Depth 187 mm (7.362 in)
        • Weight 0.37 kg (0.816 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH0953 - VSWR

        Gain

        DRH0953 - Gain

        Antenna Factor

        DRH0953 - Antenna Factor

        Cross Polarization

        DRH0953 - Cross Polarization

        Beamwidth

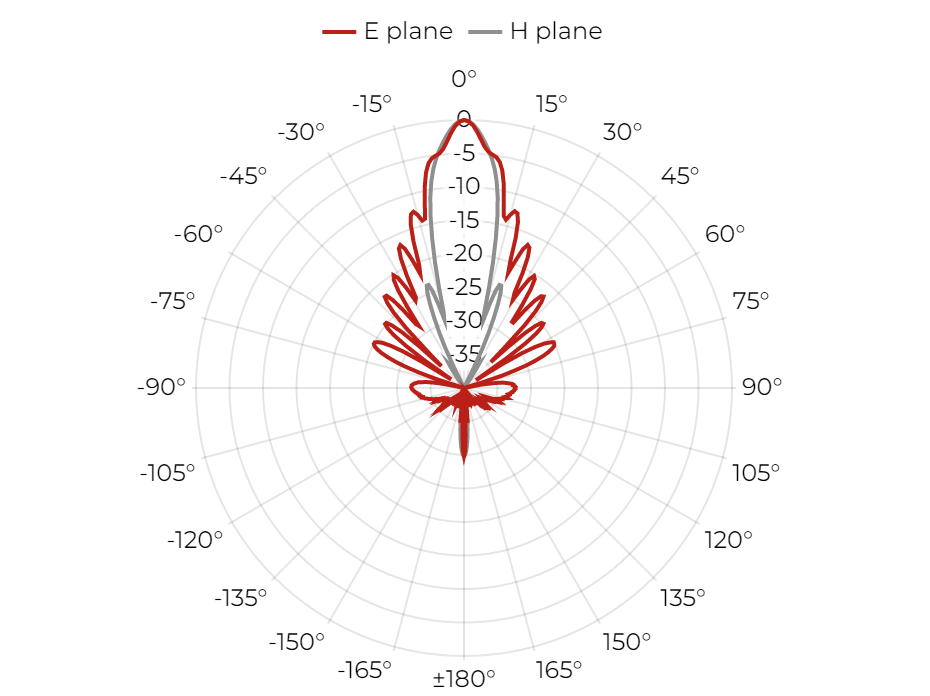

        Radiation Patterns

        9 GHz

        DRH0953 - 9 GHz

        13 GHz

        DRH0953 - 13 GHz

        17 GHz

        DRH0953 - 17 GHz

        21 GHz

        DRH0953 - 21 GHz

        Packaging and Accessories

        What's in a box

        • DRH0953 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
