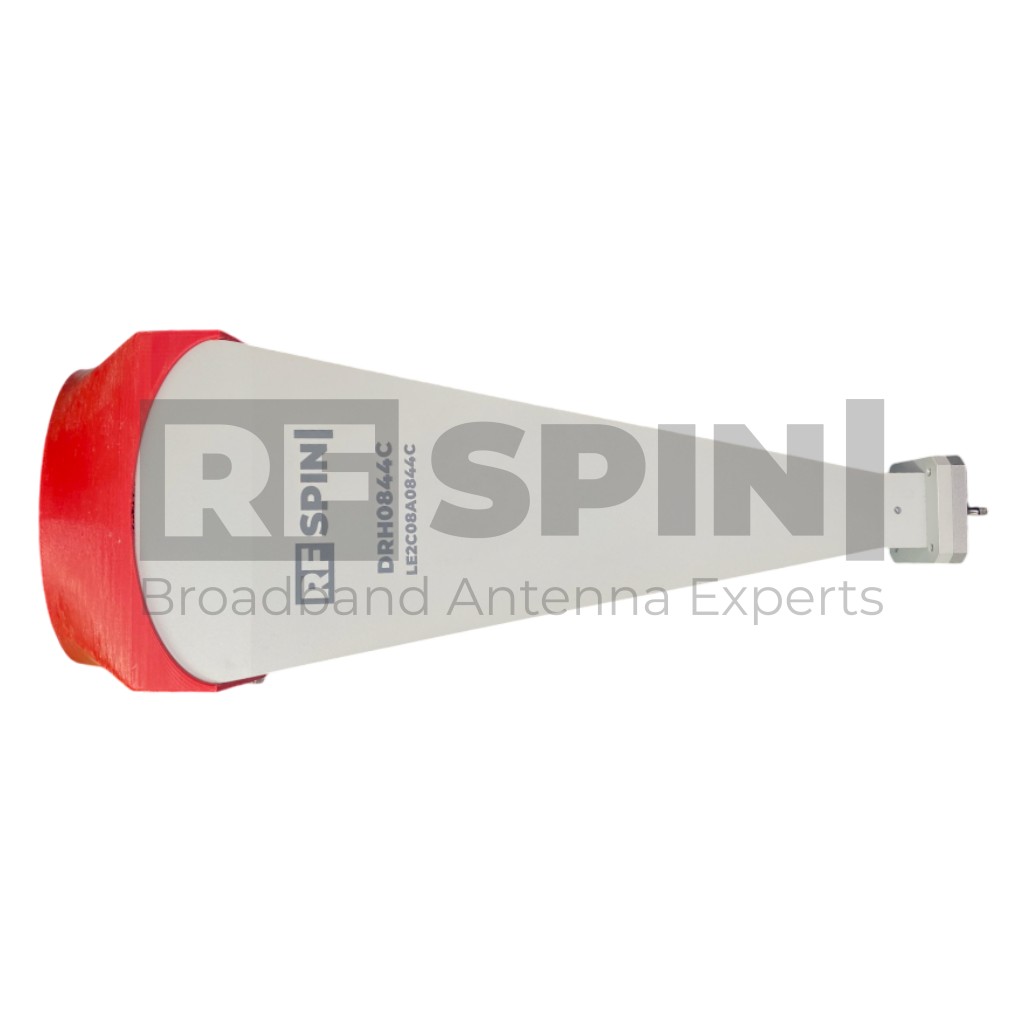

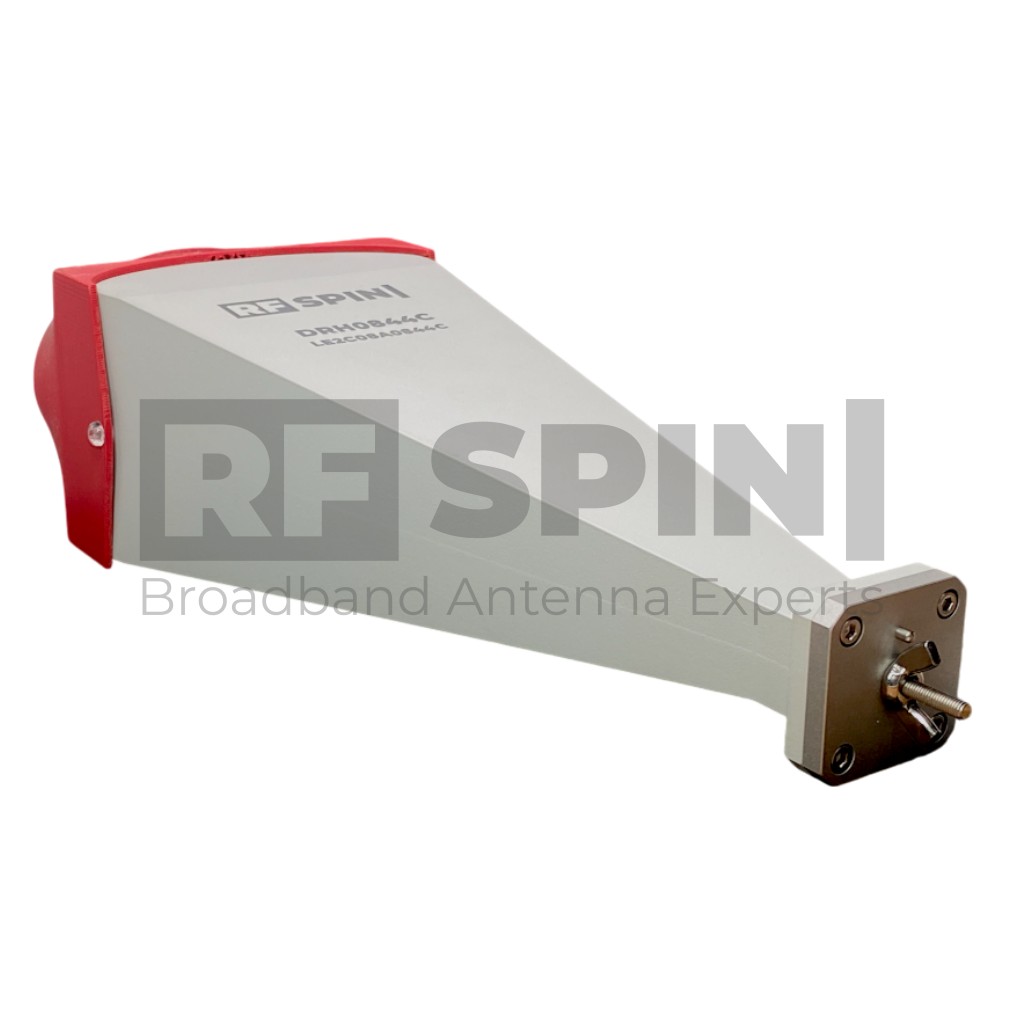

DRH0844C Double Ridged Horn Antenna | 8 GHz – 44 GHz
with online calibration protocol and dataset

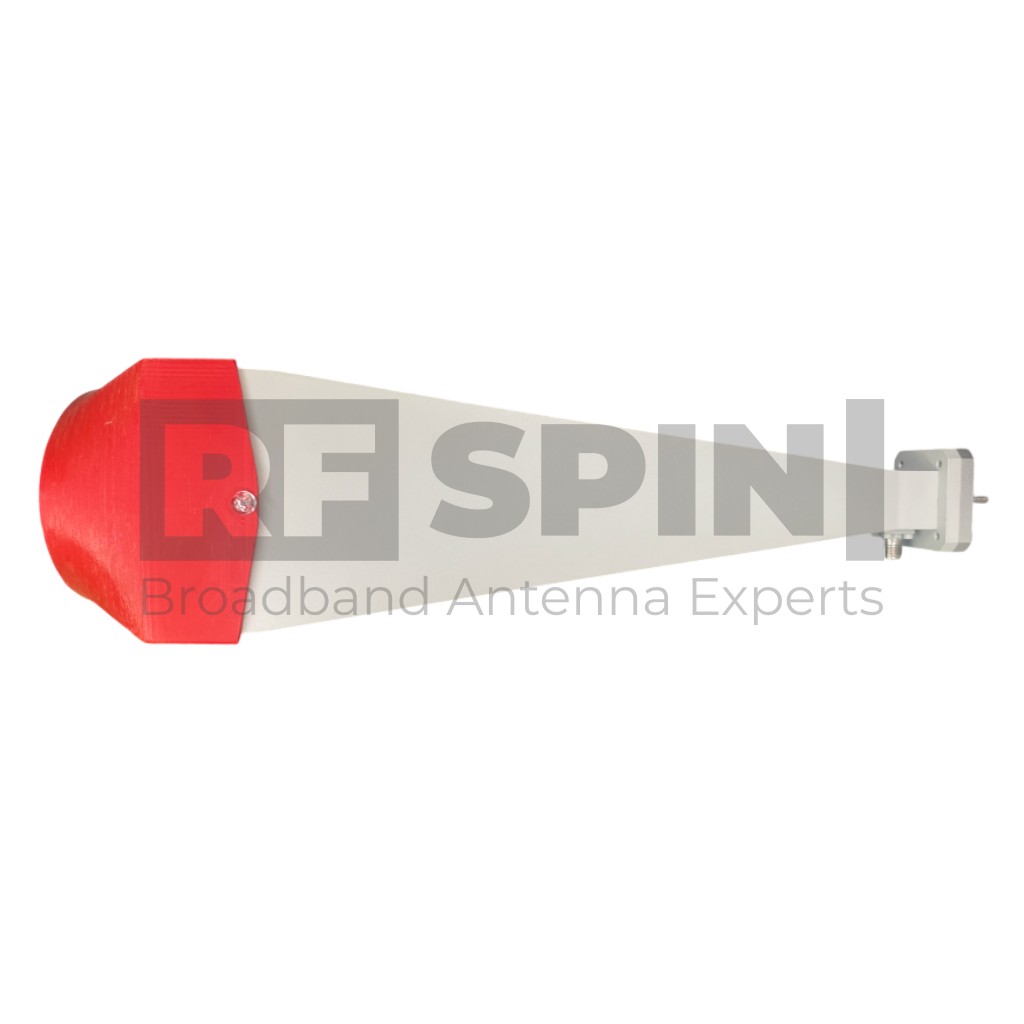

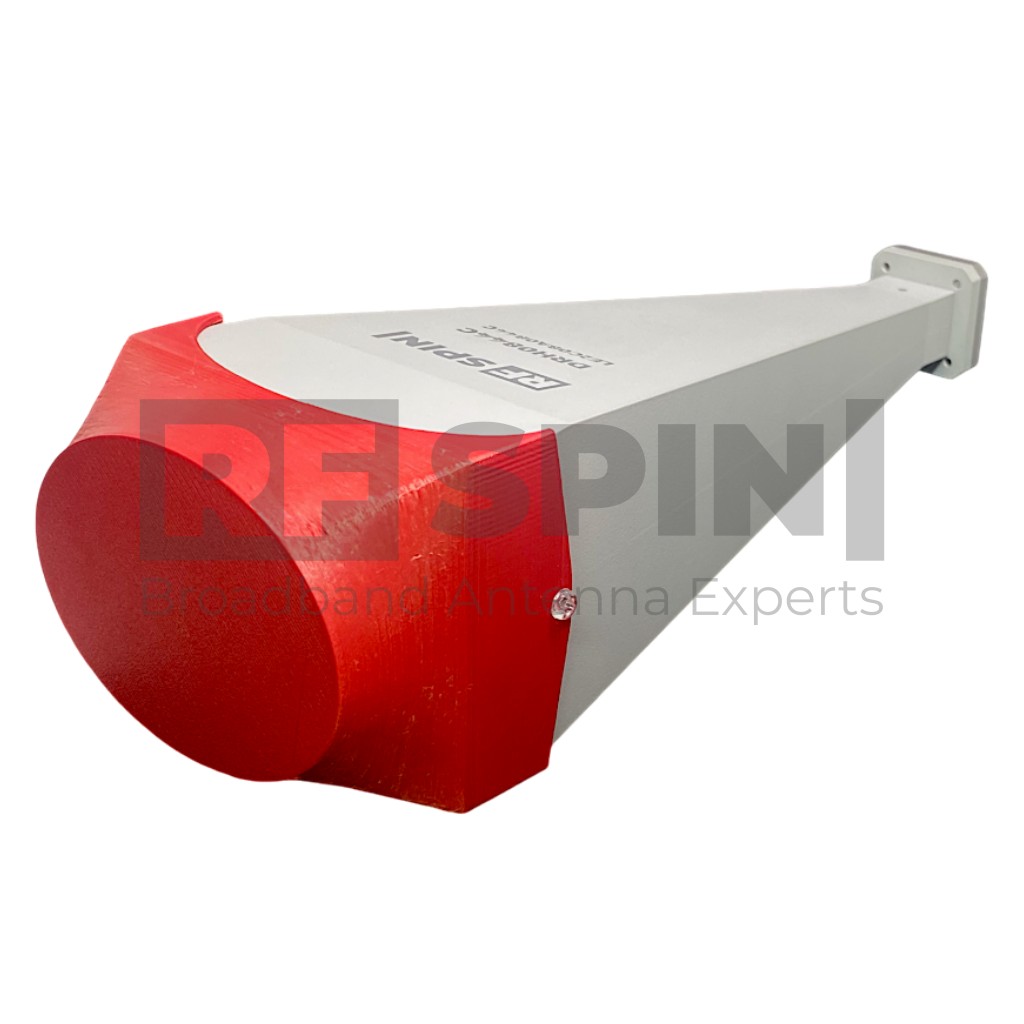

A high-gain antenna equipped with an increasing-gain lens? Yes, the maximum gain is now almost 30dB! The patented lens technology makes this antenna operate from 8 GHz up to 44 GHz, truly outstanding.
Select files to by sent by e-mail
See base version DRH0844Features and Specifications
Technical Performance
- High gain
- Wide bandwidth
- Low return loss
- Individual calibration
- Covers 5G frequency band
Design and Surface Treatment
- High-quality lens plastic
- Corrosion-resistant coating
- Includes standard mount
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
- High quality K type coaxial connector
Product Packaging Includes
- Antenna with lens
- Adapter with ¼ inch inner thread, supplied with antenna
Product Parameters
Product identification
- Product Name DRH0844C
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 8 GHz – 44 GHz
- VSWR (max.) 2.2
- VSWR (avg.) 1.3
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 15 W / 30 W
- Antenna Factor 32 – 35 dB/m
- Polarization Linear
Physical specifications
- Width 89.5 mm (3.524 in)
- Height 67 mm (2.638 in)
- Depth 245 mm (9.646 in)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Radiation Patterns

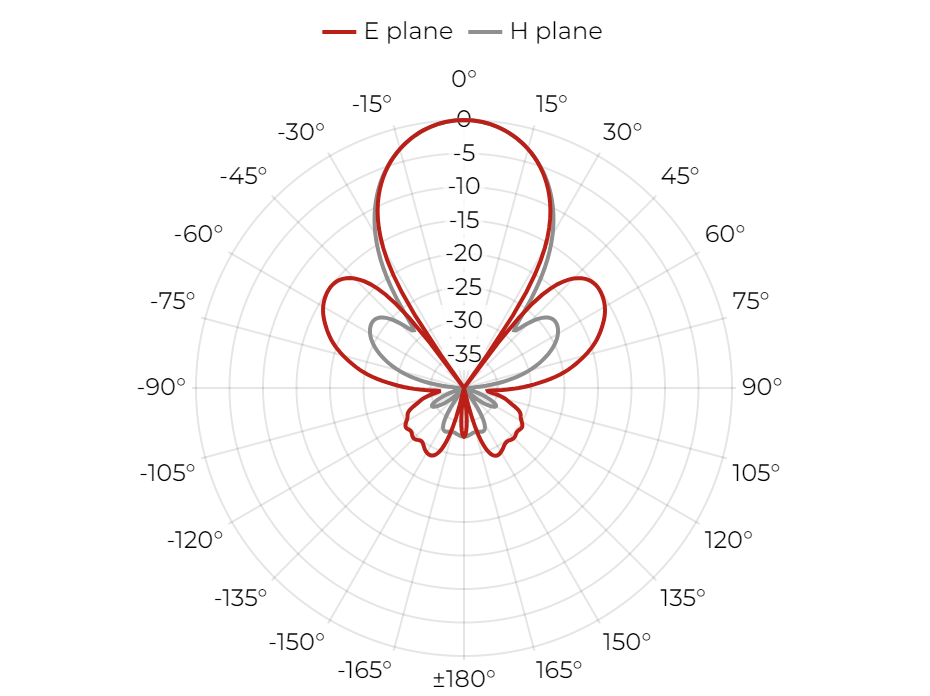

8 GHz

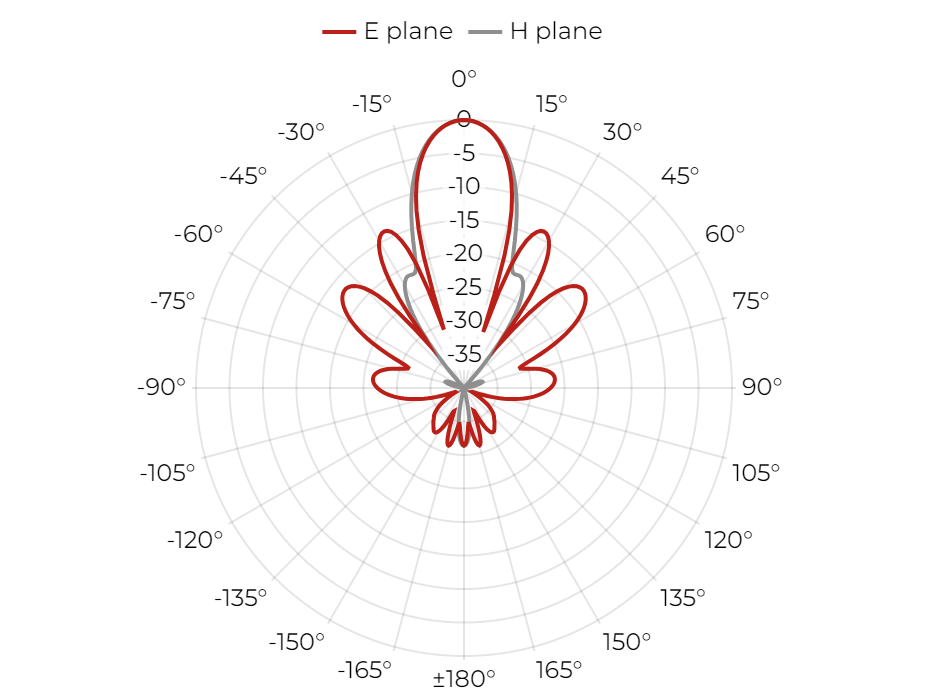

10 GHz

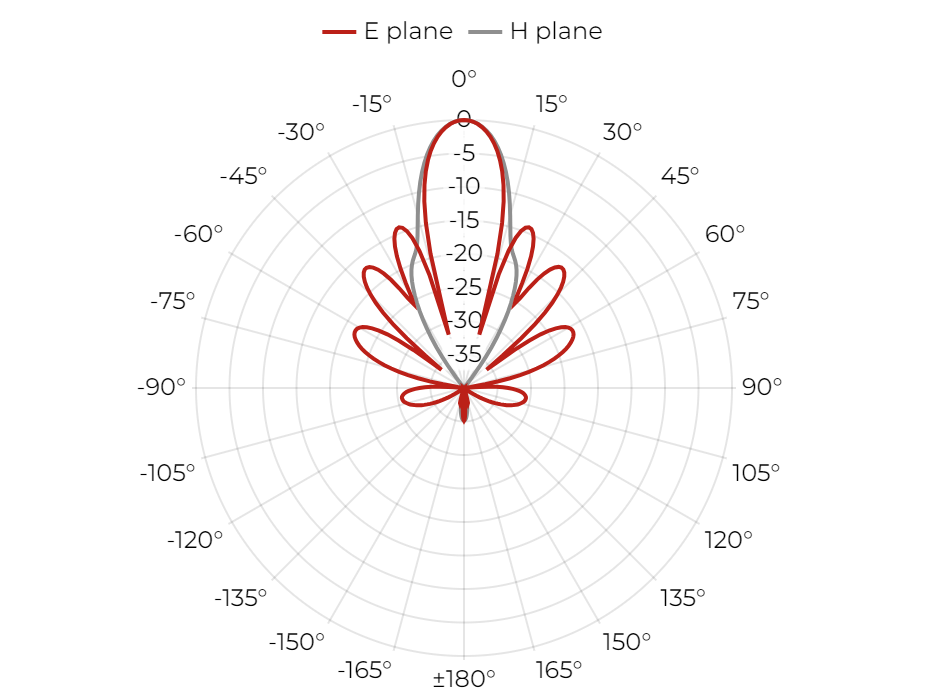

14 GHz
17 GHz
20 GHz
23 GHz
26 GHz
29 GHz
32 GHz
35 GHz

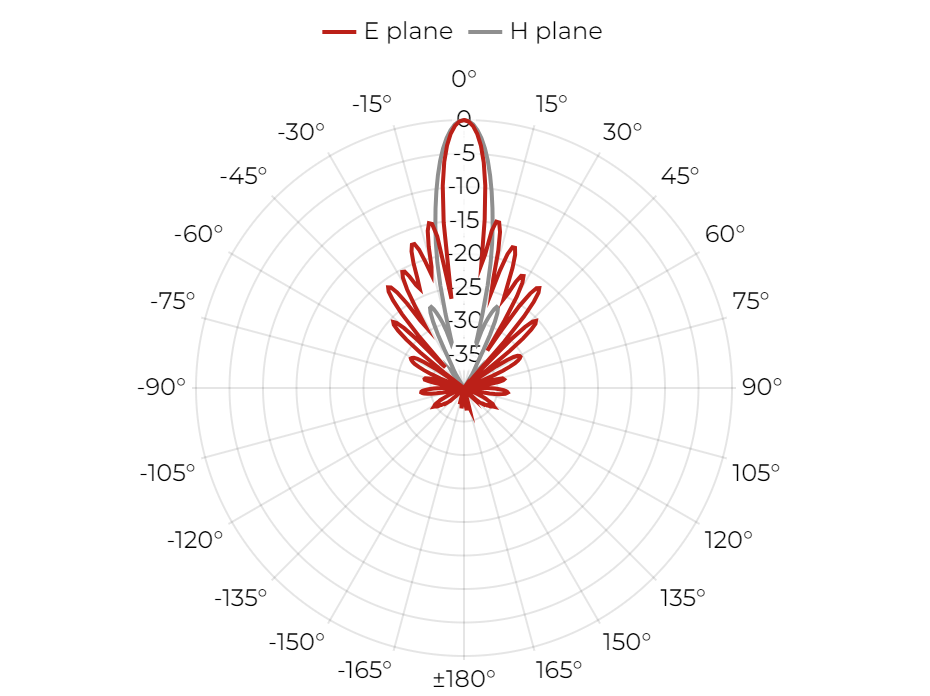

40 GHz
44 GHz
Packaging and Accessories
What's in a box
- DRH0844C Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
- Radome waterproof enclosure
