        RF SPIN

        Broadband Antenna Solutions

        New model 2024

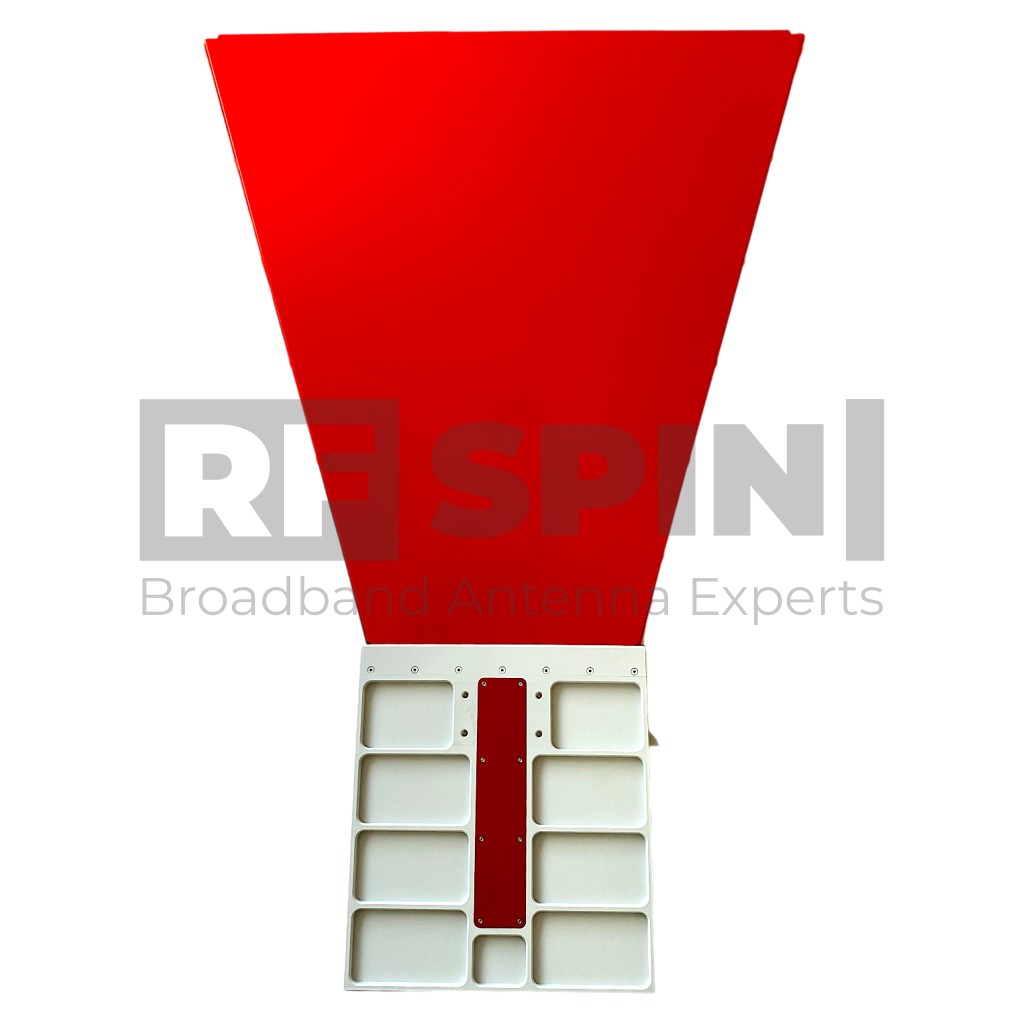

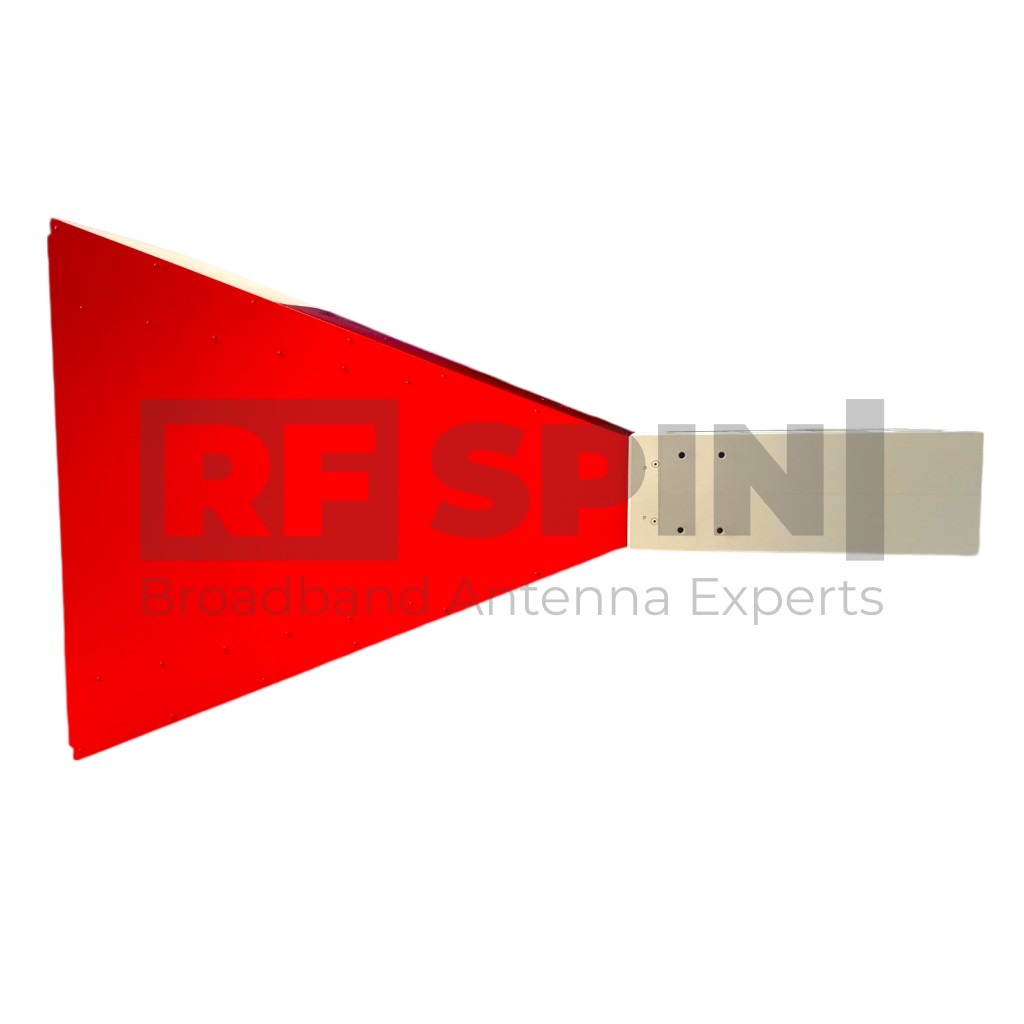

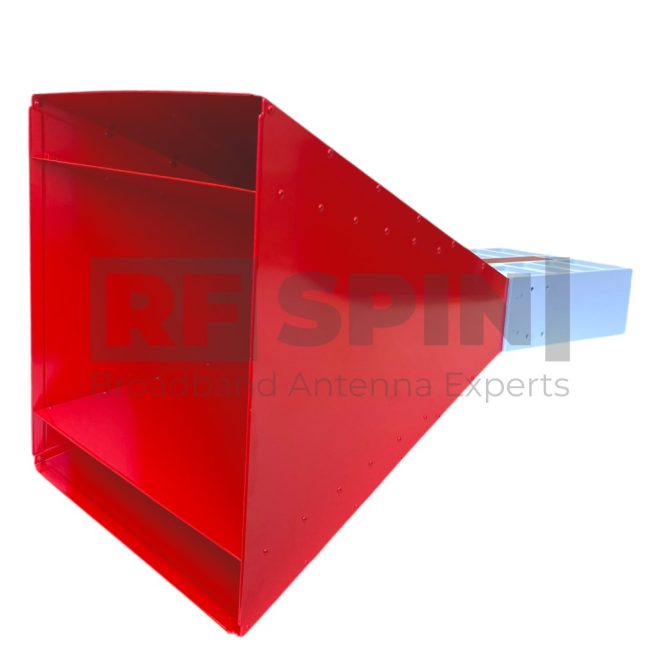

        DRH0806

        Double Ridged Horn Antenna

        online calibration protocol & dataset available

        The DRH0806 is a high-gain, broadband horn antenna with a linear polarization that operates efficiently from 800 MHz to 6 GHz. Constructed from high-grade aluminum with a corrosion-resistant coating, it is primarily intended for use in radiated RF field generation for product immunity tests. It can handle continuous power up to 1000 Watts and is also suitable for electromagnetic interference testing and other general purposes.
        Frequency Range
        800 MHz – 6 GHz
        VSWR (avg.)
        1.2
        Gain
        10 - 24 dBi
        Impedance
        50 Ohm
        Connector
        7/16 (female)
        Power (CW / Peak)
        1000 W / 1300 W
        Polarization
        Linear
        Made on demand
        14 days to manufacture

        Features and Specifications

        Technical Performance

        • High gain
        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • High quality 7/16 coaxial connector

        Product Packaging Includes

        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH0806
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 800 MHz – 6 GHz
        • VSWR (max.) 1.8
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Connector 7/16 (female)
        • Power (CW / Peak) 1000 W / 1300 W
        • Antenna Factor 17 – 24 dB/m
        • Polarization Linear

        Physical specifications

        • Width 438 mm (17.244 in)
        • Height 702 mm (27.638 in)
        • Depth 457 mm (17.992 in)
        • Weight 6.7 kg (14.771 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH0806 - VSWR

        Gain

        DRH0806 - Gain

        Antenna Factor

        DRH0806 - Antenna Factor

        Beamwidth

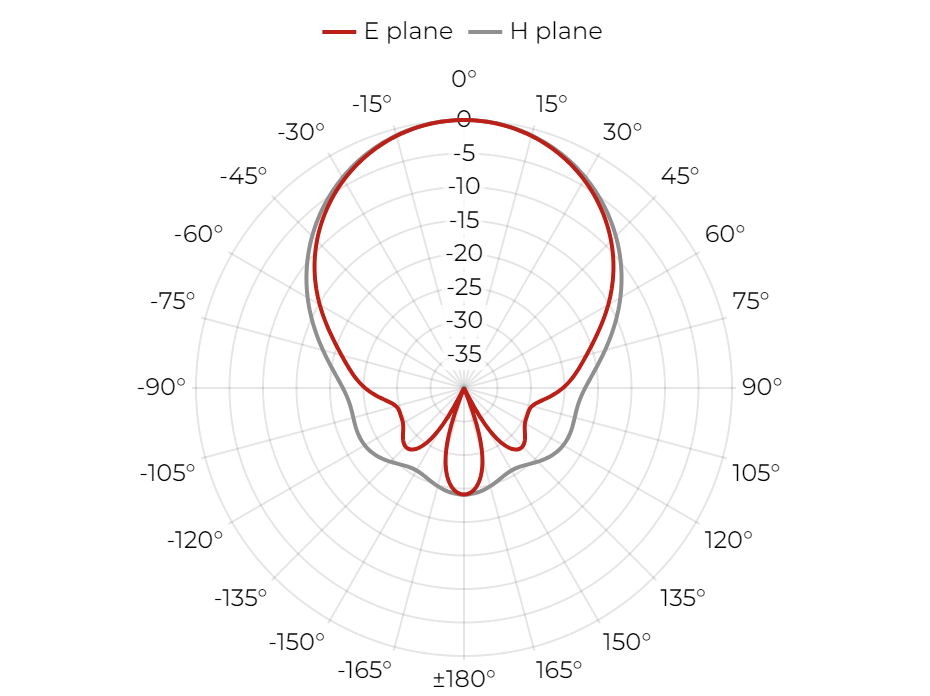

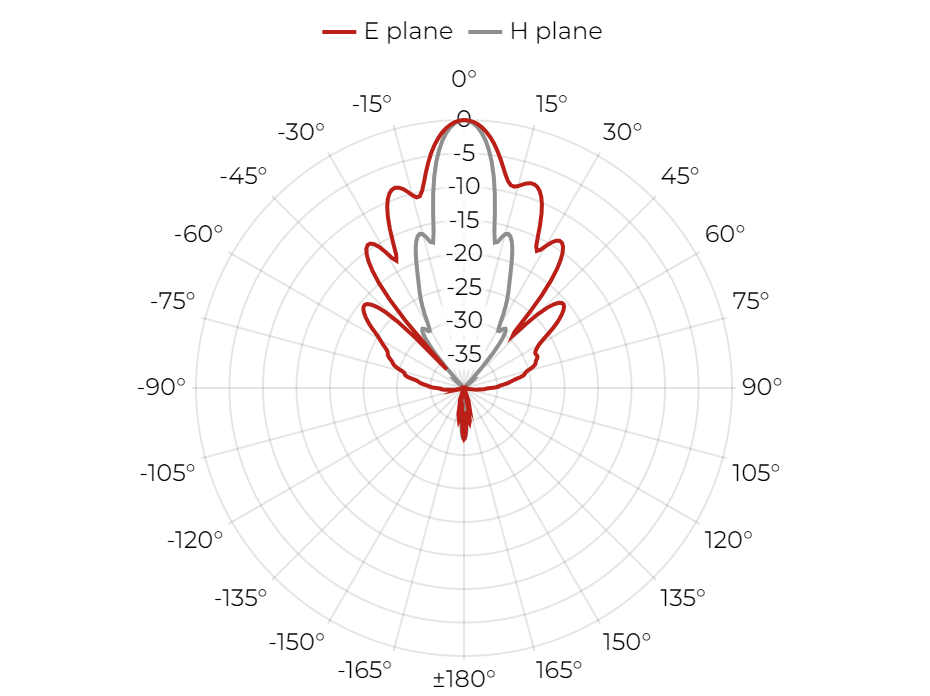

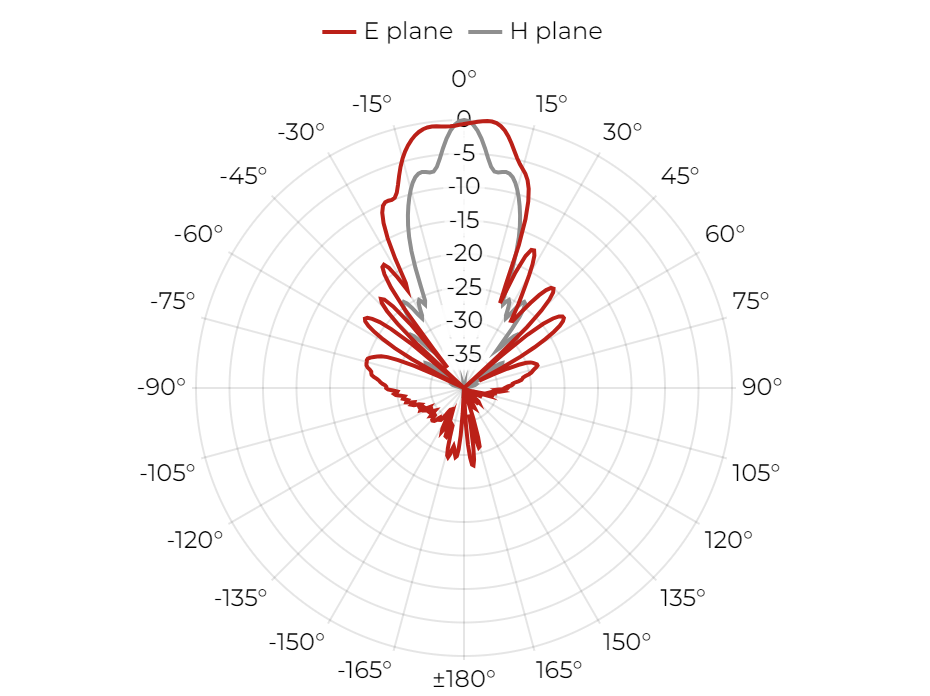

        Radiation Patterns

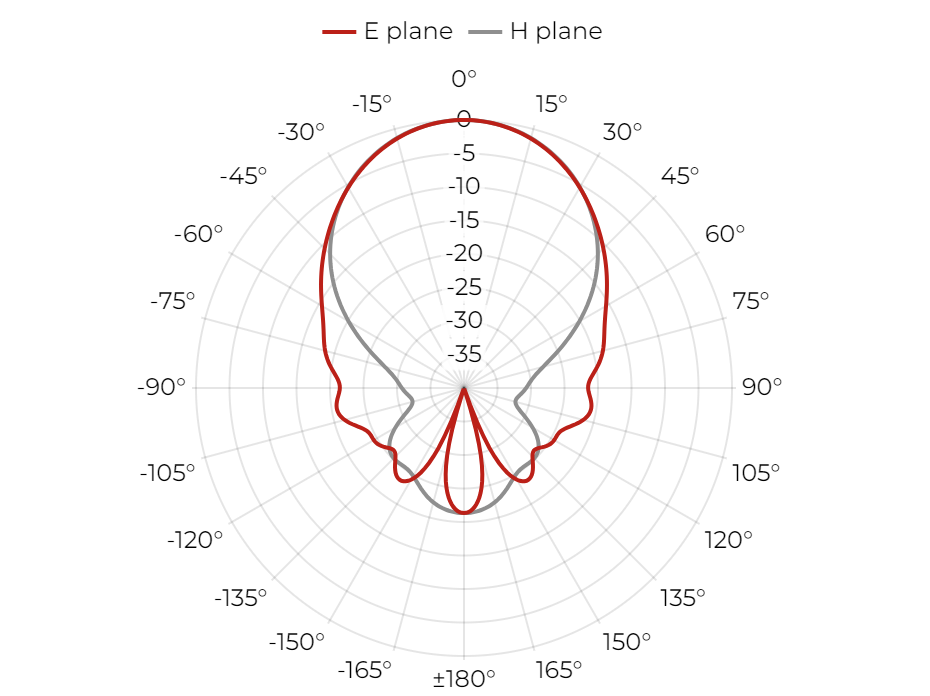

        0.8 GHz

        DRH0806 - 0.8 GHz

        1 GHz

        DRH0806 - 1 GHz

        1.3 GHz

        DRH0806 - 1.3 GHz

        1.8 GHz

        DRH0806 - 1.8 GHz

        Packaging and Accessories

        What's in a box

        • DRH0806 Antenna
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
