AWC34EFK
Waveguide to Coax Adapter
online calibration protocol & dataset available

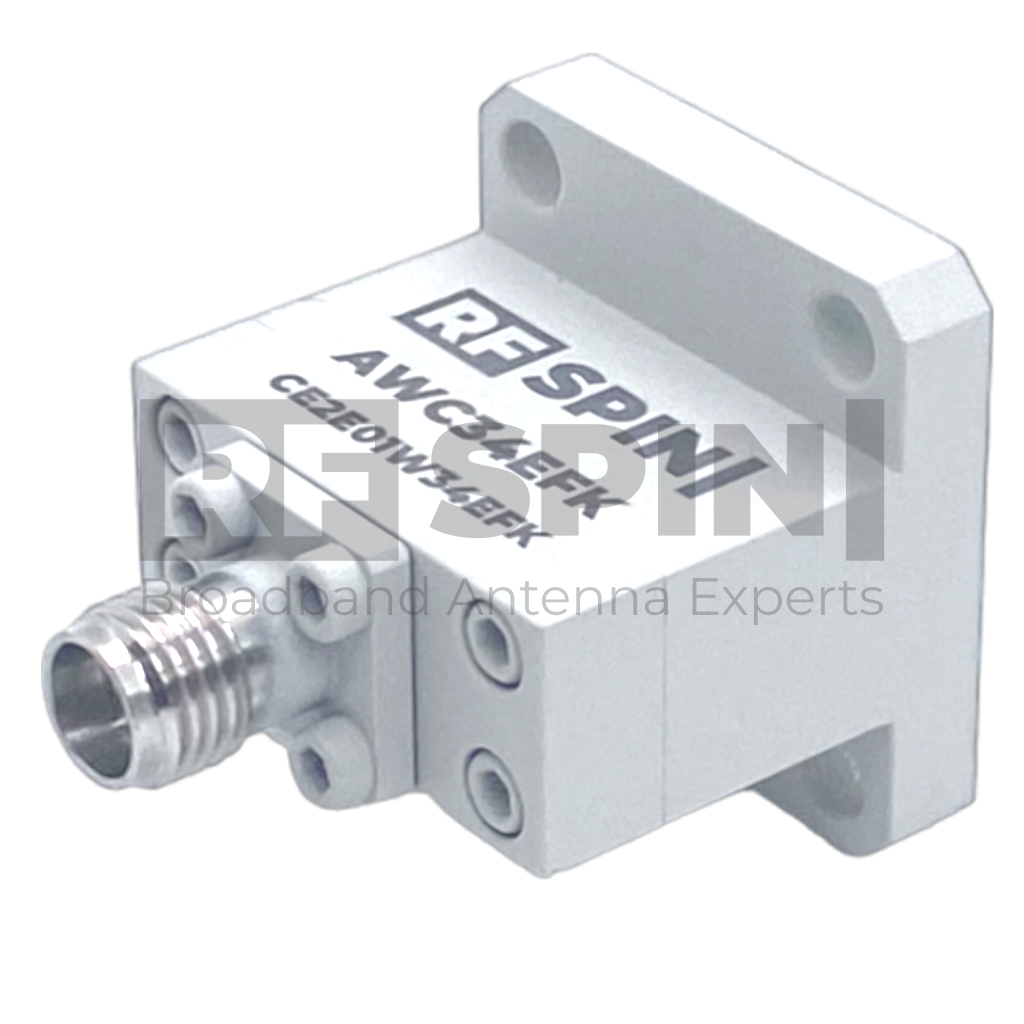

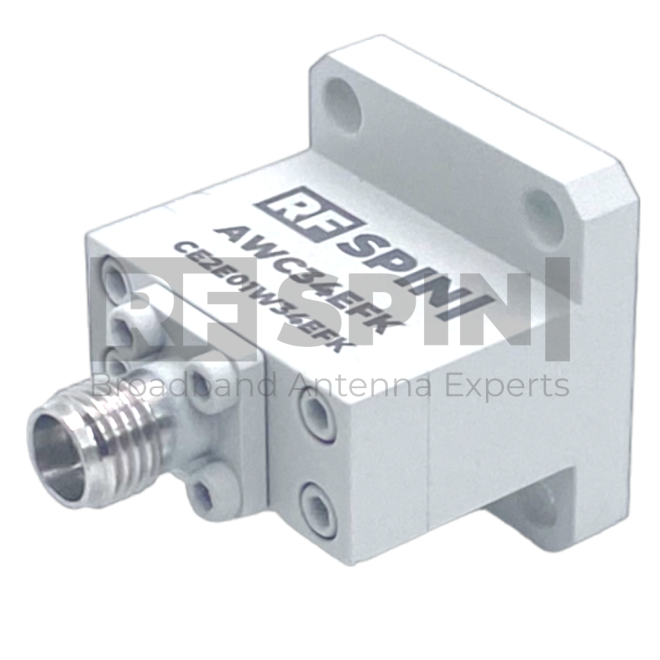

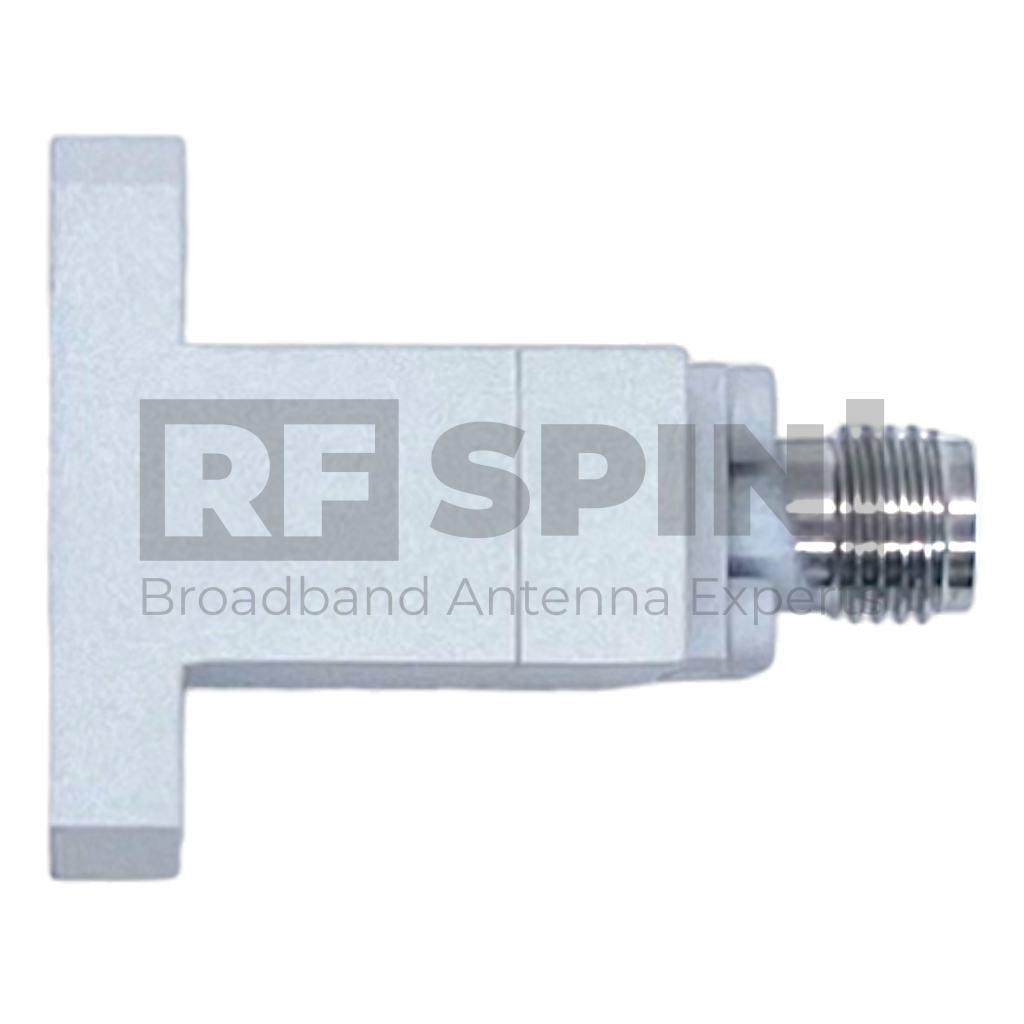

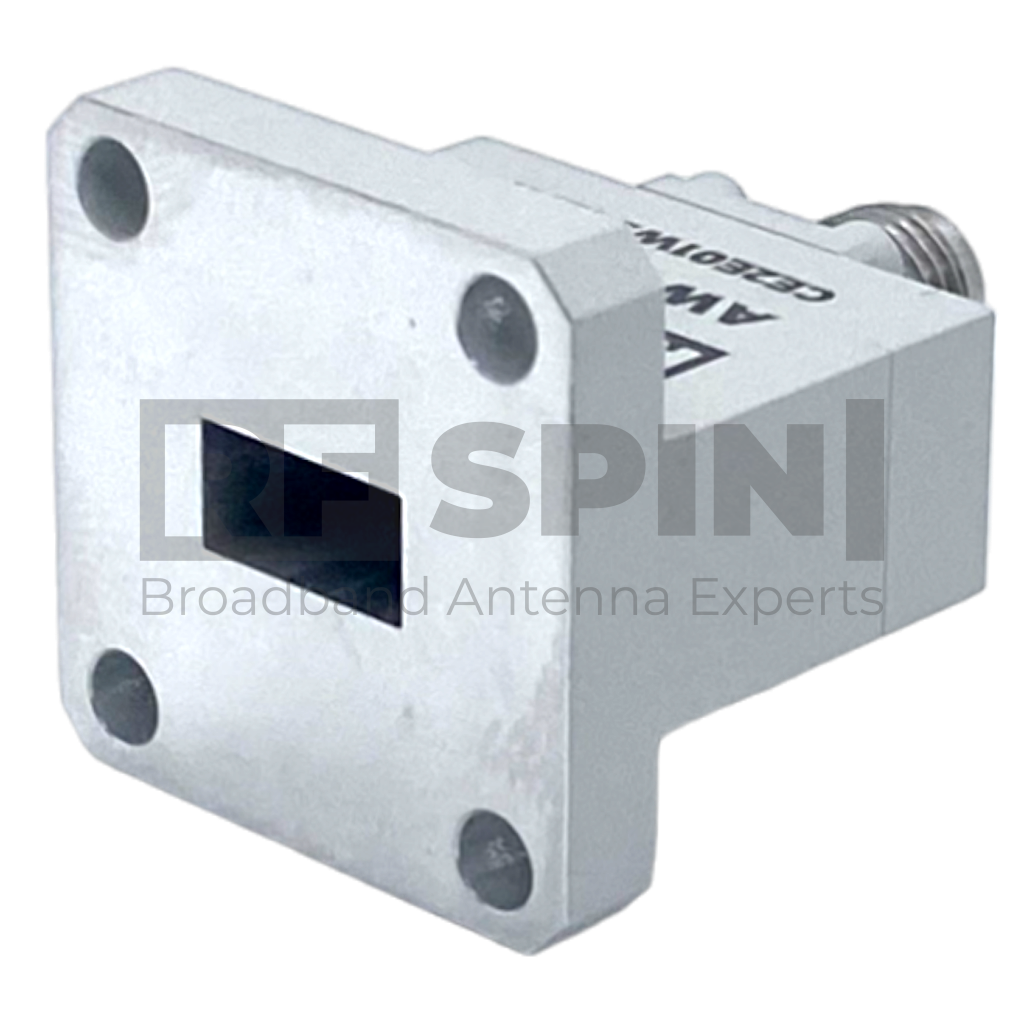

This Waveguide to Coax Adapter AWC34EFK is manufactured with an end-launch design. RF SPIN is using only high-grade aluminum and design with the fewest components to ensure top quality and superb performance. This AWC34EFK has waveguide size WR-34 and flange. Using a great quality 2.92mm female connector that is 50 Ohm is a matter of course.
Waveguide to Coax Adapter covers a frequency band from 22 GHz up to 33 GHz ensuring the extra performance of VSWR lower than 1.3 and low insertion loss.
Frequency Range
22 GHz – 33 GHz
VSWR (avg.)
1.20
Impedance
50 Ohm
Connector
K (female)
Power (CW / Peak)
15 W / 30 W
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
- High quality K type coaxial connector
Product Packaging Includes
- Waveguide to Coax Adapter

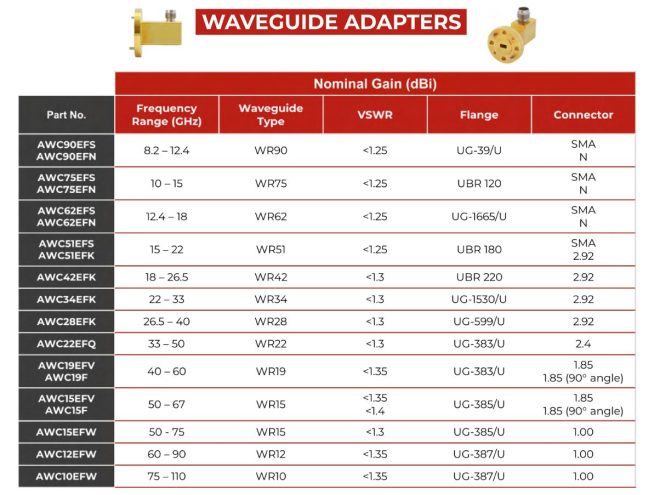

Product Parameters
Product identification
- Product Name AWC34EFK
- Product Category Waveguide to Coax Adapter
Electrical specifications
- Frequency Range 22 GHz – 33 GHz
- VSWR (max.) 1.30
- VSWR (avg.) 1.20
- Impedance 50 Ohm
- Insertion Loss (max.) 0.6 dB
- Connector K (female)
- Waveguide Size WR34
- Waveguide Flange UC-1530/U
- Power (CW / Peak) 15 W / 30 W
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Packaging and Accessories
What's in a box
- AWC34EFK Device
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
