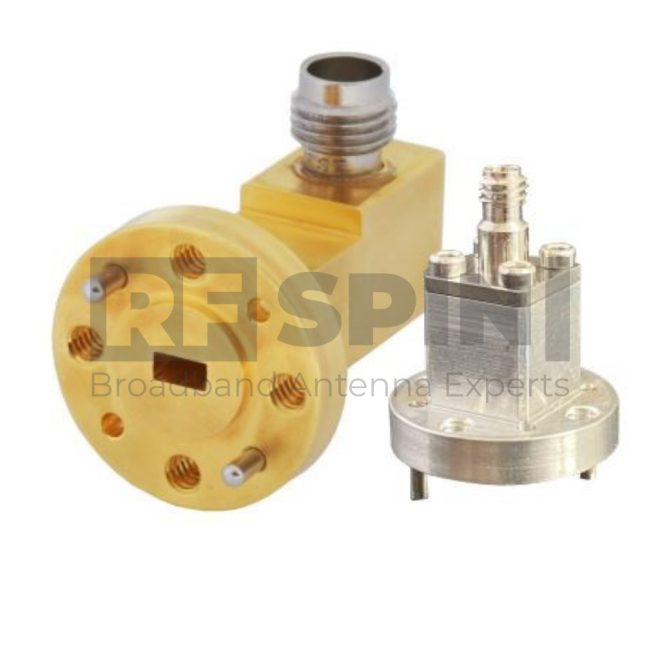

AWC22EFQ
Waveguide to Coax Adapter
This Waveguide to Coax Adapter AWC22EFQ is manufactured with an end-launch design. RF SPIN is using only high-grade aluminum and design with the fewest components to ensure top quality and superb performance. This AWC22EFQ has waveguide size WR-22 and flange. Using a great quality 2.40mm female connector that is 50 Ohm is a matter of course.
Waveguide to Coax Adapter covers a frequency band from 33 GHz up to 50 GHz ensuring the extra performance of VSWR lower than 1.3 and low insertion loss.
Availability: Most products are on stock. Please contact us for more information or large quantity orders.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
- High quality 2.40mm type coaxial connector
Product Packaging Includes
- Waveguide to Coax Adapter
Product Parameters
Product identification
- Product Name AWC22EFQ
- Product Category Waveguide to Coax Adapter
Electrical specifications
- Frequency Range 33 GHz – 50 GHz
- VSWR (max.) 1.30
- VSWR (avg.) 1.20
- Impedance 50 Ohm
- Insertion Loss (max.) 0.6 dB
- Connector 2.40mm (female)
- Waveguide Size WR22
- Waveguide Flange UG-383/U
- Power (CW / Peak) 10 W / 20 W
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Packaging and Accessories
What's in a box
- AWC22EFQ Device
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
