        AWC19FV

        Waveguide to Coax Adapter

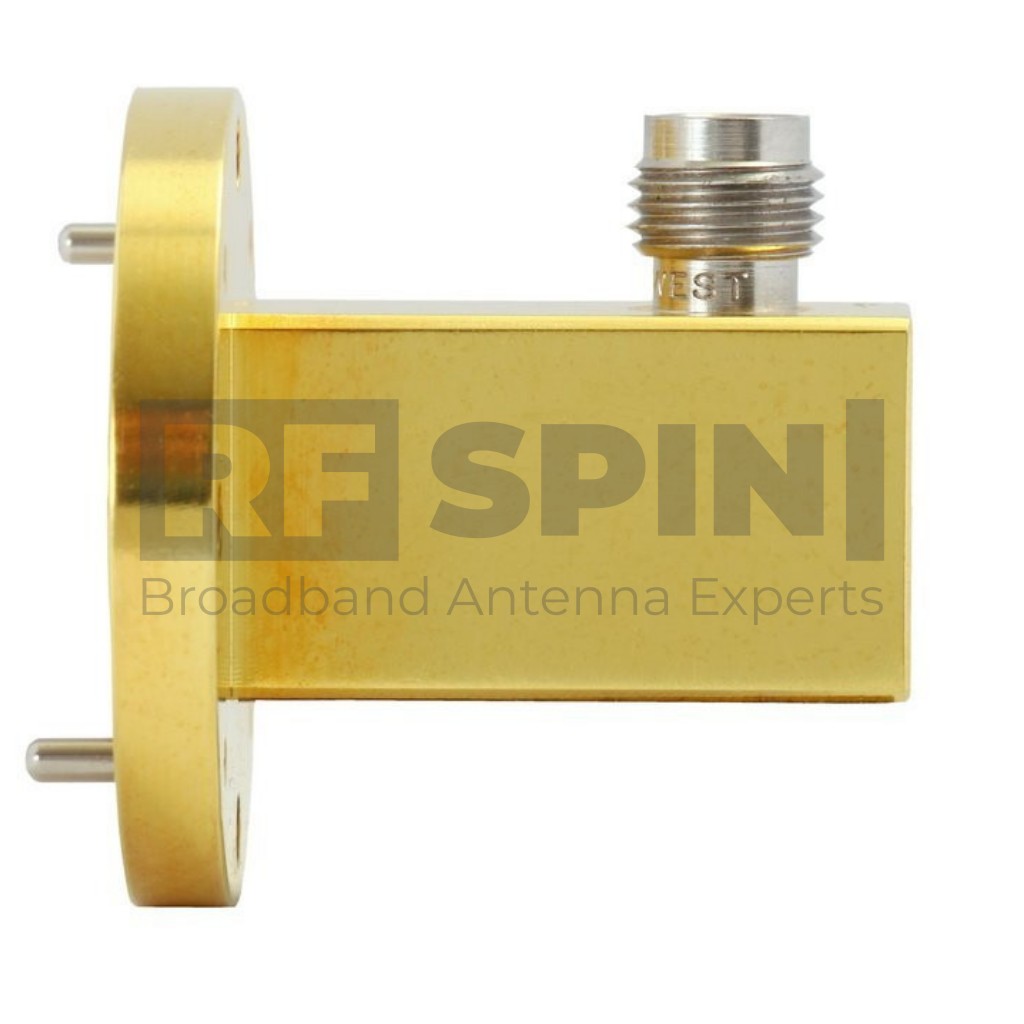

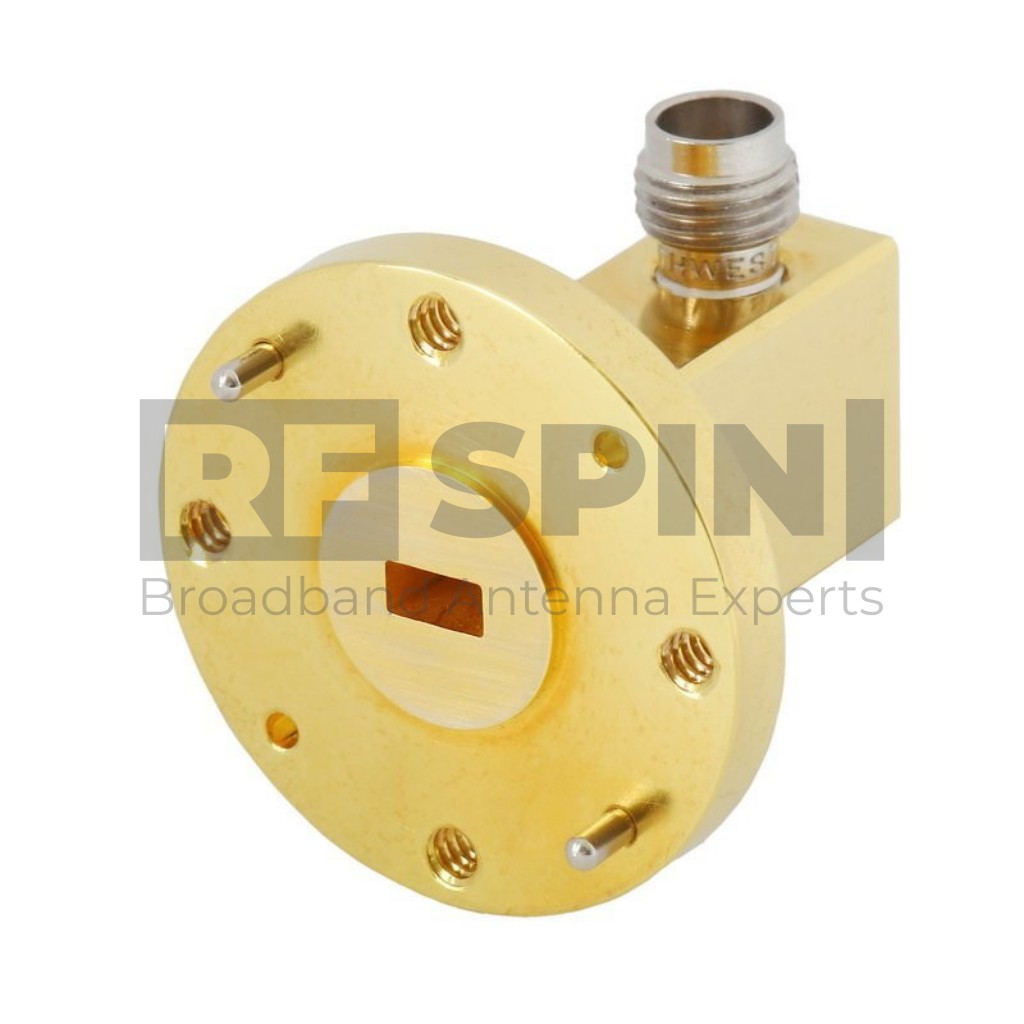

        This Waveguide to Coax Adapter AWC19FV is manufactured with a right-angle design. RF SPIN is using only high-grade aluminum and design with the fewest components to ensure top quality and superb performance. This AWC19FV has waveguide size WR-19 and flange. Using a great quality 1.85mm female connector that is 50 Ohm is a matter of course.

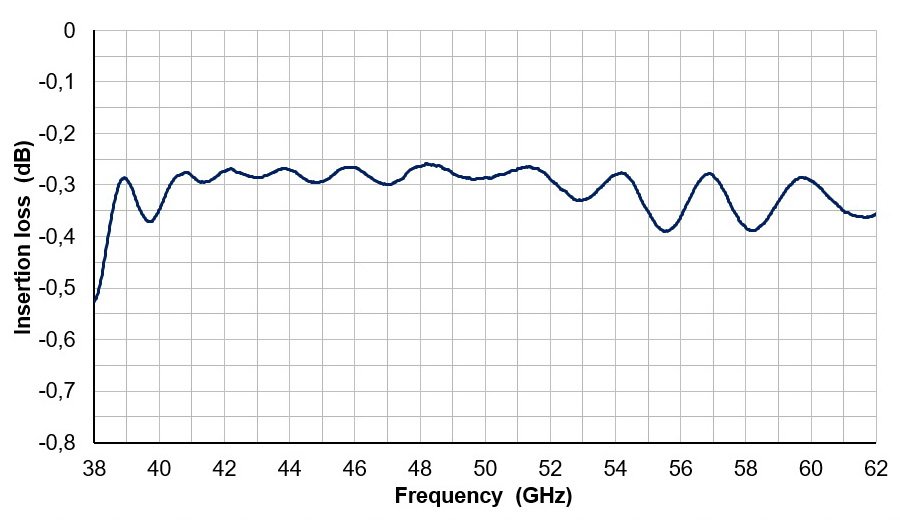

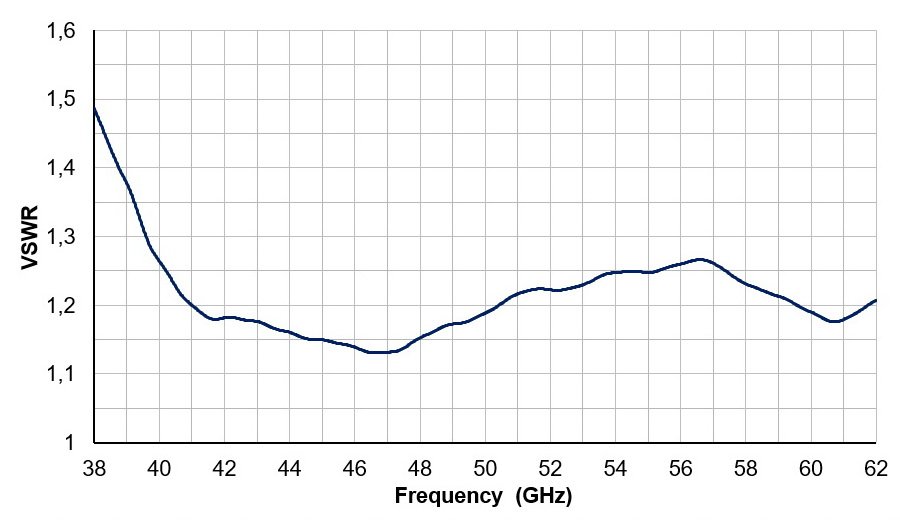

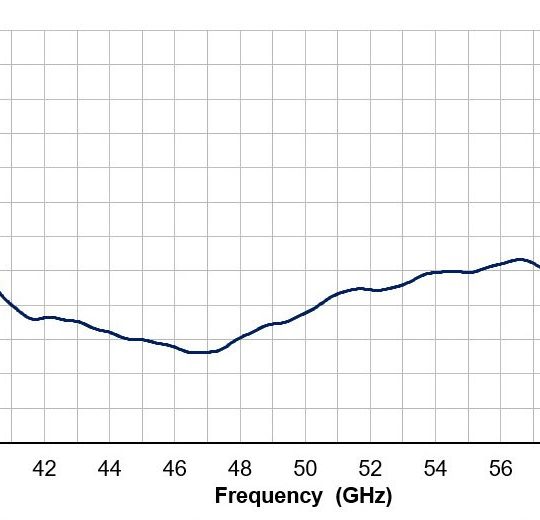

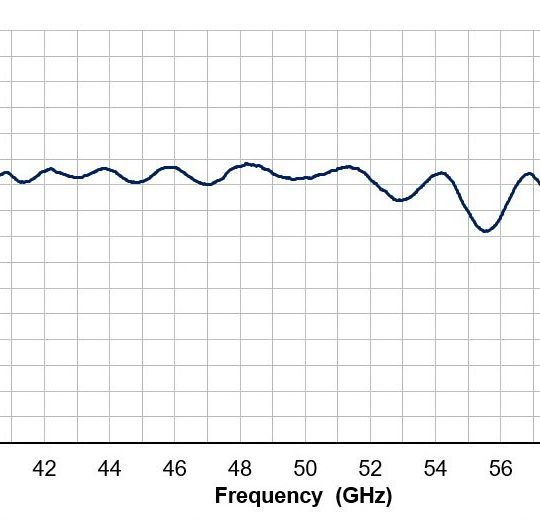

        Waveguide to Coax Adapter has a frequency band from 40 GHz up to 60 GHz ensuring the extra performance of VSWR lower than 1.35 and low insertion loss below 0.4 dB.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Gold plated coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality 1.85mm type coaxial connector

        Product Packaging Includes

        • Waveguide to Coax Adapter

        Product Parameters

        Product identification

        • Product Name AWC19FV
        • Product Category Waveguide to Coax Adapter

        Electrical specifications

        • Frequency Range 40 GHz – 60 GHz
        • VSWR (max.) 1.35
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.4 dB
        • Connector 1.85mm (female)
        • Waveguide Size WR19
        • Waveguide Flange UG-383/U-Mod
        • Power (CW / Peak) 5 W / 10 W

        Physical specifications

        • Width 28.7 mm (1.130 in)
        • Height 28.7 mm (1.130 in)
        • Depth 27.8 mm (1.094 in)
        • Weight 0.047 kg (0.104 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

        Typical parameters

        Packaging and Accessories

        What's in a box

        • AWC19FV Device
        • Factory calibration certificate
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories
