        RF SPIN

        Broadband Antenna Solutions

        AWC15FV

        Waveguide to Coax Adapter

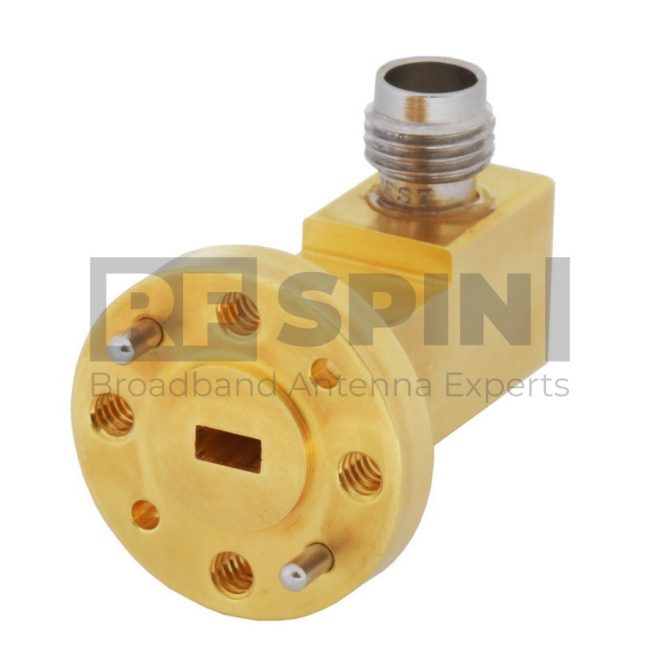

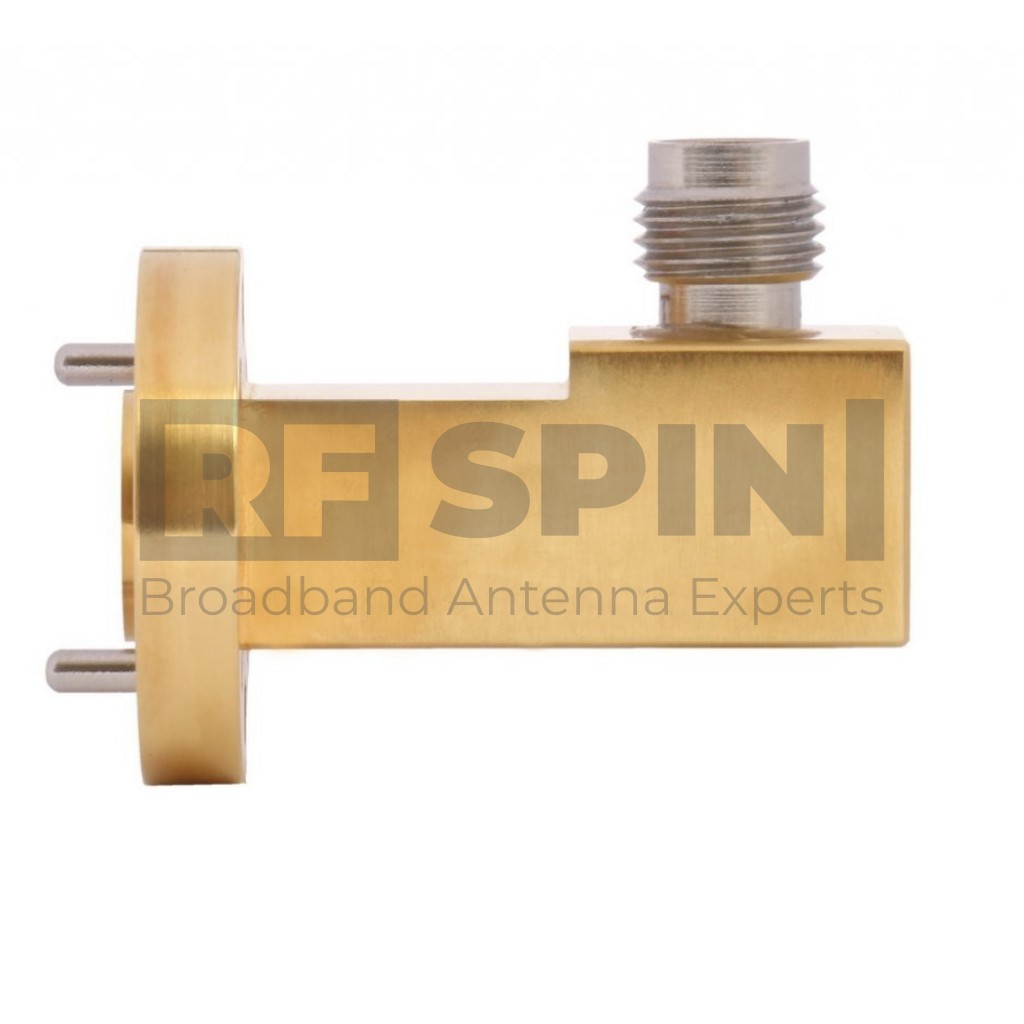

        This Waveguide to Coax Adapter AWC15FV is manufactured with a right-angle design. RF SPIN uses only high-grade aluminum and designed with the fewest components to ensure top quality and superb performance. This AWC15FV has waveguide size WR-15 and flange. Using a great quality 1.85mm female connector that is 50 Ohm is a matter of course.

        Waveguide to Coax Adapter has a frequency band from 50 GHz up to 67 GHz ensuring the extra performance of VSWR lower than 1.4 and low insertion loss below 0.6 dB.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Gold plated coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality 1.85mm type coaxial connector

        Product Packaging Includes

        • Waveguide to Coax Adapter

        Product Parameters

        Product identification

        • Product Name AWC15FV
        • Product Category Waveguide to Coax Adapter

        Electrical specifications

        • Frequency Range 50 GHz – 67 GHz
        • VSWR (max.) 1.4
        • VSWR (avg.) 1.25
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.6 dB
        • Connector 1.85mm (female)
        • Waveguide Size WR15
        • Waveguide Flange UG-385/U
        • Power (CW / Peak) 5 W / 10 W

        Physical specifications

        • Width 19.1 mm (0.752 in)
        • Height 19.1 mm (0.752 in)
        • Depth 27.9 mm (1.098 in)
        • Weight 0.027 kg (0.060 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

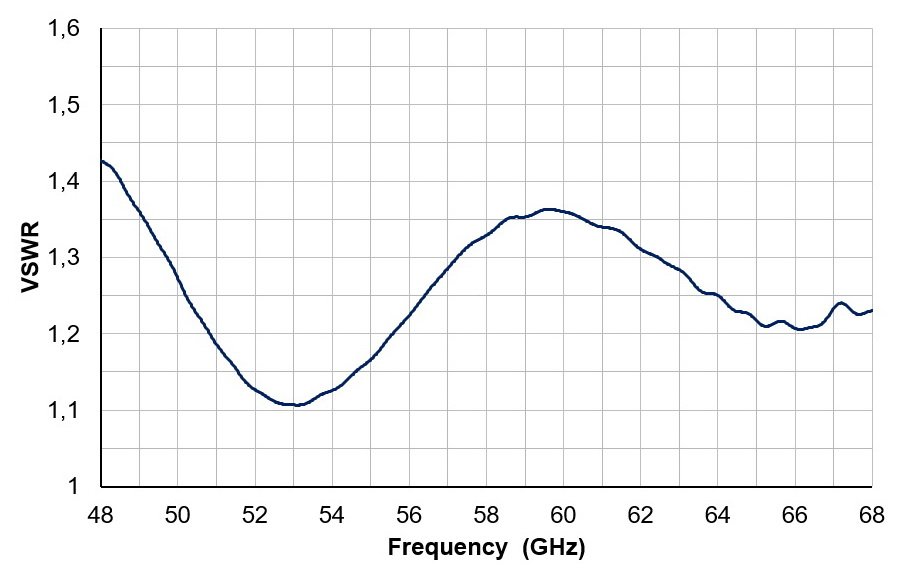

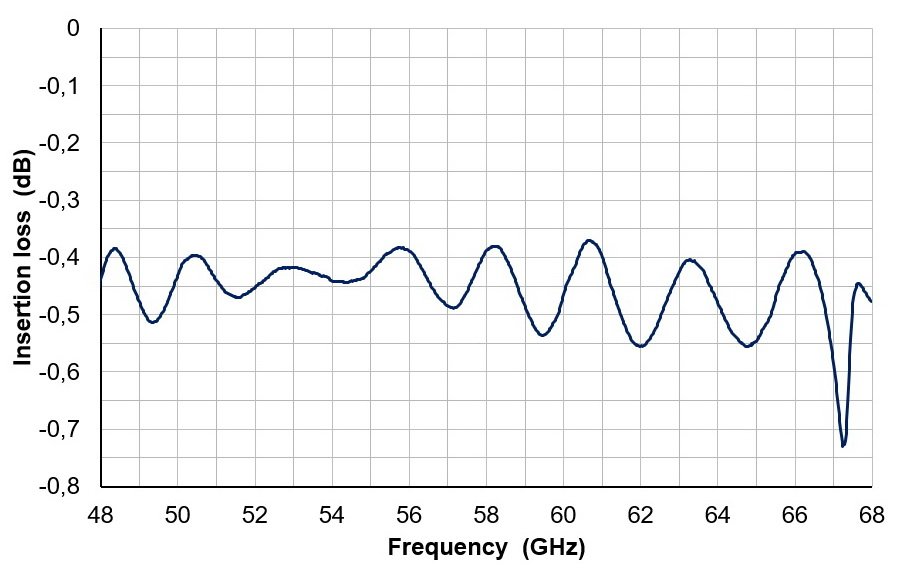

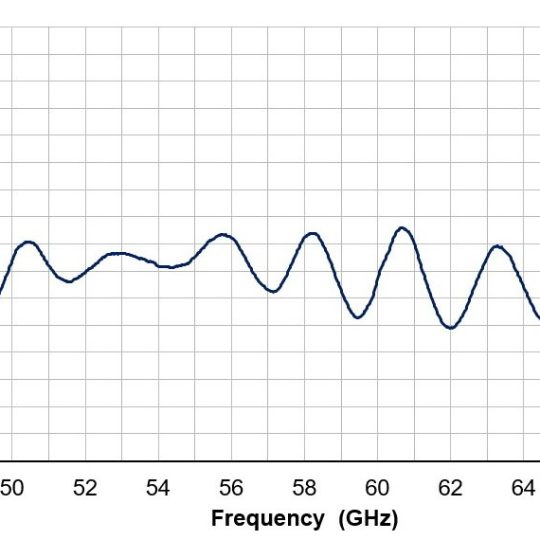

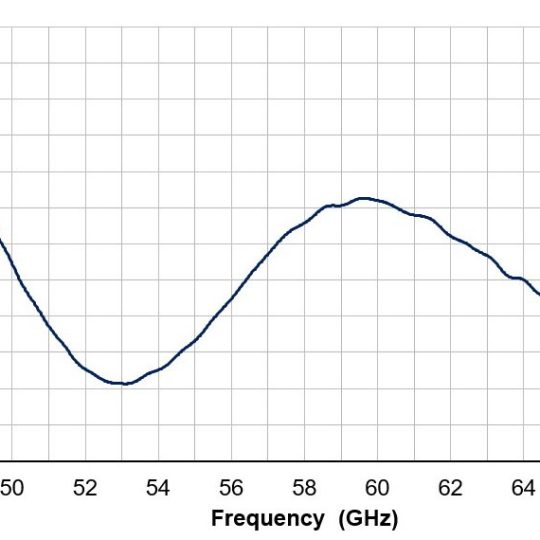

        Typical parameters

        Packaging and Accessories

        What's in a box

        • AWC15FV Device
        • Factory calibration certificate
        • QR code accessing online portal

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
