AWC137EFS
Waveguide to Coax Adapter
online calibration protocol & dataset available

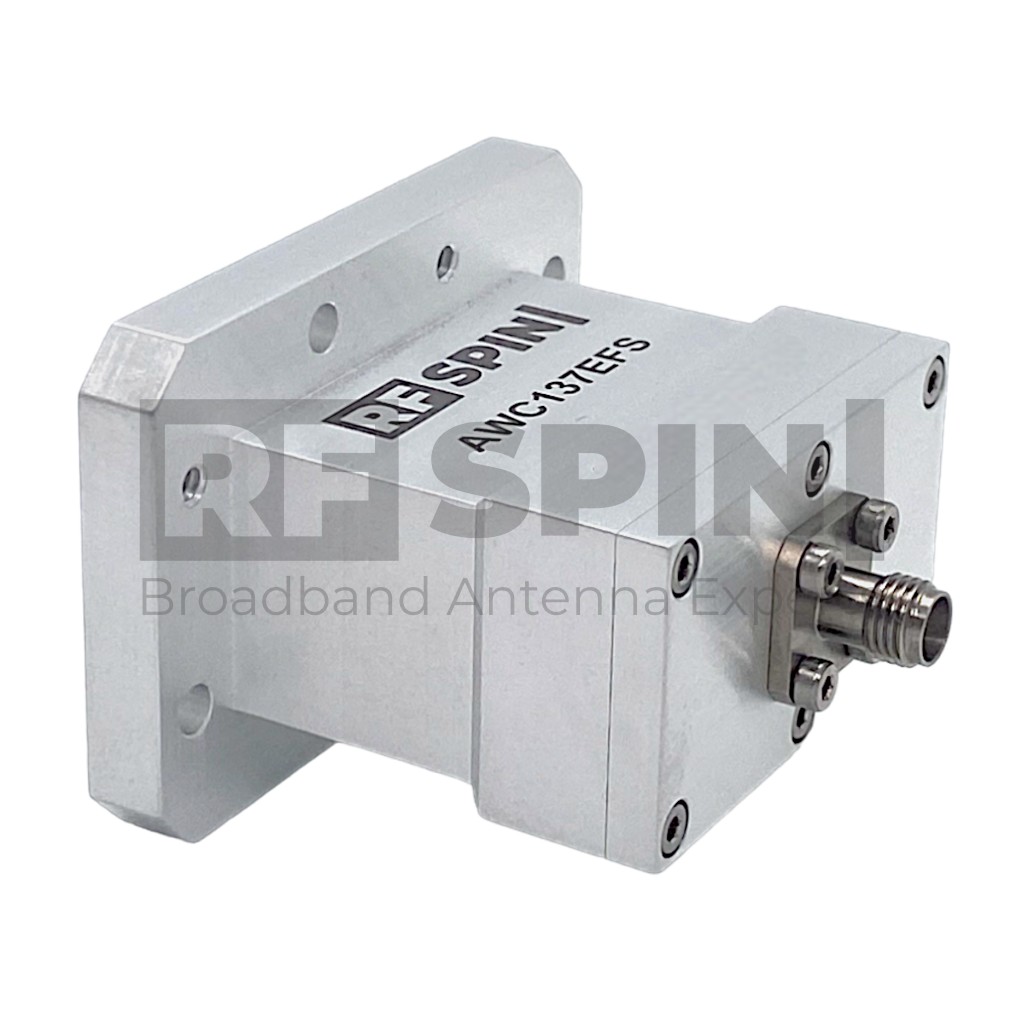

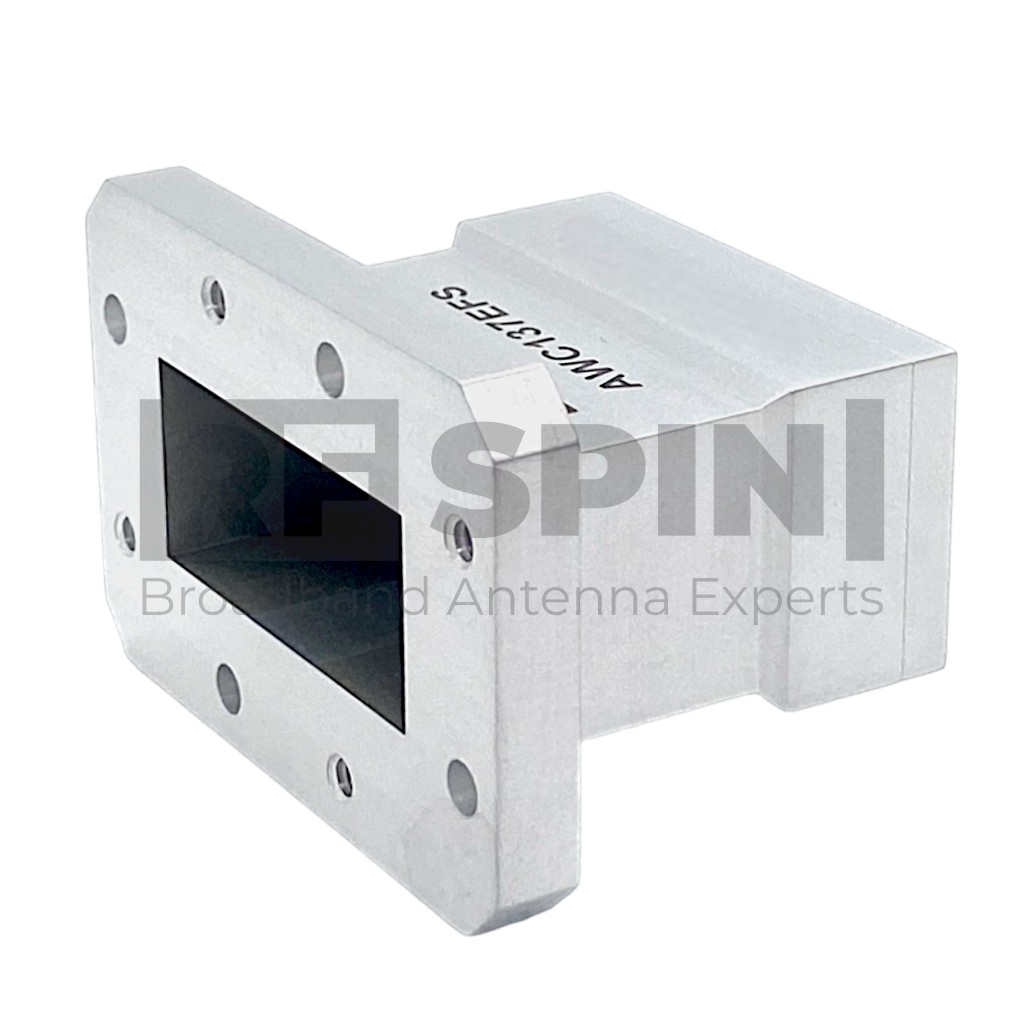

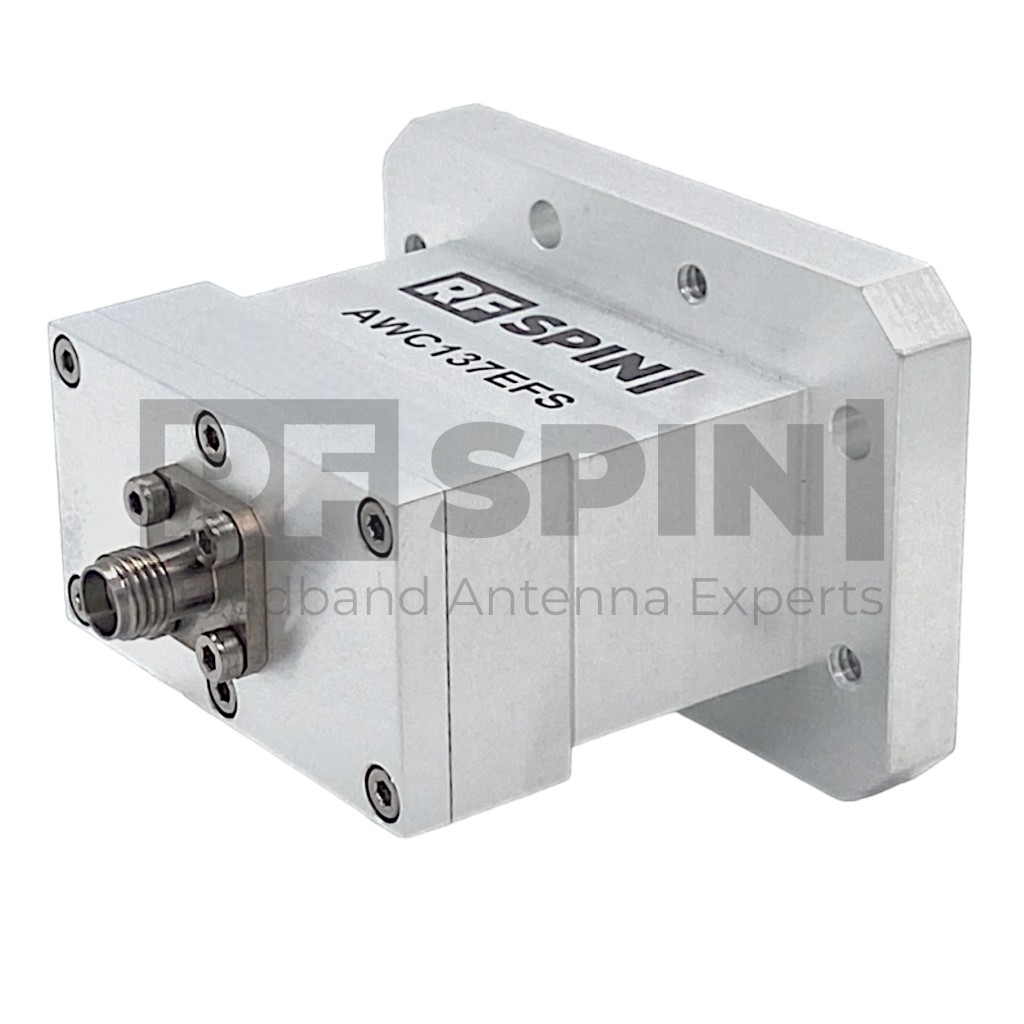

This Waveguide to Coax Adapter AWC137EFS is manufactured with an end-launch design. RF SPIN uses only high-grade aluminum and is designed with the fewest components to ensure top quality and superb performance. This AWC137EFS has waveguide size WR-137 and flange. Using a great quality SMA female connector that is 50 Ohm is a matter of course.
Waveguide to Coax Adapter covers a frequency band from 5.8 GHz up to 8.2 GHz ensuring the extra performance of VSWR lower than 1.25 and low insertion loss.
Frequency Range
5.8 GHz – 8.2 GHz
VSWR (avg.)
1.14
Impedance
50 Ohm
Connector
SMA (female)
Power (CW / Peak)
50 W / 100 W
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- High quality SMA type coaxial connector
Product Packaging Includes
- Waveguide to Coax Adapter
Product Parameters
Product identification
- Product Name AWC137EFS
- Product Category Waveguide to Coax Adapter
Electrical specifications
- Frequency Range 5.8 GHz – 8.2 GHz
- VSWR (max.) 1.25
- VSWR (avg.) 1.14
- Impedance 50 Ohm
- Insertion Loss (max.) 0.6 dB
- Connector SMA (female)
- Power (CW / Peak) 50 W / 100 W
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Packaging and Accessories
What's in a box
- AWC137EFS Device
Accessories
- Standard mounting flange
Custom services
- Custom calibration data
