Waveguide to Coax Adapter
online calibration protocol & dataset available

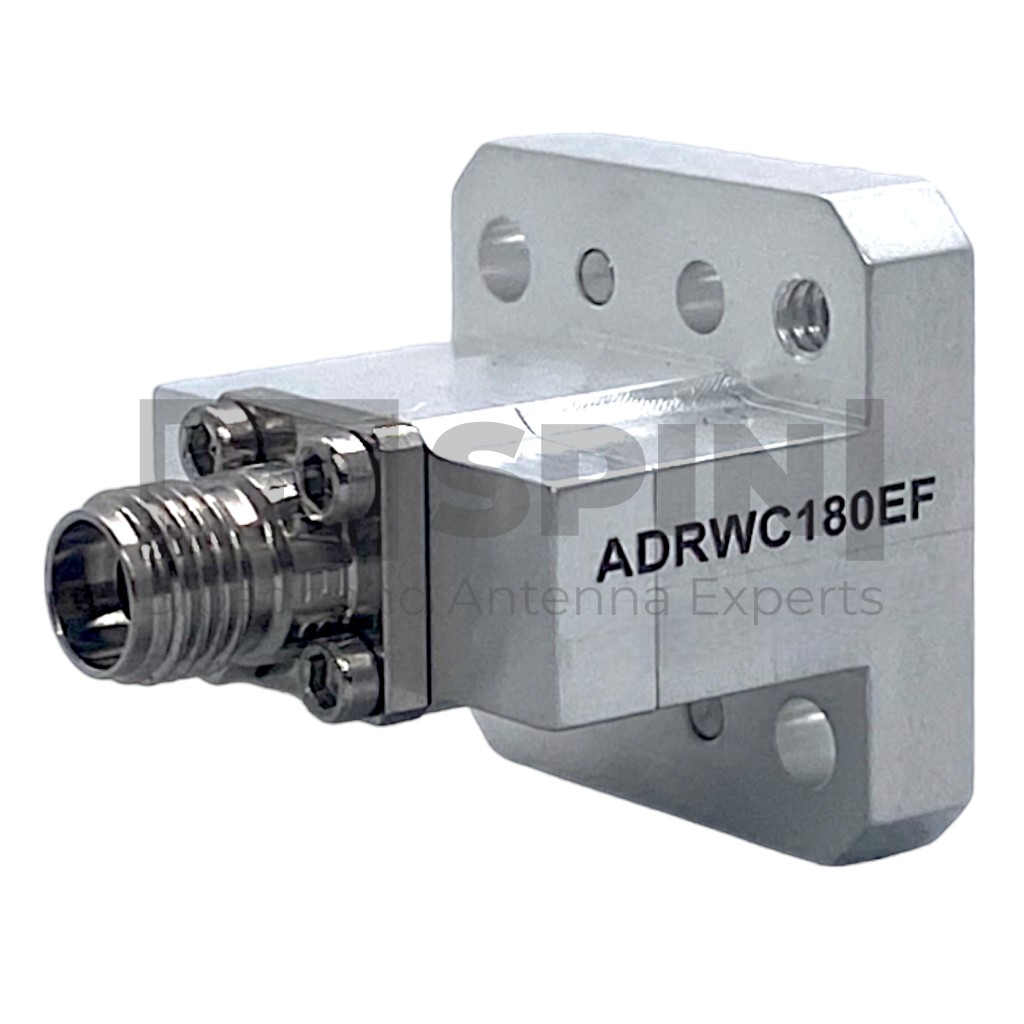

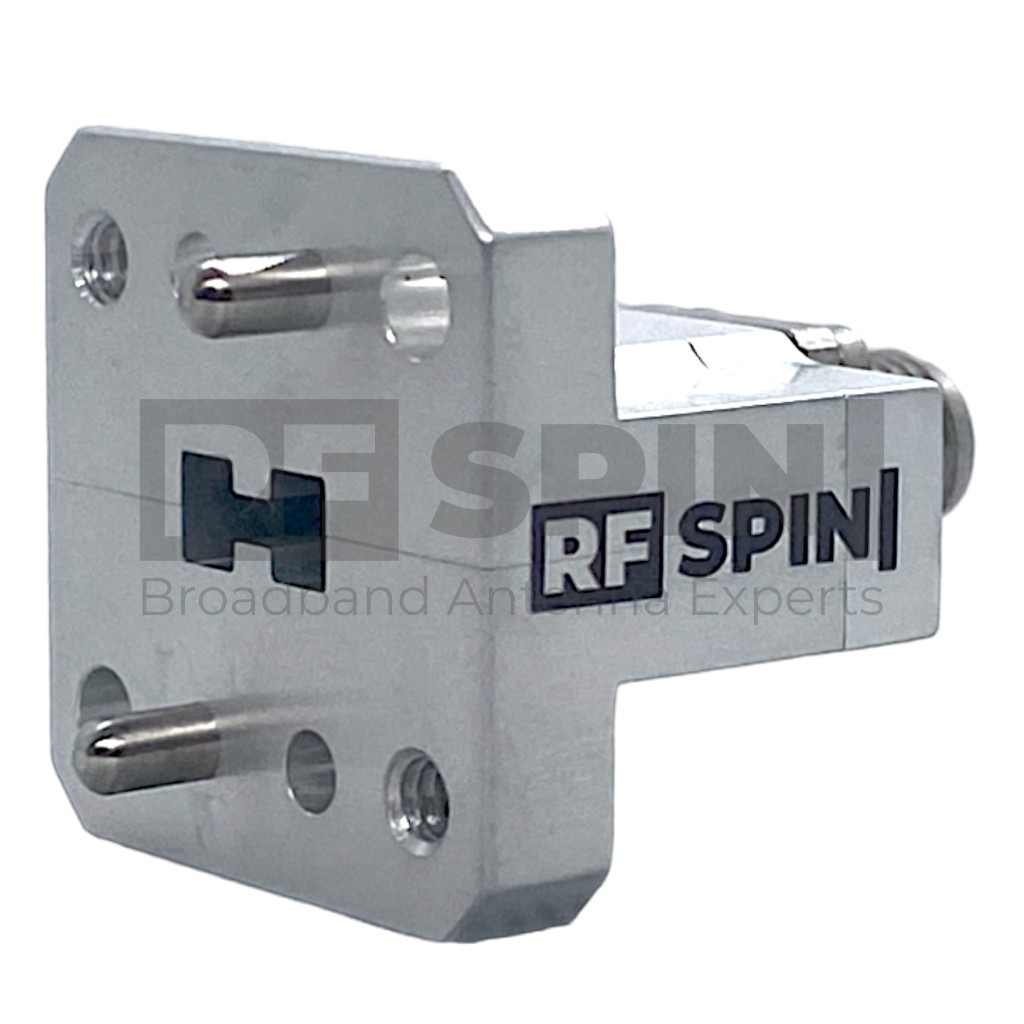

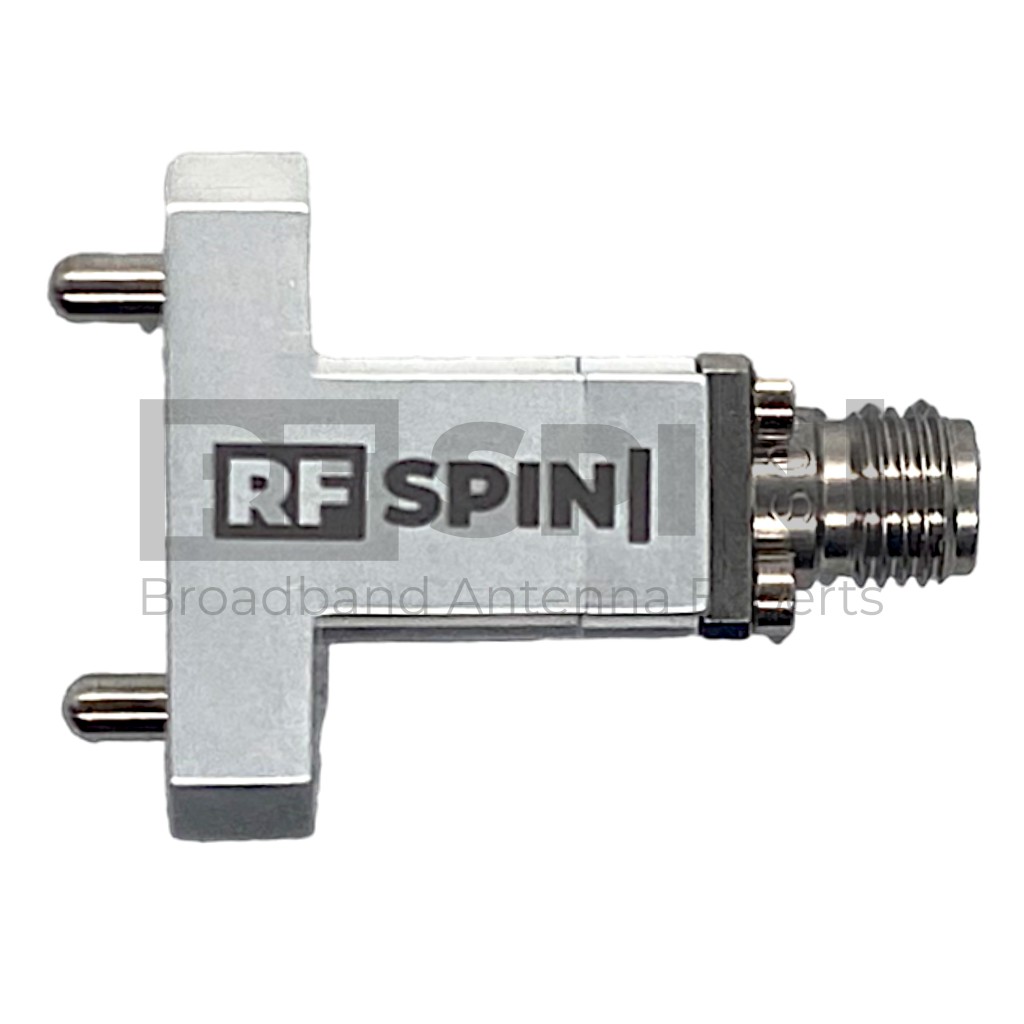

This Double Ridged Waveguide to Coax Adapter ADRWC180 is manufactured with an end-launch design. This adapter has waveguide size WRD180 and flange and using a great quality 2.92mm female connector.
Double Ridged Waveguide to Coax Adapter has a frequency band from 18 GHz up to 40 GHz ensuring the extra performance of VSWR and low insertion loss.
Frequency Range
18 GHz – 40 GHz
Connector
K (female)
Polarization
Linear
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- High quality 2.92mm type coaxial connector
- Manufactured using a high grade aluminum alloy
- Extremely durable
Product Packaging Includes
- Waveguide to Coax Adapter
Product Parameters
Product identification
- Product Name ADRWC180EF
- Product Category Waveguide to Coax Adapter
Electrical specifications
- Frequency Range 18 GHz – 40 GHz
- Connector K (female)
- Waveguide Size WRD180
- Waveguide Flange FPWRD180C24
- Polarization Linear
Physical specifications
- Width 22.4 mm (0.882 in)
- Height 17.5 mm (0.689 in)
- Depth 22.4 mm (0.882 in)
Mechanical Drawings
Antenna
Packaging and Accessories
What's in a box
- ADRWC180EF Device
Accessories
- Standard mounting flange
Custom services
- Custom calibration data
